CAT5e and CAT6 (1000BaseT) Ethernet speed
Space and cost saving
IP68 rating
In accordance with IEC/EN 60950-22
Plastic: for anti UV light & UL 94V-0 for low flammability rating
Packing: excellent in tensile strength and elongation ability
10 cm (Special cable length can be ordered when ordering in volume)
Plastic housing: Engineering Thermoplastic, UL 746C (f1 grade)
Contact pins: Phosphor Bronze
Gasket: Silicone, UL50E/UL157 Multiple cable lengths Options RJ45 UTP female connector for chassis mounting.

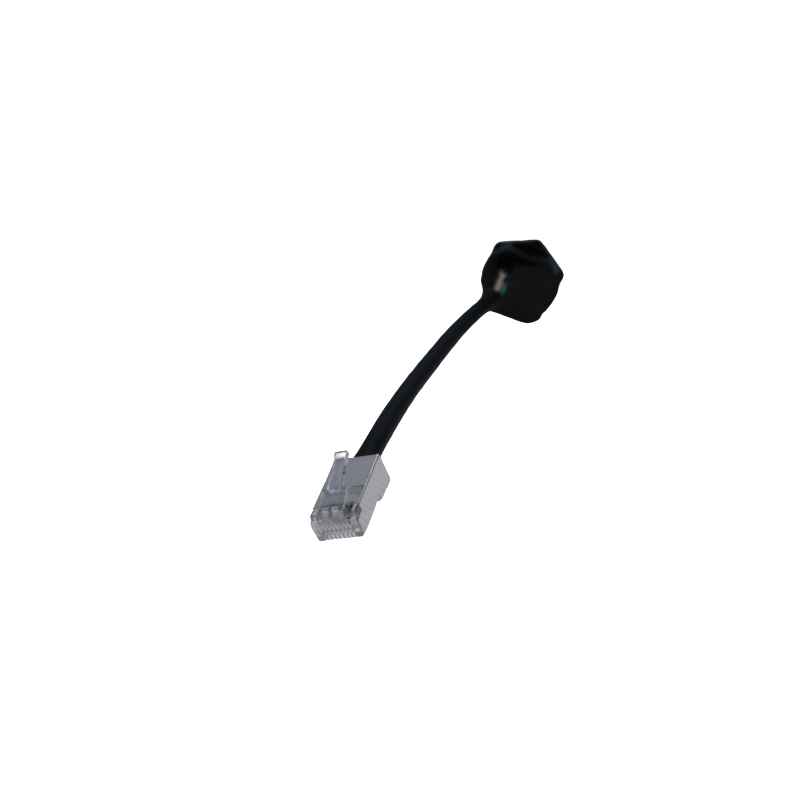

10 cm UTP cable with RJ45 connector
Acquisition waterproof cap for female connector RJ45WP-P

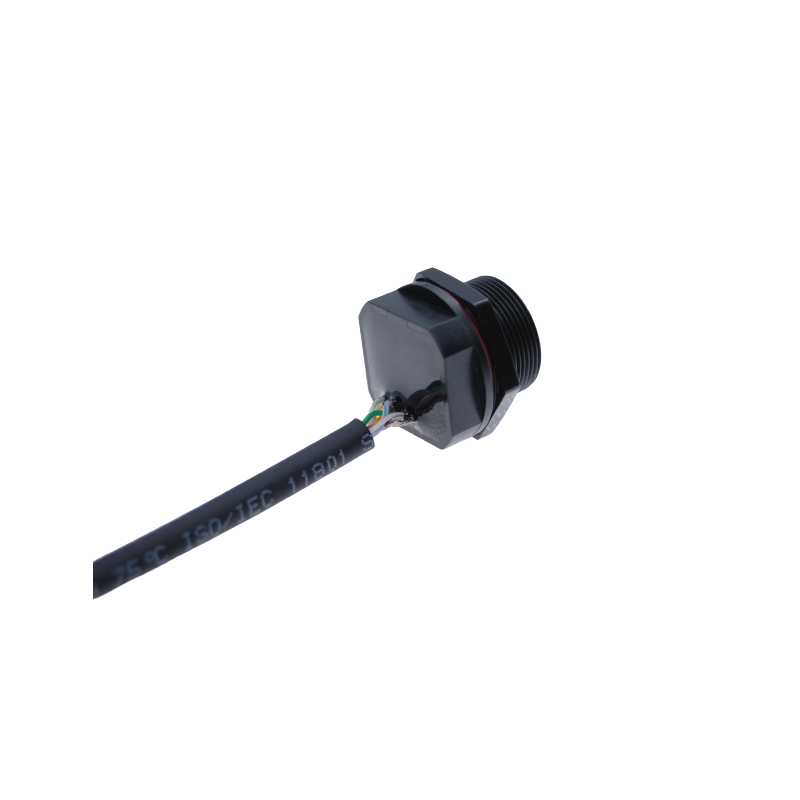

Waterproof back
Thread: (13/16"-UNEF28)

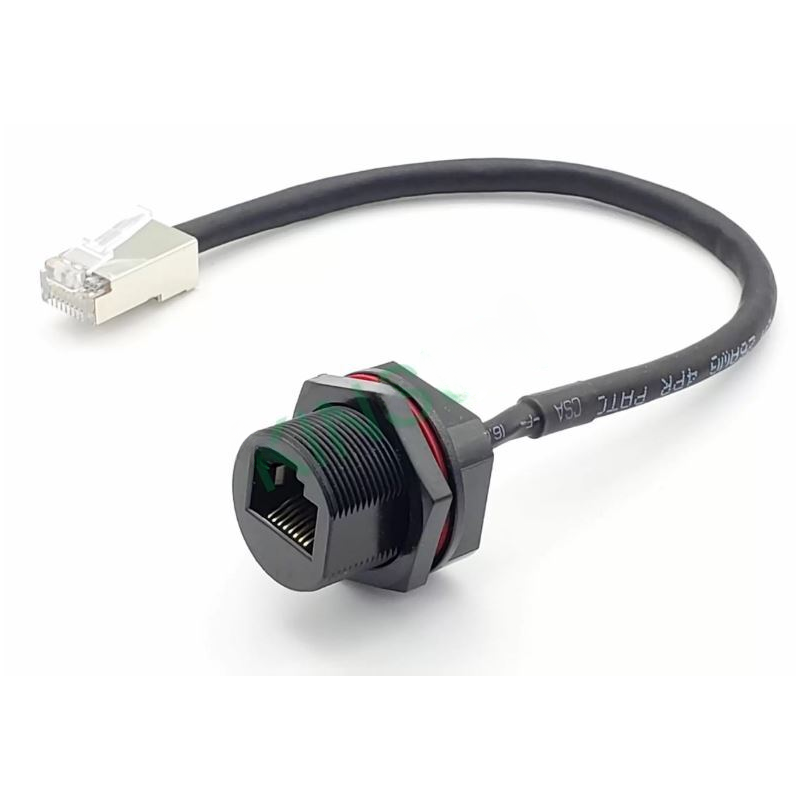

Waterproof RJ45 Ethernet connector to RJ45 connector cable.

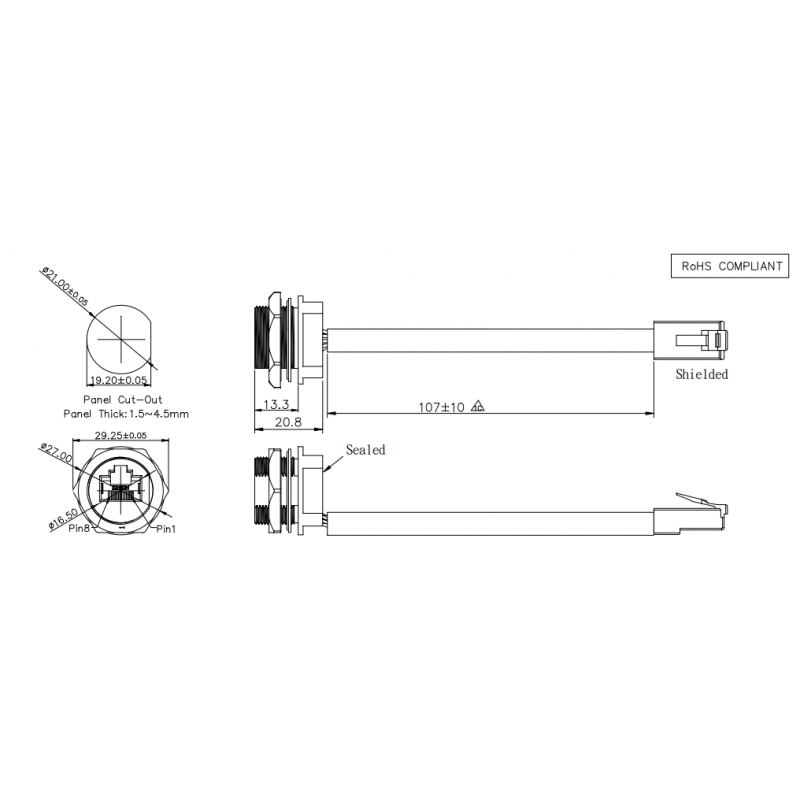

The waterproof RJ45 plug to RJ45 plug cable is suitable for multiple outdoor applications such as outdoor TV billboards, gateways, video surveillance equipment and markers that can stand in harsh environments. The connector has a small panel cutout design of Ø21mm, making it perfect when it comes to miniaturization of product design.
INQUIRE NOW
There are three mating options for the waterproof RJ45 Jack. The first is the waterproof cap. The second is the RJ Jack cable gland. The third is the RJ Jack Molding Cable. When connected, the connection system can meet IP68.
The IP68 Waterproof RJ45 Jack to RJ45 Plug Cable can meet CAT5e and CAT6 or up to 1000BaseT network transmission speed. Using the Shielded Gound design, it helps to prevent the EMI effect.
This series of products comply with IEC/EN 60950-22. With UL746C (F1 grade) and UL 94V0, the PC plastic material gives the connectors good UV resistance and low flammability. In addition, the sealing gasket with UL50E/UL157 is excellent in tensile strength and elongation. To ensure the waterproof IP68 rating, we perform an air-seal test for each piece before shipping to customers.
We have a long experience in designing waterproof connectors, we can promise that products will be delivered to customers on time with fine quality. If you have any questions about our IP68 Waterproof RJ45 Jack to RJ45 Connector Cable, please feel free to contact us!
K-USB-WATER-3M-M fits K-USB3-WATER-S-3M chassis connector
Waterproof chassis jack with RJ45 UTP F/F
Connector with RJ45 female on both sides
with flange mounting
Inserting loss is max. 0.7DB
Flame Safe: UL94-V0
IP67 down to 1.5 meters under water
for Ø24mm - Flange 30 x 31 mm
with Snap lock
with waterproof hood in chain
PBT plastic house
Outdoor RJ45 coupler
RJ45 cables with bend relief:
It may be necessary to remove about 3mm of bend-relief
cables with extra shackle the trigger must often be removed
Page-wings at the release may have to be removed/minimized.
2 x RJ45 shielded she
IP68 waterproof
8PC8C
IP69K waterproof RJ45 connector for chassis mounting.
Anti-oxidation and anti-UV
Plastic housing: Technical thermoplastic. Fire protection according to UL 94V-0.
Contacts: Phosphor Bronze.
Surface treatment: Gold plating over nickel in contact.
Møttrik: Technical thermoplastic flammability class UL 94V-0
Gasket: silicone
Panel thickness: 1.5 ~ 2.5mm
