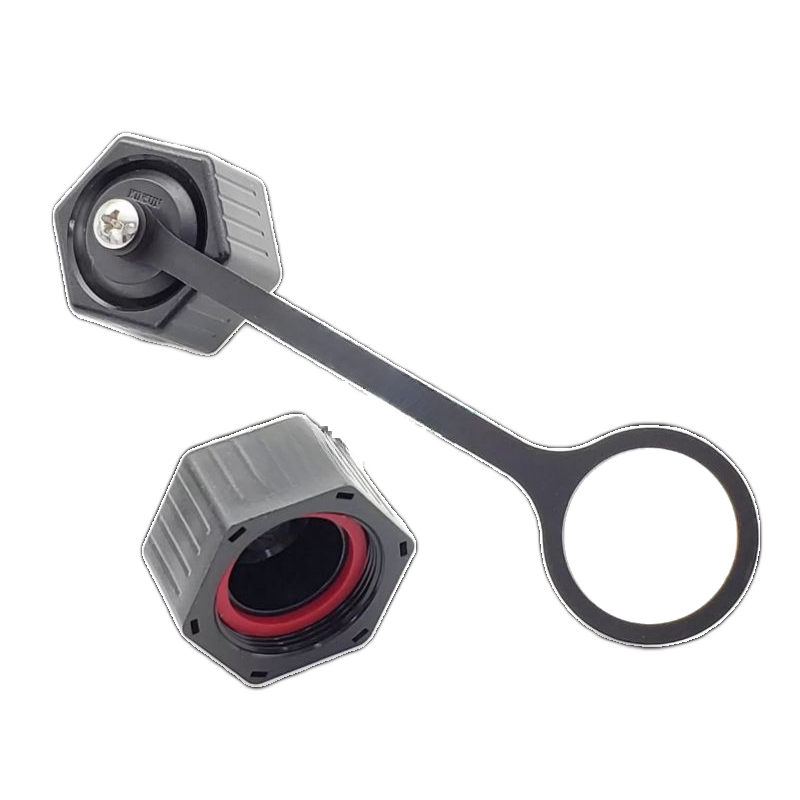

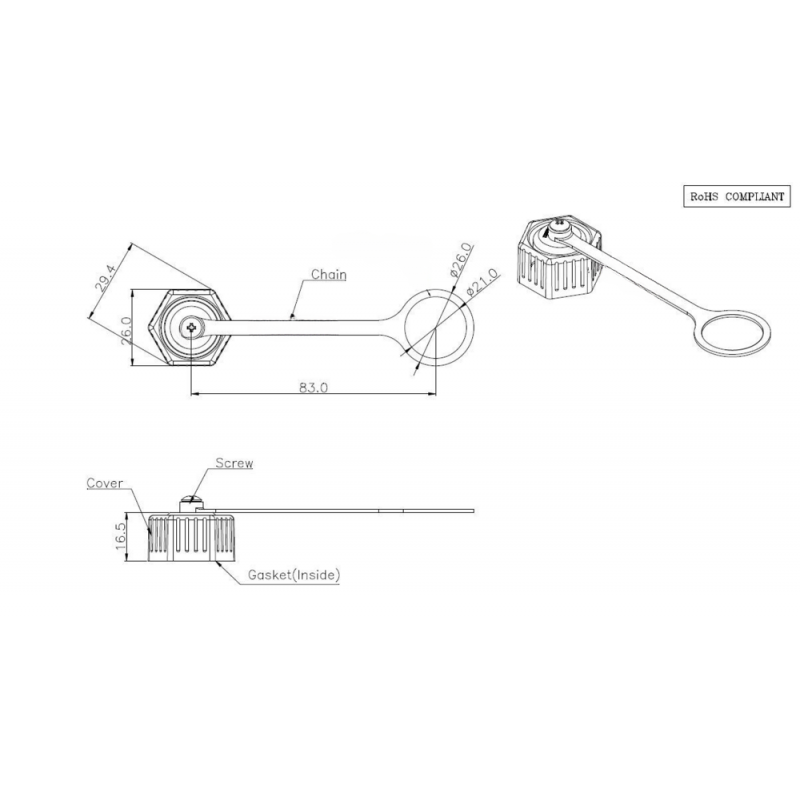

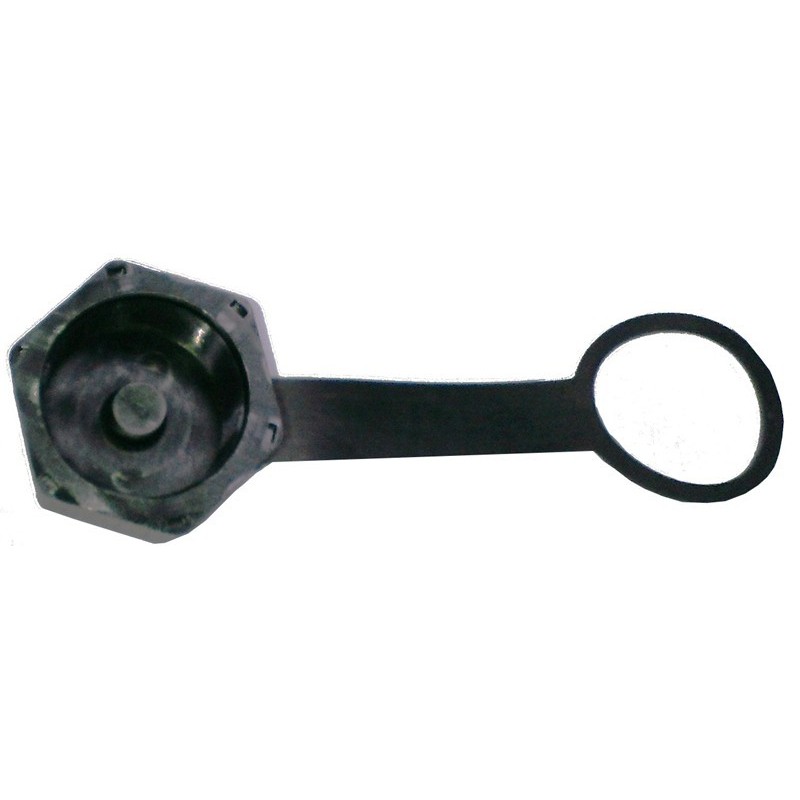

RJ45 waterproof plug for RJ45WP series

IP69K waterproof RJ45 connector for chassis mounting.
Anti-oxidation and anti-UV
Plastic housing: Technical thermoplastic. Fire protection according to UL 94V-0.
Contacts: Phosphor Bronze.
Surface treatment: Gold plating over nickel in contact.
Møttrik: Technical thermoplastic flammability class UL 94V-0
Gasket: silicone
Panel thickness: 1.5 ~ 2.5mm

Waterproof STP RJ45 set for chassis/panel and patch cable
Female through connector for panel/chassis mounting
Waterproof housing for patch cable with std. relief fitted.
Cable diameter: 5.5 to 7 mm
Hole size 25.7mm
IP67 sealed
UV protected and fireproof
For outdoor use
Suitable for industrial environment
Black

Cable connector for RJ45 chassis connector
For permanent installation of RJ45 cable in chassis connector.
Used for RJ45 patch cable with plug fitted

Waterproof RJ45 connector
RJ45 female female connector (through connector)
For panel mounting
20mm thread
IP67 sealed
Gold plated connectors
UV protected and fireproof, for outdoor use
Suitable for industrial environment
Black plastic
Note: Mount RJ45 pcs without pull/bend relief - there is no space in the plug

IP67 sealed USB 3.0 chassis connector

For outdoor chassis mounting

Only IP67 waterproof with cap attached

No counterparty

For regular USB cable

Hole in chassis: 24.2mm

Flat hole side: 24.5mm

Vandtæt plast-hus til RJ45 UTP kabel
Hus med snap-lås til RJ45 patch-kabel
Indsætningstab er maks. 0.7dB
Flammesikker: UL94-V0
IP67 tæt ned til 1.5 meter under vand
Til Ø24mm - chassis stik
Meget robust
Vandtæt hætte i kæde
PBT plastikhus

Waterproof chassis connector for LC single mode fiber cable
With LC female on both sides
with flange mounting
Inserting loss is max. 0.7dB
Flame Safe: UL94-V0
IP67 - to 1.5 meters under water
for hole diameter 24mm - Flange 30 x 31 mm
with Snap lock
with waterproof hood in chain
PBT plastic house

Set consisting of chassis and connector part and cap
Plug for cable mounting
Cap to chassis: 3.1 cm (outer disc)
Threaded plug: 3.1 cm (outer disc), 2 cm (inner circle)
Waterproof - IP68 tight
28mm hole in chassis
