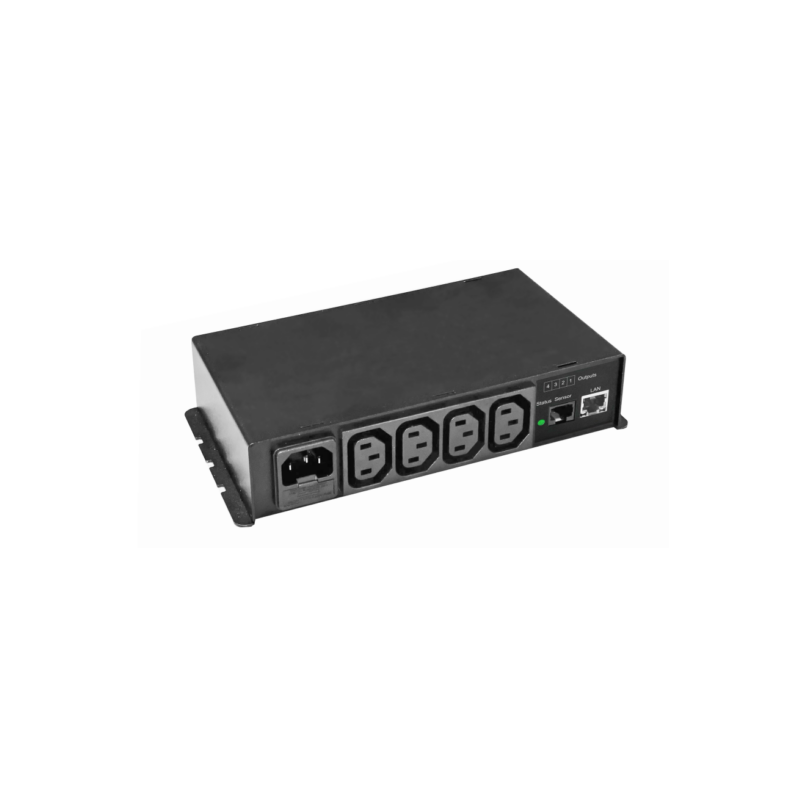

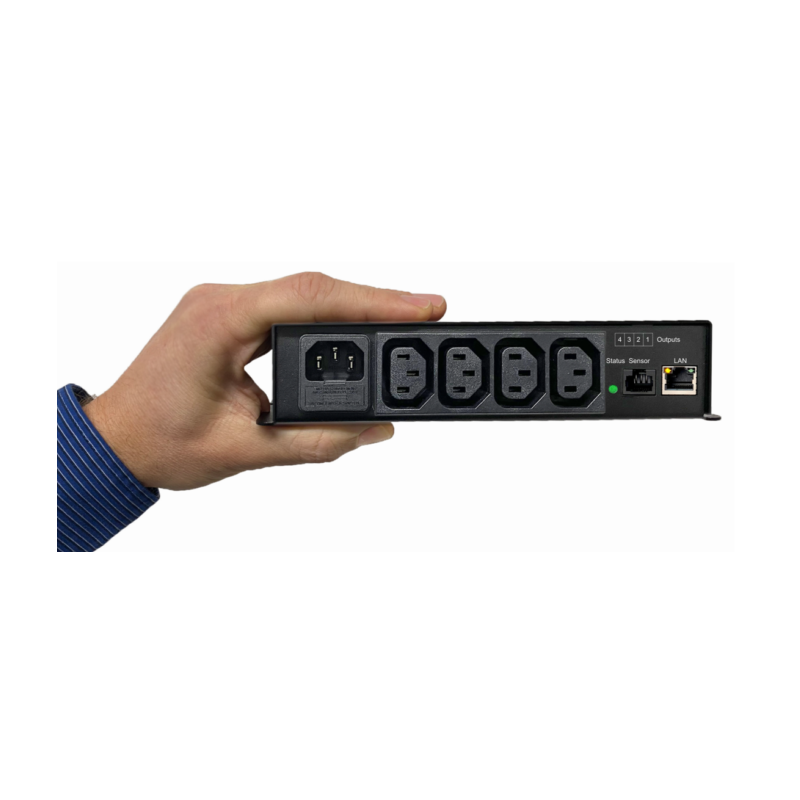

4 port PDU with port switching and power meter, watchdog, advanced features
4 port PDU with port switching and power meter, watchdog, advanced features
4 port PDU with port switching and power meter, watchdog, advanced features
Previous
Next
4 port PDU with port switching and power meter, watchdog, advanced features
4 port PDU with port switching and power meter, watchdog, advanced features
4 port PDU with port switching and power meter, watchdog, advanced features

4 port PDU with port switching and power meter, watchdog, API interfaces, IEC

4 port power rail with port ON/OFF

IEC connector - 1 x IEC14, 4 x IEC13

Max. 10Amp

With power measurement

With sensor input

RS232 interface

RJ45 for sensor

Power ports can be turned on and off when preset sensor thresholds are exceeded.

Precise current measurement of up to 4 electrical devices

Connection to plug-and-play sensors

Dimensions: 187 x 95 x 43 mm

Temperature: 0 to +50°C


3,066.00 kr
Excl. VAT
Quantity
On the way in
ADD TO CART
Product number NPOWER4-11411
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Each power port can be turned on and off via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT/MQTTS and serial interface.

Programmable power-on/power-off sequences for remote reboot.

Self-healing function thanks to 4-channel watchdog:

Each power port can be assigned its own watchdog (ICMP/TCP), which initiates a fully automatic restart if necessary.

Power-on mode and power-on delay of up to 9999 seconds (166 minutes) can be adjusted individually for each output port after power failure.

Current peaks due to increased inrush currents are automatically prevented by sequential switching with a latency of 1 second.

Simple and quick installation, even in the smallest AV installation

Event and schedule-driven switching

Connection to plug-and-play sensors

Self-repairing function

Hybrid surge protection (SPD type 3)
