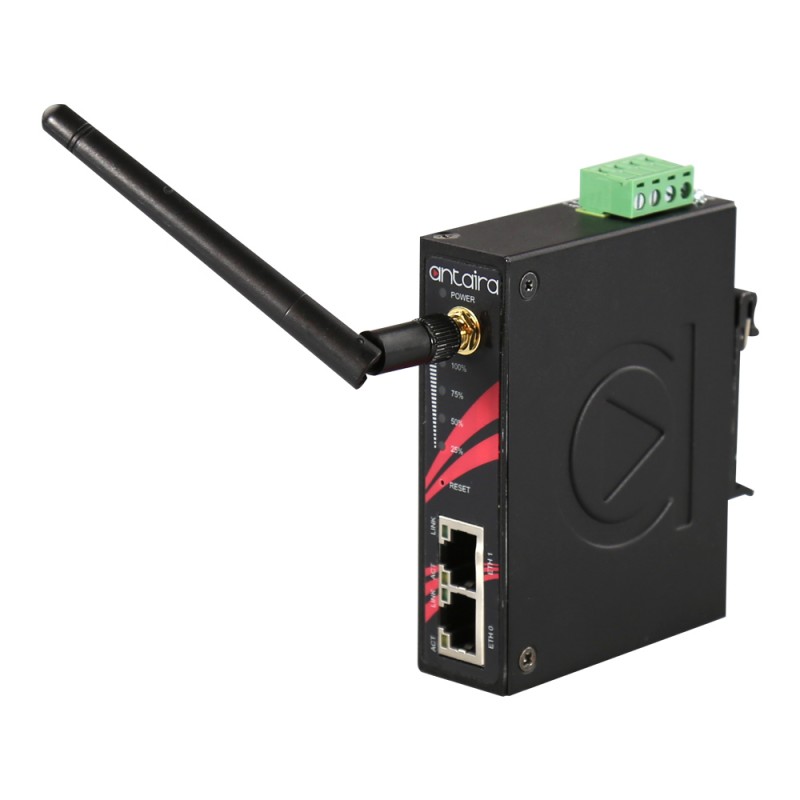

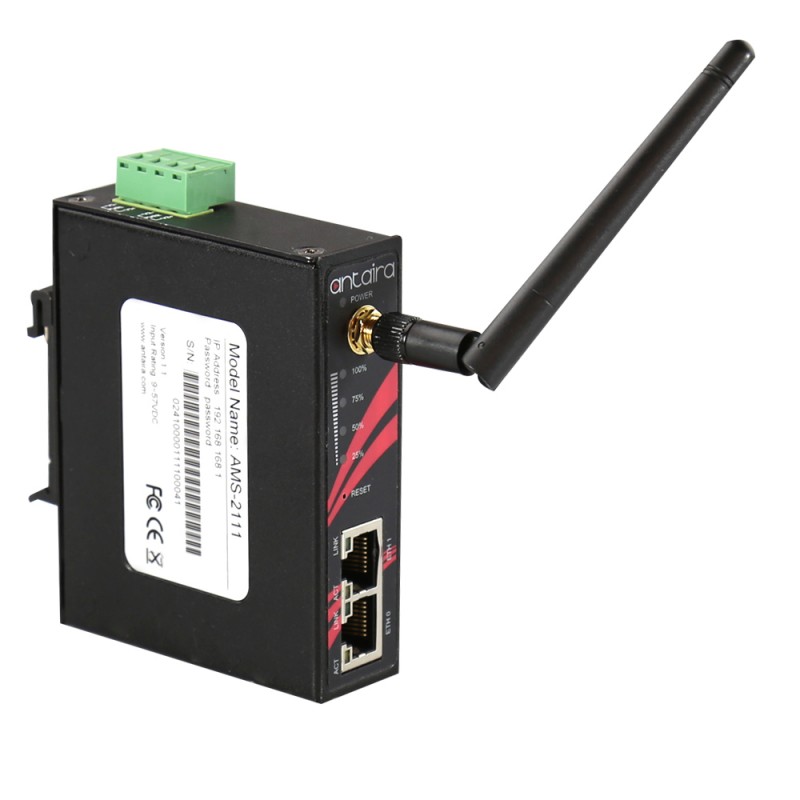

Wireless industrial WLAN up to 150MBps, 2.4GHz, 9-48V DC, extended operating temperature of -40ºC to 75ºC

WLAN up to 150MBps (Single radio 2.4GHz)

Industrial 1x1 SISO (Single Input Single Output)

IEEE 802.11 b/g/n

2*10/100Base-TX WAN/LAN Port

Chipset: Qualcomm/Atheros AR9331 SoC

Tx Power (EIRP) 21 dB for 2.4GHz

WPA, WPA2, TKIP, AES

Power Input: 9~48VDC in 4-Pin Terminal Block

Reverse Polarity Protection

IP30 Protection

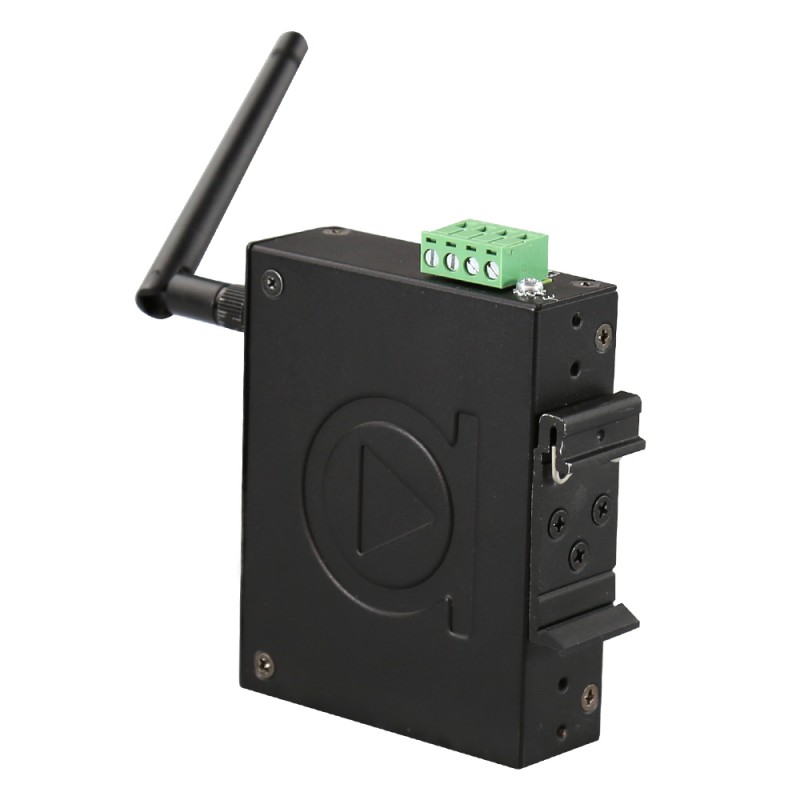

DIN-Rail and wall mounting

Operating temperature: -40° to 75°C

Weight: 1.0 lbs (approx. 1 kg)

Dimensions: 26 x 95 x 75 mm

$582.38
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number ANR-AMS-2111-T
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

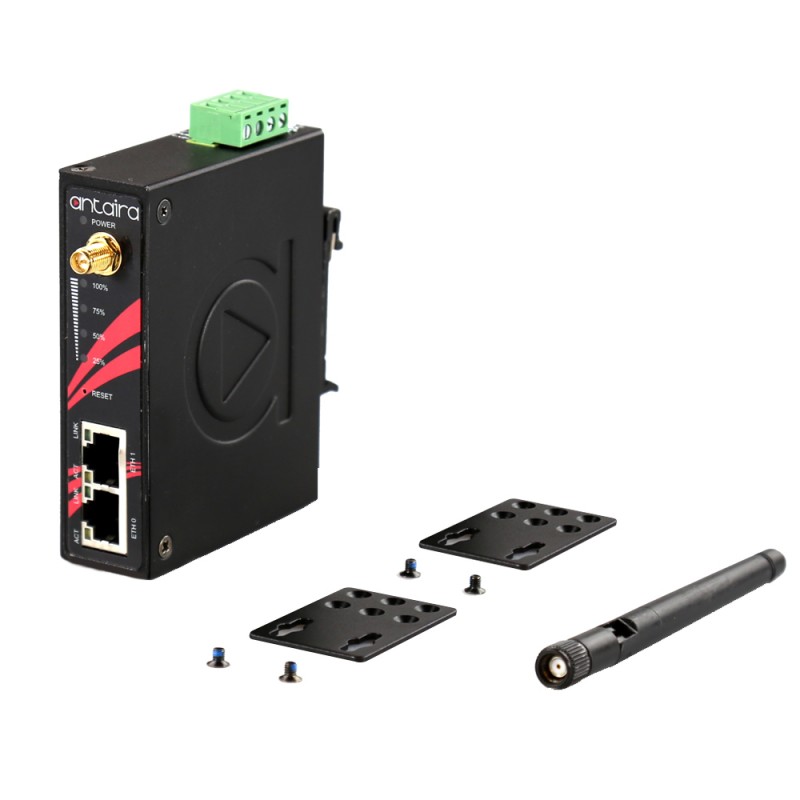

Antenne One External SMA Antenna: 3dBi for 2.4GHz (SISO)
Approval EMI, EMS, RF, RF Radiation Exposure, EN60950-1 CNS14336-1, RoHS Compliant
Certifications FCC, CE, NCC, RCM
Dimensioner 26 x 95 x 75 mm
I/O 2*10/100BasetT(X), auto negotiation speed, Full/Half Duplex Mode
IP-Tæthed IP30
Luftfugtighed 10% to 90%, (non-condensing)
Compositions Metal, IP30 protection
Montering DIN-Rail eller væg montering
Netværk US/TW: 2.412G~2.462GHz EU/AU/NZ: 2.412G~2.472GHz
Protokol IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP
Standarder IEEE 802.11 b/g/n IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet
Strømforbrug 2 Watts
Strømforsyning 9 to 48VDC redundant input
Weight ca 1 KG
WiFi sendeeffekt WPA, WPA2, TKIP, AES

ANR-AMS-2111-T With extended temperature is designed for industrial and enterprise wireless access applications. Embedded with Qualcomm/Atheros AR9331 chipset, it has good robustness, stability and wider network coverage with very low voltage input. Based on IEEE 802.11 b/g/n, it supports high-speed data transmission of up to 150Mbps.

The ANR-AMS-2111-T is capable of operating in various modes, making it suitable for a wide range of wireless applications, including remote deployments. The device also allows the user to position the wireless antenna in a better environment for improved wireless coverage and signal strength.
