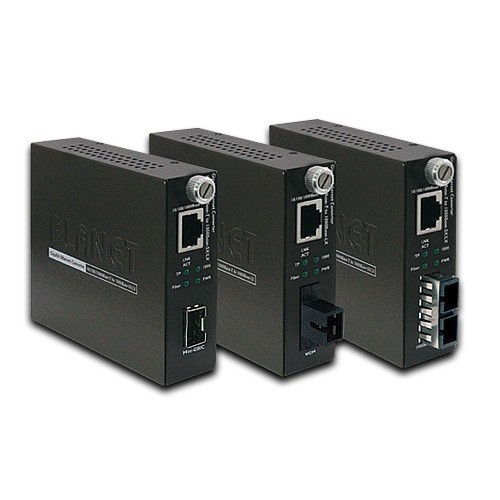

Fiber-Optic Networking for ISP, Enterprise, and Home PLANET GST-80x provides advanced media conversion technology -- 10/100/1000Base-T and 1000Base-SX/LX interfaces to fulfill different kinds of demands as the current network grows and expands. The GST-80x provides diverse fiber connect type options for different network applications. It is very flexible for the GST-80x to work as a standalone device or be installed in the central management media converter chassis for centralized management. When working with the management media converter chassis, the GST-80x is hot swappable to avoid network downtime. The ideal solution to building a network solution of FTTH (Fiber to the Home) or FTTC (Fiber to the Curb), and FTTB (Fiber to the Building) for ISPs, campuses and enterprises.
High quality 19" Rack-mountable chassis installation Supports up to 16 sixteen hot-swappable slide-in modular Media Converter Supports PLANET Fast Ethernet and Gigabit Ethernet Smart Media Converter series-FST-80x and FST-81x / GST-80x Two power slots on rear panel for redundant power support with options of 100~240V AC or -48V DC supplies Bay power isolation ensure each bay is electrically isolated from each other Up to two fans provided for better air-flow for system cooling One 10/100Mbps Fast Ethernet port and one RS-232 port for management Supports Auto-MDI / MDI-X for 10/100Base-TX port LED indicators for system, power and fan status EMI standards complies with FCC, CE class A
High Density Chassis for Multiple Converter Installation PLANET MC-1500R48 provides 15 slots for a wide range of media converter series. It allows the connectivity of up to 15 PLANET Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 Converters in one chassis. The 15 slots in the 19" rack save more space for fiber-optic wiring, simplifies the structure and eases the maintenance of media conversion. Plug and Play. Flexibility in installation and cost-effective scalable solution. With an independent power supply on each slot of the MC-1500R48, any converter is hot-swappable without causing an interruption to other converters. The media converters and power modules can be plugged and played anytime. Each bay of the media converter chassis can be populated with a media converter
Distance Extension with High Performance and Steady Network Communication PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance via fiber optic wire, in which the extended distance up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75°
PLANET IGTP-80xT Industrial Gigabit Media Converter series combines Ethernet media conversion (from 1000Base-X to 10/100/1000Base-T) with 802.3at High Power over Ethernet (PoE) injector delivered in an IP30 rugged strong case. Designed for network equipment requiring sufficient and reliable power input, the IGTP-80xT series supports up to 30 watts of power output and data transmission both delivered to remote powered devices over a single Ethernet cable. Its 1000Base-X fiber optic uplink port provides long distance, high speed and stable data transmission to remote core network. The special and convenient power system of the IGTP-80xT series supports 24/48V DC power inputs for power redundancy and operational flexibility. Being able to operate under the temperature ranging from -40 to 75°
Flexible, Reliable and Industrial-grade Network Distance Extension Solution PLANET IGT-1205AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000Base-T RJ-45 copper and two 100/1000Base-X SFP fiber optic interfaces delivered in an IP30 rugged strong case with redundant power system. The IGT-1205AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from –40 to 75°
