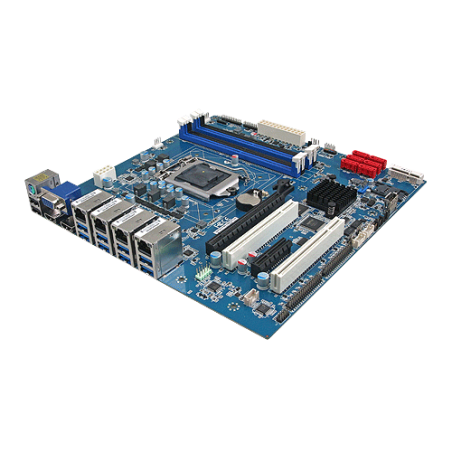

Intel® 6 / 7th Generation Core ™ -proces (Max TDP ved 95W)
Intel® C236 Chipset
4 x 288-pin DDR4 2400MHz DIMM understøtter op til 64 GB (ECC-hukommelse understøttet af CPU)
1 x VGA, 2 x HDMI 1.4
1 x Fuld størrelse Mini PCI-e support SATA / PCI-e x1 2.0 signal) med SIM-kortspor
1 x PCI-e x 16, 1 x PCI-e x 4, 2 x PCI
5 x USB2.0, 8 x USB 3.0
8 x RS232
2x RS232/422/485
Support RAID 0, 1, 5, 10
Indbygget Infineon SLB9665
support TPM 2.0ATX Power
Intel® 7th/6th Gen Skylake-S/Kaby Lake-S Series with Q170/H110
2 X DDR4 2400 MHz SODIMM slots up to 32GB
Triple independent displays: 2 X DVI-D, DP (HDMI by option), LVDS
4 X GbE LAN with RJ-45
1 X PCIe x16 (Gen3), 1 X Mini-PCIe (Full size, with SIM Holder) slots
1 X M.2 M Key, 2 X SATA 3.0 for storage
SATA RAID 0/1/5 (RAID 5 Configured with M.2 M Key)
8 X USB 3.2 Gen 1, 3 X USB 2.0, 4 X COM (4 RS-485), GPIO, Audio, System FAN
SMBus, Chassis Intrusion
Forsyningsspænding: 12~24V DC
Intel® 7th Generation Core ™ -processor (maks. TDP ved 95W) Intel®
Q170 chipsæt
2 x 260-pin DDR4 2133MHz SO-DIMM, & nbsp; op til 32 GB
1 x Intel® I219LM Gigabit Ethernet PHY1 x Intel® I211AT PCI-e Gigabit Ethernet
Realtek ALC892 HD Audio Codec
VGA, HDMI, DP, Dual Channel 18/24-bit LVDS
5 x SATA III, 1 x SATA III eller 1 x mSATA III-switch af BIOS
1 x PCI-e x 161 x Fuld størrelse Mini-PCI-e med mSATA-understøttelse (SATA III)
1 x Halv størrelse Mini PCI-e4 x USB 3.0, 8 x USB 2.0
1 x PS / 2 tastatur eller mus med dobbeltdækket USB 2.0
5 x RS232, 1 x RS232 / 422/485
Line-in, Mic-in, Line-out
8 -bits GPIO
Support RAID 0, 1, 5, 10
Ombord Infineon SLB9665
TPM 2.0AT / ATX Power
Onboard 6th Gen. Intel® Core™ SoC i7/i5/i3 & Celeron® BGA Processor
2 x 260-pin DDR4 2133 MHz SO-DIMM supports up to 32GB
DP++, HDMI/DP, Dual channel 18/24-bits LVDS
1 x Intel® I211AT PCI-e Gigabit Ethernet
1 x Intel® I219LM Gigabit Ethernet PHY
Realtek ALC892 Audio CodecTI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
1 x M.2 Type B 3042/2242/2260/2280, 1 x M.2 Type A, 1 x SIM card Slot, 1 x PCI-e
2 x SATA III, 2 x SATA Power, 4 x USB 2.0, 4 x USB 3.0
4 x RS232, 2 x RS232/422/485, 16-bit GPIO
Mic-in, Line-out, 1 S/PIDF, SD card slot, Onboard Infineon SLB9665 TPM 2.0
Optional eMMC
DC in +12V~24V
