Serielport Server til Ethernet

Serielport Server til Ethernet

Der er 10 varer.

Viser 1-10 af 10 element(er)

Aktive filtre

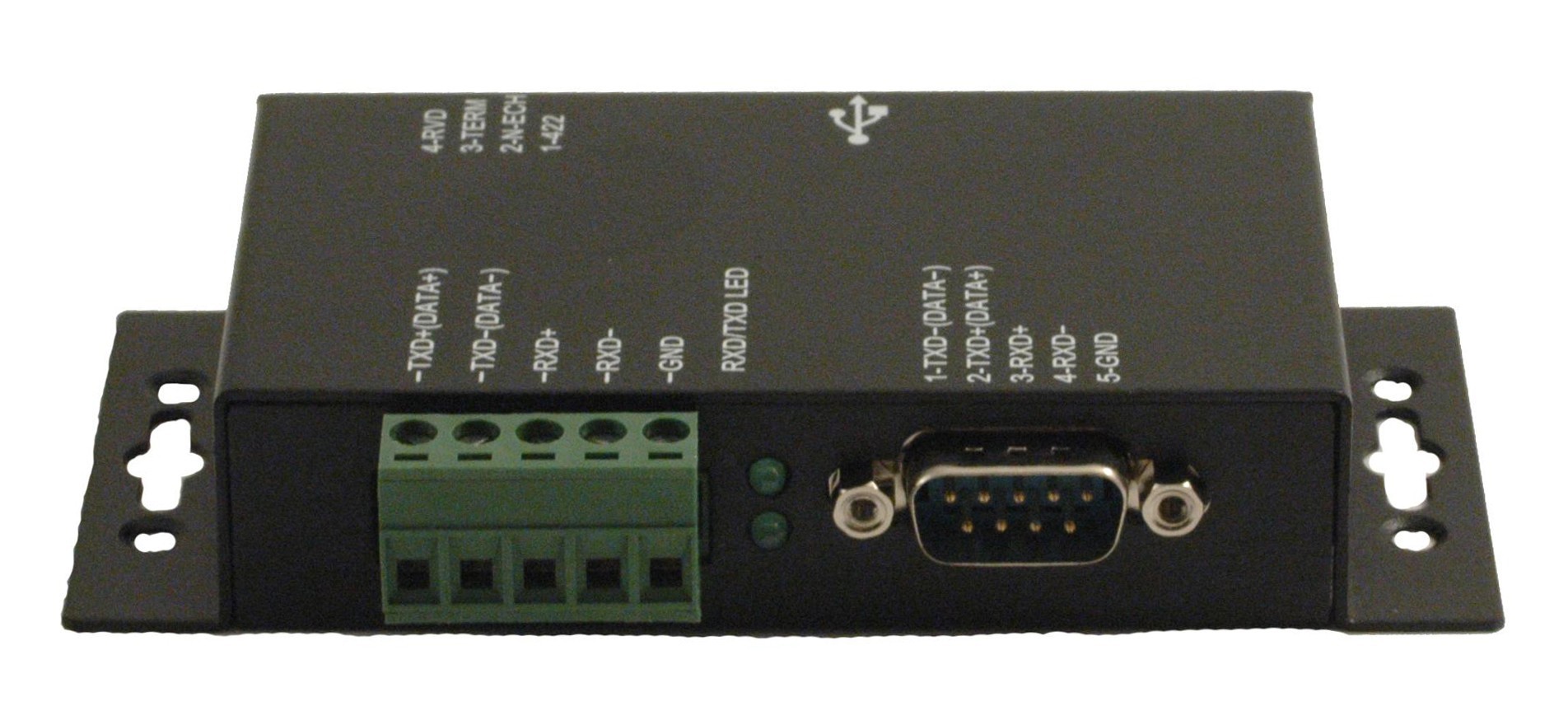

2 port serielportserver -...

2 port serielportserver - Serial Device Server, RS232 / RS422 / RS485 port over Ethernet. 2 x RJ45, 2 x DB9 han, 12 - 48VDC

2 COM porte over Ethernet, Internet
Hver COM port kan være RS232 eller RS422 eller RS485
RS232 pin 1 - 8: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS
RS422 / RS485 4-W: pin 1 - 5: TxD+, TxD-, RxD+, RxD-, GND
RS485 2-W: pin 3 - 5: Data-, Data+, GND
Baud Rate: 50 bps - 921kbps
Data Bits: 5, 6, 7, 8
Parity: 1, 1.5, 2
Stop Bit: Odd, Even, None, Space, Mark
2 x RJ45 10/100Mbit
Alarm: relæudgang
Forsyningsspænding: 12 - 48VDC 6.5Watt
Web management
IP Version: IPv4 / IPv6. TCP Server, TCP Klient, UDP klient
Virtuel COM
Pair Connection (remote / slave)
Supporterer: XP til Win10, Server 2003, 2008, 2012
Mål: 135 x 88 x 32 mm
DIN beslag

Pris 2.720,00  DKK
Varenummer ETH2SER-IC
På vej ind
  • 4 ports serielportserver...

    4 ports serielportserver RS422 / RS485, MOXA NPort 5430. Serial Device Server

    Eksterne COM-porte via Ethernet og Internet

    Easy IP address configuration with LCD panel
    10/100Mbit auto-sensing Ethernet
    4 serial ports, with support for RS422, and RS485
    Built-in 15 KV ESD surge protection for all serial signals
    Versatile socket operation modes, including TCP Server, TCP Client, and UDP
    Choice of configuration methods: Web console, Telnet console, and Windows utility
    SNMP MIB-II for network management
    -40 to 75°C operating temperature

    Pris 3.300,00  DKK
    Varenummer ETH4SER485+
    Fysisk på lager
  • 4 port serielportserver -...

    4 port serielportserver - Serial Device Server, RS232 / RS422 / RS485 port over Ethernet. 2 x RJ45, 4 x DB9 han, 12 - 48VDC

    4 COM porte over Ethernet, Internet
    Hver COM port kan være RS232 eller RS422 eller RS485
    RS232 pin 1 - 8: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS
    RS422 / RS485 4-W: pin 1 - 5: TxD+, TxD-, RxD+, RxD-, GND
    RS485 2-W: pin 3 - 5: Data-, Data+, GND
    Baud Rate: 50 bps - 921kbps
    Data Bits: 5, 6, 7, 8
    Parity: 1, 1.5, 2
    Stop Bit: Odd, Even, None, Space, Mark
    2 x RJ45 10/100Mbit
    Alarm: relæudgang
    Forsyningsspænding: 12 - 48VDC 6.5Watt
    Web management
    IP Version: IPv4 / IPv6. TCP Server, TCP Klient, UDP klient
    Virtuel COM
    Pair Connection (remote / slave)
    Supporterer: XP til Win10, Server 2003, 2008, 2012
    Mål: 135 x 88 x 50 mm
    DIN beslag

    Pris 3.577,00  DKK
    Varenummer ETH4SER-IC
    På vej ind
  • 1 port serielportserver...

    1 port serielportserver RS232/422/485, MOXA NP5150. Serial Device Server

    Ekstern COM-port via Ethernet og Internet
    Small size for easy installation
    Real COM/TTY drivers for Windows and Linux
    Standard TCP/IP interface and versatile operation modes
    Easy-to-use Windows utility for configuring multiple device servers
    Built-in 15 KV ESD protection for all serial signals
    SNMP MIB-II for network management
    Configure by Telnet or web browser

    Pris 1.698,00  DKK
    Varenummer ETH1SER5150
    På vej ind
