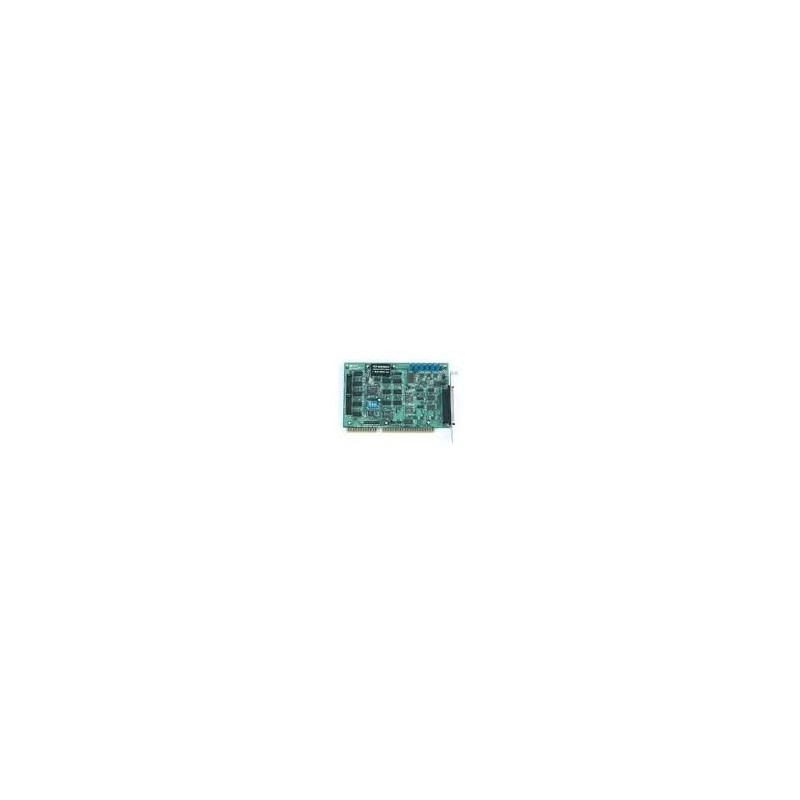

Adlink ACL-8112HG 16 kanals A/D dataopsamling, 12bit, 100kS, PCIE

100KHz 16Ch Analog Input A/D Card - High Gain.
16 Single-Ended or 8 Differential Analog Input Channels
Bipolar or Unipolar Input Signals
Programmable High-Gain x0.5, x1, x5, x10, x50, x100, x500, x1000
12-Bit Successive Approximation A/D Converter (AD774 or equivalent)
On Chip Sample & Hold
Two 12-Bit Analog Output Channels
16 Digital Inputs and 16 Digital Outputs
Integral DC-to-DC Converter for Stable Input Operation
37-Pin D-Sub Connector
Compact Size - only half-size PC
WIN3.1/95/NT

AD16S12DAQ
5.091,00  DKK
Ekskl. moms
Antal
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

16-CH 12-Bit 100 kS/s High Gain Multi-Function DAQ Card with 16 single-ended or 8 differential inputs,

(2) 12-bit double-buffered analog outputs, 16 digital inputs and 16 digital outputs, and one general purpose timer/counter
