Dataopsamling A/D, D/A - Input- / Outputkort

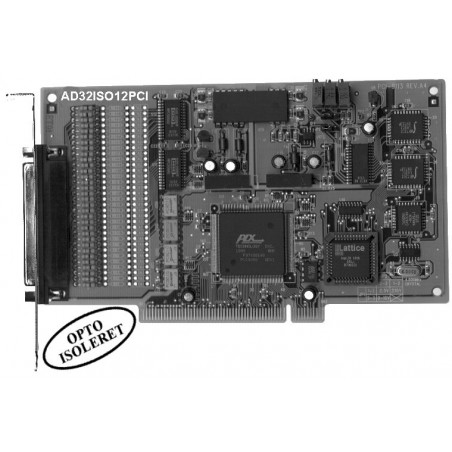

Isolationen beskytter både computer og  måleresultaterne mod fejl, grundet forskelle i stelpotentialer.

Supports a 32-bit 5 V PCI bus
12-bit A/D resolution
Up to 100 kS/s sampling rate
32-CH single-ended or 16-CH differential inputs
On-board 1 k-sample A/D FIFO
Bipolar or unipolar analog input ranges
Programmable gains of x1, x10, x100
Automatic analog inputs scanning

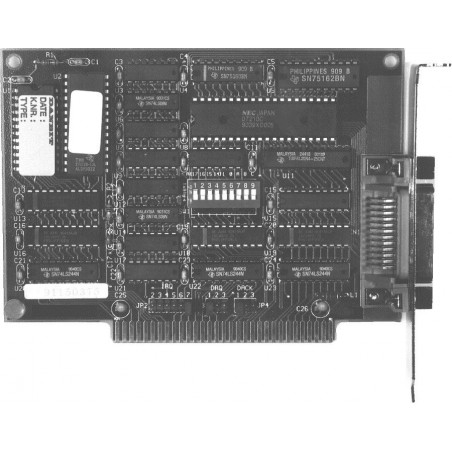

Axiom AX5488

IEEE-488 (GP-IB) interfacekort (IEEE-488.1)
NEC-chip PD7210
21 firmware-kommandoer
over 300 kByte/s
DMA 1-3
IRQ2-7
med Basic, C, Pascal
Windows driver

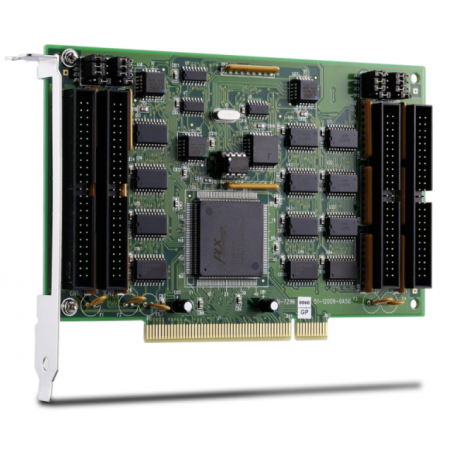

PCI kort med 96 TTL I/O kanaler, samt 3 tæller

PCI interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Adlink PCI-7296

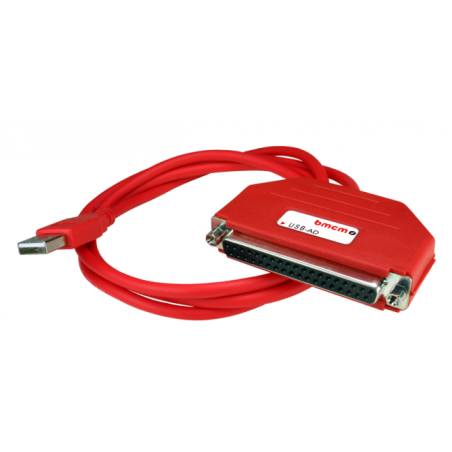

Måling og kontrol via USB porten
16 x analoge indgange 12 bit, +/-5V
Sample-hastighed: 10Hz per kanal
1 analog udgang 12bit, +/-5V
4 digitale udgange TTL(CMOS
4 digitale indgange TTL/CMOS
Strømforsynes fra USB porten
DAQ software: Tilkøb NextView

ONLY 1 Left!

8-CH timers/counters
2-CH cascaded 32-bit timer with 1 MHz base clock
On-board multiple base clocks ranging from 100 kHz to 2 MHz
External gate control and clock inputs for each counter
Inverted gate signals for 4-CH synchronized frequency measurement
Multiple interrupt sources from counter outputs, timer outputs and external interrupt inputs

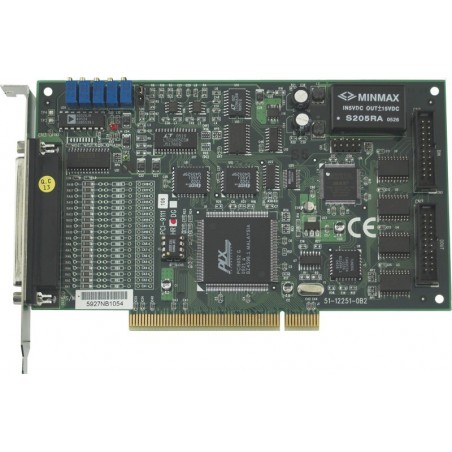

Supporterer 32-bit 5 V PCI bus
12-bit A/D resolution (PCI-9111DG)
16-CH single-ended analog inputs
Op til 100 kS/s sampling rate
On-board 1 k-sample A/D FIFO
Programmerbar forstærkning på x1, x2, x4, x8, x16
Bipolar analog input-område

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

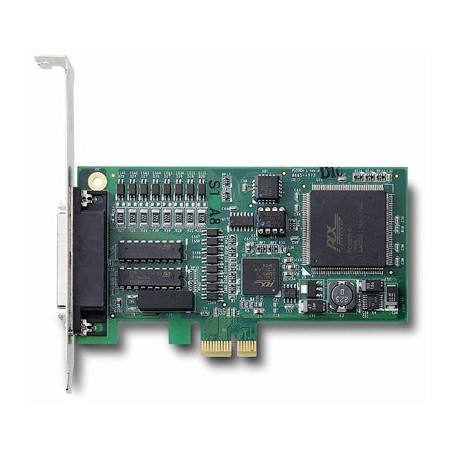

Understøtter en 32-bit 5 V PCIe Express bus - LAV PROFIL KORT
16-CH isolerede digitale indgange
16-CH isolerede digitale udgange - Open-Collector
5000 VRMS optisk isolering
Synkestrøm op til 500 mA på hver isoleret udgang

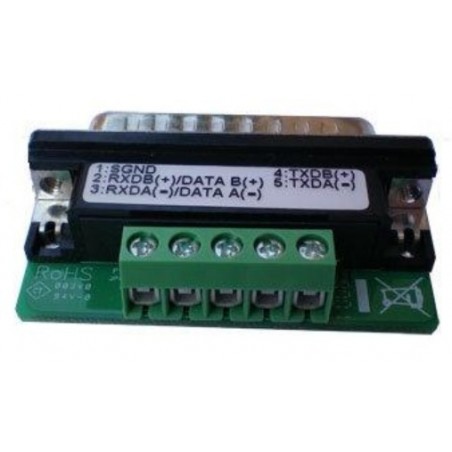

Omformer DB25 han til RS422/485 terminalblok
Adapter med 5 skrueterminaler
Op til 15V
Til analog kommunikation
Moxa NP21103

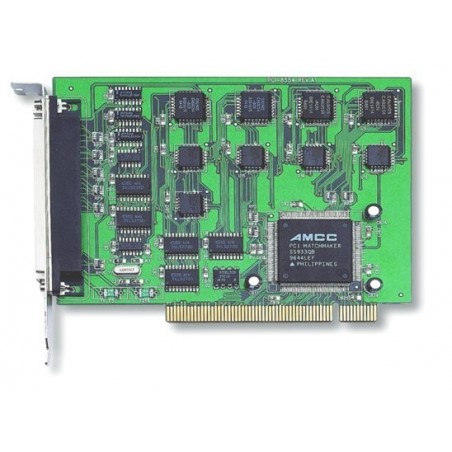

PCI 10 kanalers 16 bits tæller kort og 8 kanalers I/O

Supports a 32-bit 5 V PCI bus
On-board four 82C54 programmable timer/counter chips
10-CH independent 16-bit down counters
1-CH 32-bit cascaded timer
Four programmable clock sources for each timer/counter
Programmable de-bounce filter for external clock & external interrupt inputs
8-CH TTL DI & 8-CH TTL DO

PCI Express kort med 96 TTL I/O kanaler, samt 3 tæller

X1 PCI Express interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Support Windows 7/8 X64/X86 and Windows 2008 R2

8 af de digitale udgange kan trække op til 500mA pr. kanal

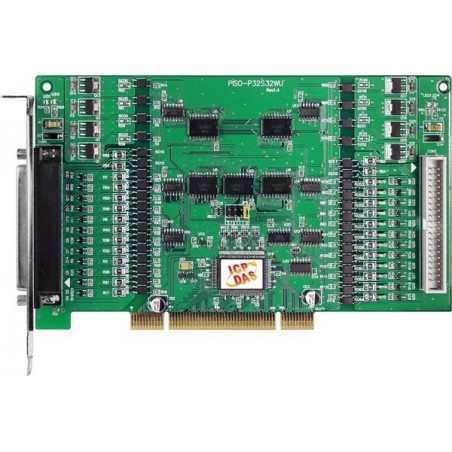

32-CH optical-isolated digital input
32-CH optical-isolated digital output
Isolation Voltage: 3750 Vrms (Using external power)
Card ID: Jumper setting for multi-board identification
Open Collector: 8-channel - 500mA, Current Sinking, NPN
Open Collector: 24-channel - 100mA, Current Sinking, NPN

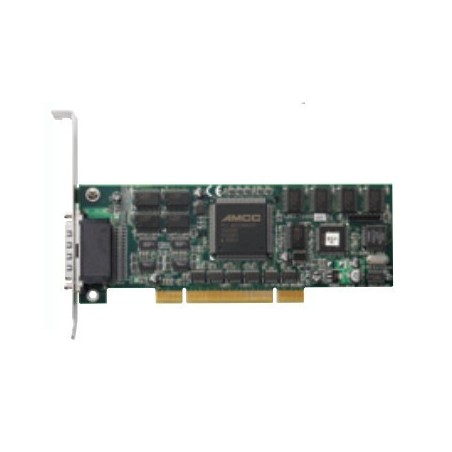

Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

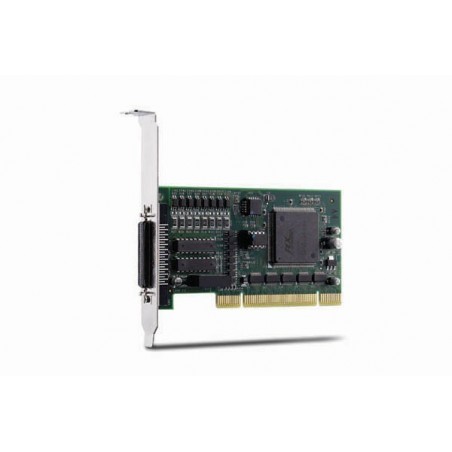

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

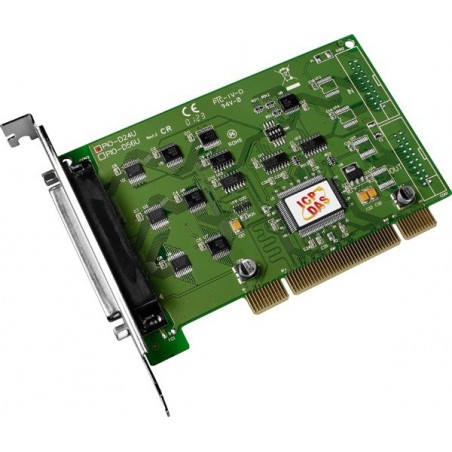

Universal PCI interface til +5 V and +3.3 V PCI bus.
Op til 24 digitale I/O kanaler
Programmerbare I/O porte
DIO response time 0.77 μs (1.3 MHz max.)
WIN Vista,98/NT/2000 and XP/2003 32-bit version OS

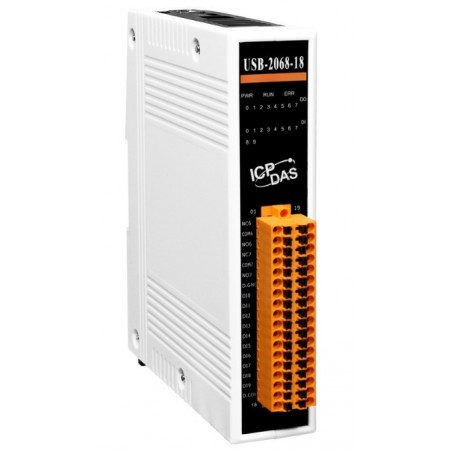

10 x digitale input (0 - 50VDC)
8 x relæ output (skifterelæ, 0,25A @ 230VAC, 2A @ 30VDC)
Forsynes via USB
Alle Digitale input kan bruges som 32-bit tæller
8kV ESD beskyttelse
Udvidet temperatur -25 til +75°C
Isolation: 3000 VDC
Watchdog - hardware og software
Benytter ikke driver - SDK udviklingsværktøj findes

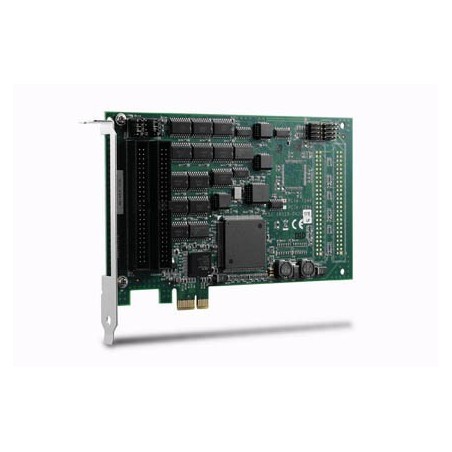

Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)

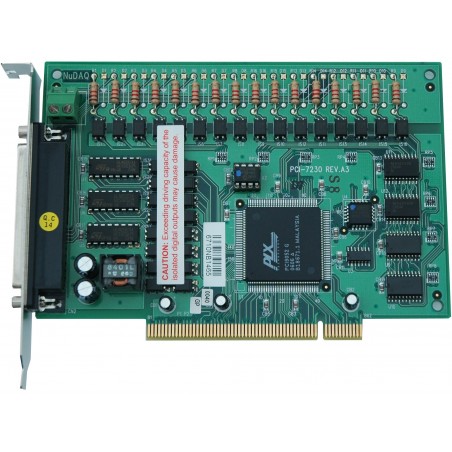

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

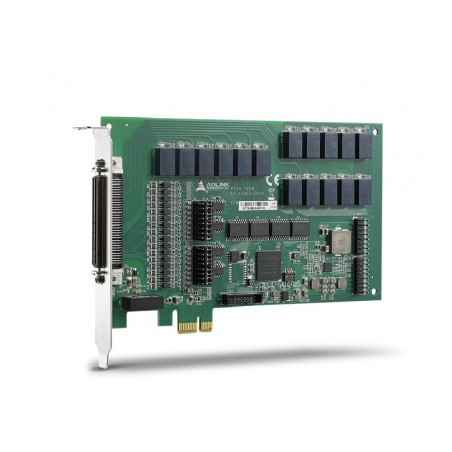

NY MODEL MED PCIe
Understøtter en PCI Express x1, Plug and Play (PCIe-7256)
16-CH låsende SPDT relæudgange
Energibesparelse ved relæaktivering
Output status uændret, når strømmen er slukket
On- LED-indikatorer for relæstatus
16-CH isolerede DI
Afbrydelse af status (COS) afbrydelse / Board ID
Windows 7/10 64/32 bit support
Linux i686

20MHz A/D på et PCI kort

Samtidig konvertering på 4 kanaler

Adlink PCI-9812

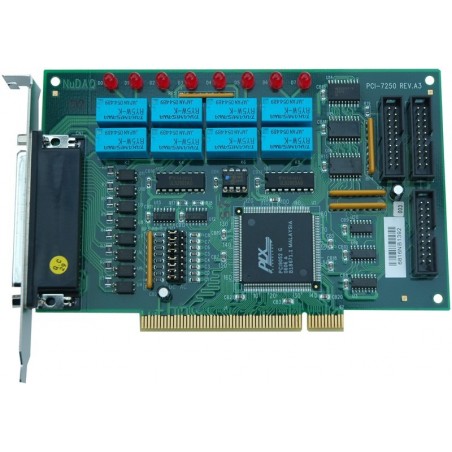

Antal af ind- og udgange kan udvides til 32

Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
