Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

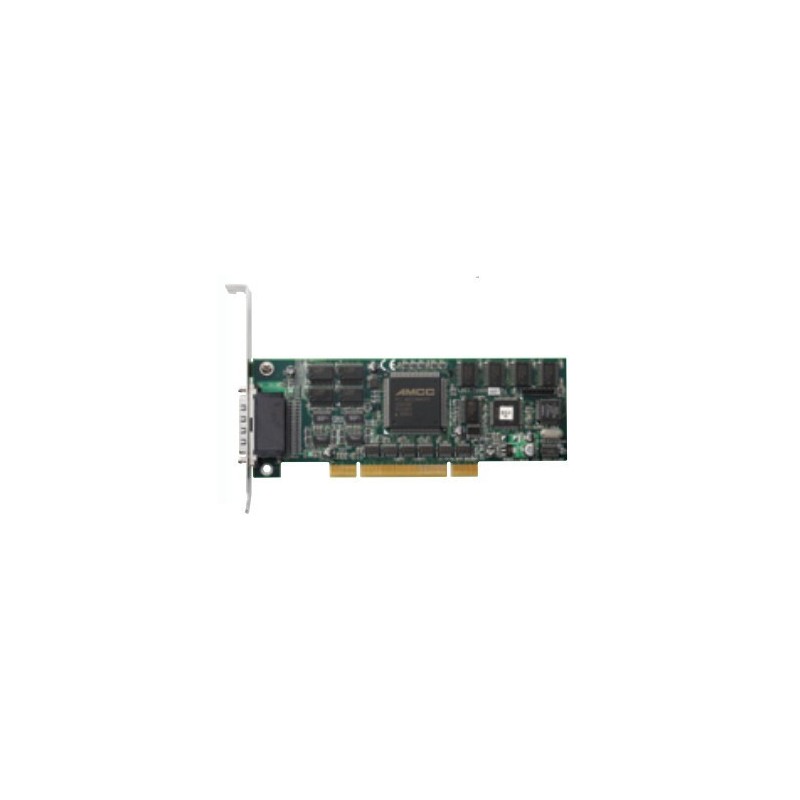

DI32O32PCI-L (ADLINK LPCI-7200S) is a high-speed digital I/O card. It consists of 32 digital input channels, and 32 digital output channels.
High performance designs and the state-of-the-art technology make this card suitable for high speed data transfer and pattern generation applications.
DI32O32PCI-L performs high-speed data transfers using bus-mastering DMA via 32-bit PCI bus architecture. The maximum data transfer rates can be up to 12 MB per second. Several digital I/O transfer modes are supported, such as direct programmed I/O control, timer pacer control, external clock mode and handshaking mode.
It is very suitable for interfacing high-speed peripherals with your computer system. DI32O32PCI-L supports 3.3 V and 5 V PCI bus with low-profile PCI size. It occupies less space and thus is ideal for book-size computers.
Adlink DIN-68S-01
Terminalkort
Indbygget stik
68-pin SCSI-II hun
103 x 85 x 46,2 mm (B x L x H)
10 x digitale input (0 - 50VDC)
8 x relæ output (skifterelæ, 0,25A @ 230VAC, 2A @ 30VDC)
Forsynes via USB
Alle Digitale input kan bruges som 32-bit tæller
8kV ESD beskyttelse
Udvidet temperatur -25 til +75°C
Isolation: 3000 VDC
Watchdog - hardware og software
Benytter ikke driver - SDK udviklingsværktøj findes
PCI kort med 96 TTL I/O kanaler, samt 3 tæller
PCI interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Adlink PCI-7296
ONLY 1 Left!
8-CH timers/counters
2-CH cascaded 32-bit timer with 1 MHz base clock
On-board multiple base clocks ranging from 100 kHz to 2 MHz
External gate control and clock inputs for each counter
Inverted gate signals for 4-CH synchronized frequency measurement
Multiple interrupt sources from counter outputs, timer outputs and external interrupt inputs
100KHz 16Ch Analog Input A/D Card - High Gain.
16 Single-Ended or 8 Differential Analog Input Channels
Bipolar or Unipolar Input Signals
Programmable High-Gain x0.5, x1, x5, x10, x50, x100, x500, x1000
12-Bit Successive Approximation A/D Converter (AD774 or equivalent)
On Chip Sample & Hold
Two 12-Bit Analog Output Channels
16 Digital Inputs and 16 Digital Outputs
Integral DC-to-DC Converter for Stable Input Operation
37-Pin D-Sub Connector
Compact Size - only half-size PC
WIN3.1/95/NT
