PCI kort med 96 TTL I/O kanaler, samt 3 tæller

PCI interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Adlink PCI-7296

2-Port 10/100/1000T 802.3at PCI express
PoE+ (60W)
Intel I350AM2 Controller
2 x RJ45
Dimensioner: 169 x 121 x 19 mm
vægt 161 g
Driftstemperatur: -10 ~ 60 C

4-Port 10/100/1000T 802.3at PCI express
PoE+ (120W)
Intel I350 Controller
4 x RJ45
Dimensioner: 169 x 121 x 18 mm
vægt 251 g
Driftstemperatur: -10 ~ 60 C

NY MODEL MED PCIe
Understøtter en PCI Express x1, Plug and Play (PCIe-7256)
16-CH låsende SPDT relæudgange
Energibesparelse ved relæaktivering
Output status uændret, når strømmen er slukket
On- LED-indikatorer for relæstatus
16-CH isolerede DI
Afbrydelse af status (COS) afbrydelse / Board ID
Windows 7/10 64/32 bit support
Linux i686

10 x digitale input (0 - 50VDC)
8 x relæ output (skifterelæ, 0,25A @ 230VAC, 2A @ 30VDC)
Forsynes via USB
Alle Digitale input kan bruges som 32-bit tæller
8kV ESD beskyttelse
Udvidet temperatur -25 til +75°C
Isolation: 3000 VDC
Watchdog - hardware og software
Benytter ikke driver - SDK udviklingsværktøj findes

Universal PCI interface til +5 V and +3.3 V PCI bus.
Op til 24 digitale I/O kanaler
Programmerbare I/O porte
DIO response time 0.77 μs (1.3 MHz max.)
WIN Vista,98/NT/2000 and XP/2003 32-bit version OS

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

Support a 32-bit 3.3 V or 5 V PCI bus (LPCI-7200S)
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

Support a 32-bit 3.3 V or 5 V PCI bus
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB

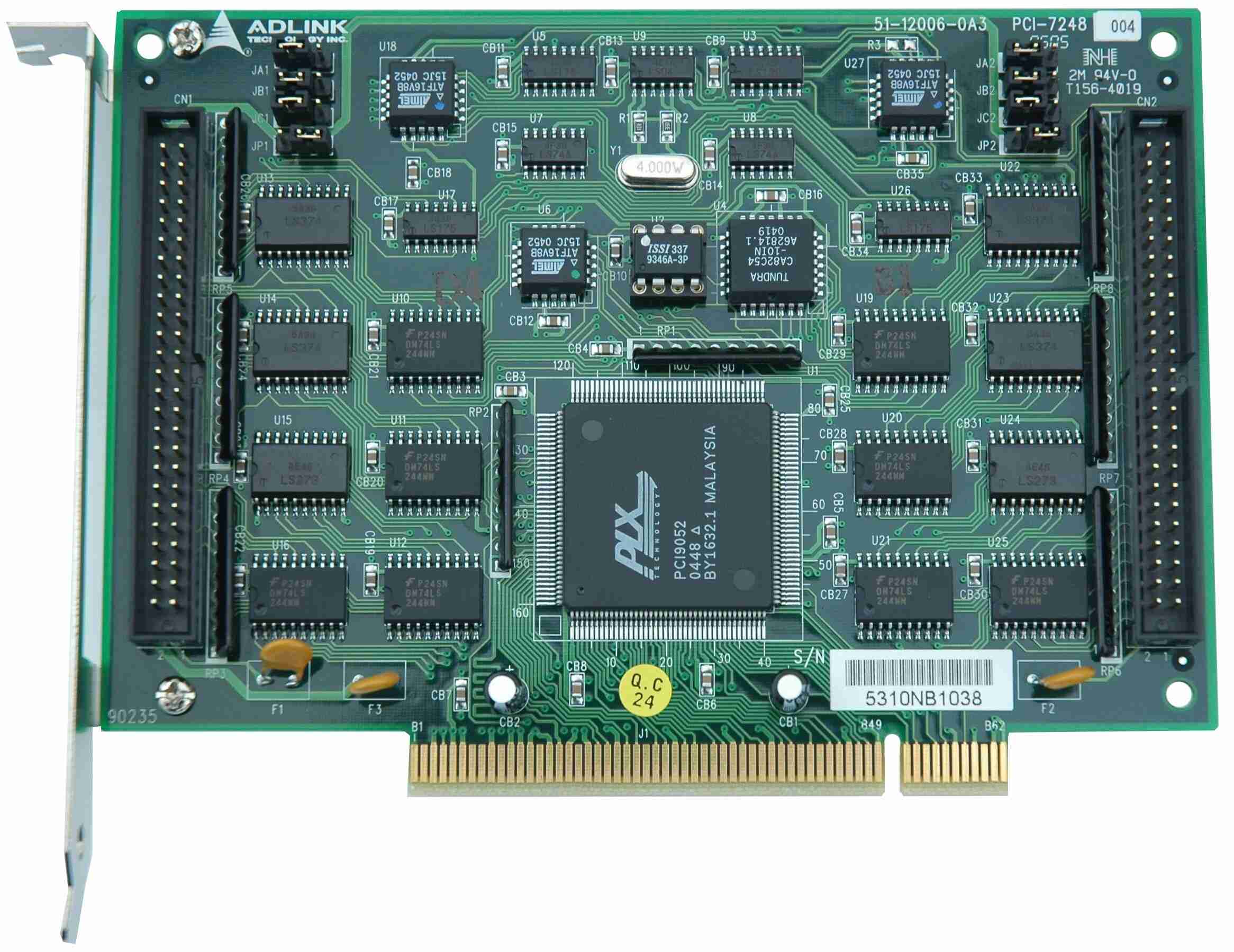

PCI kort med 8 relæer og 8 optoisolerede indgange

8-CH high power relay outputs (5A @ 250VAC or 30VDC)
8-CH isolated digital inputs with AC-filter
1-CH emergency shutdown input
Pluggable connector for high current input
Supports universal 32-bit 3.3V and 5V PCI bus
Initial state and safety state setting by DIP switches
Built-in watchdog timer

Antal af ind- og udgange kan udvides til 32

Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs

Slave kort til REL8OPT8PCI

Supports a 32-bit 5 V PCI bus
8-CH relay outputs on PCI-7250
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI

Relæerne holder deres stilling, selv om strømmen til kortet afbrydes

Supports a 32-bit 3.3 V or 5 V PCI bus
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchanged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Change-of-status (COS) interrupt
Board ID

8 af de digitale udgange kan trække op til 500mA pr. kanal

32-CH optical-isolated digital input
32-CH optical-isolated digital output
Isolation Voltage: 3750 Vrms (Using external power)
Card ID: Jumper setting for multi-board identification
Open Collector: 8-channel - 500mA, Current Sinking, NPN
Open Collector: 24-channel - 100mA, Current Sinking, NPN

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Understøtter en 32-bit 5 V PCIe Express bus - LAV PROFIL KORT
16-CH isolerede digitale indgange
16-CH isolerede digitale udgange - Open-Collector
5000 VRMS optisk isolering
Synkestrøm op til 500 mA på hver isoleret udgang

Supports a 32-bit 5 V PCI bus
64-CH isolated digital inputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output

16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,

Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

Med tilstandsdetektor på alle 32 indgange
Optoisolerede indgange - 2,5kV - fælles stel
Logik: Low 0-3,2VDC, High: 3,5 - 24VDC

PCI Express kort med 96 TTL I/O kanaler, samt 3 tæller

X1 PCI Express interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Support Windows 7/8 X64/X86 and Windows 2008 R2

Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
