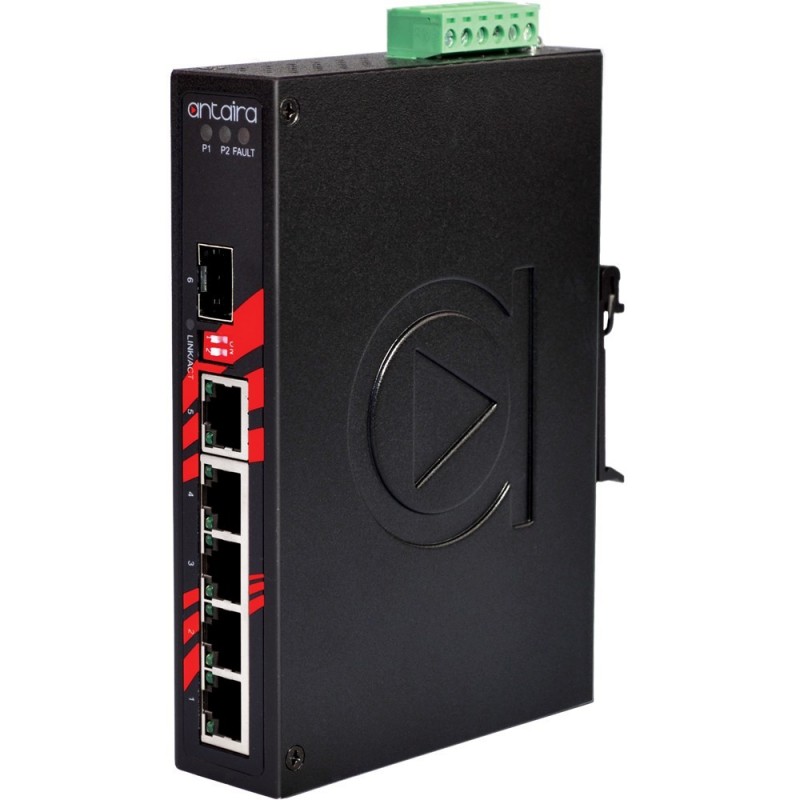

5 ports Industriel 10/100/1000Mbit + 1 x 100/1000Mbit SFP slot switch, DIN-beslag, -10 - +70°C, 12 - 48VDC

5 x 10/100/1000Mbps Ethernet porte + 2 x 100/1000Mbps SFP Slot
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3kV
ESD Protection: 6kV
Redundant Power Input Design – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminumkabinet
DIN-Rail og Wall Mount
Temperaturområde: -10 til 70°C

5 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Udvidet temperaturområde: -40° to +80°C

12 x 10/100/1000Mbps + 4 x 100/1000Mbps SFP porte
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address tabel
Jumbo Frame Support: 12.2K
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
1 Relay Output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Temperaturområde: -10° to 70° C

8 x 10/100/1000Tx RJ45
PoE+ (30W / port)
4 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Forsyningsspænding: 48~55VDC
Indbygget relæ Output til Power Failure
IP30 Rugged Metal Case Design
DIN-Skinne og Væg montering
Driftstemperatur: -40° to 75° C
