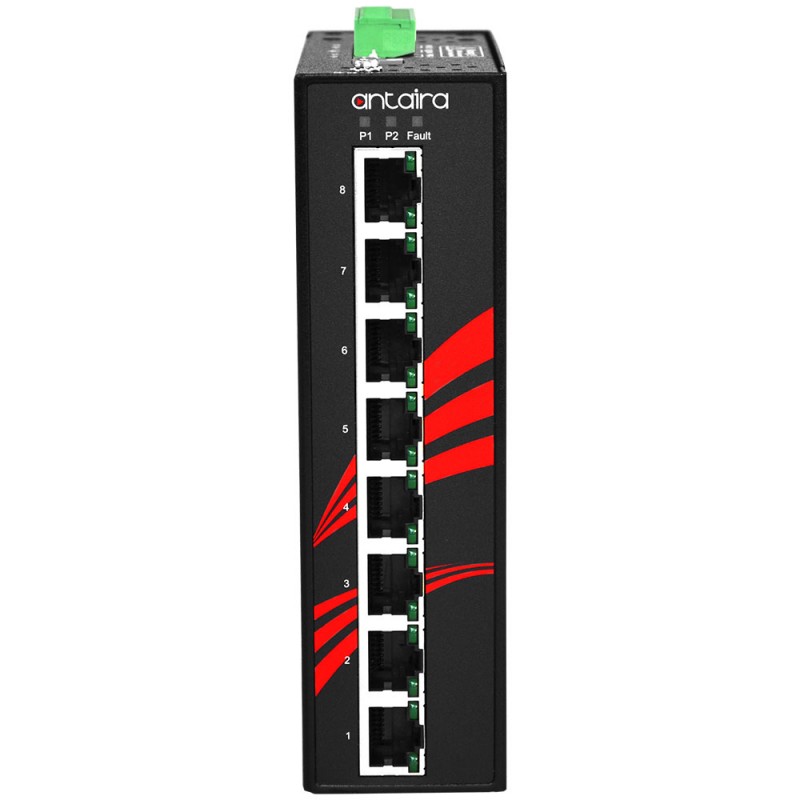

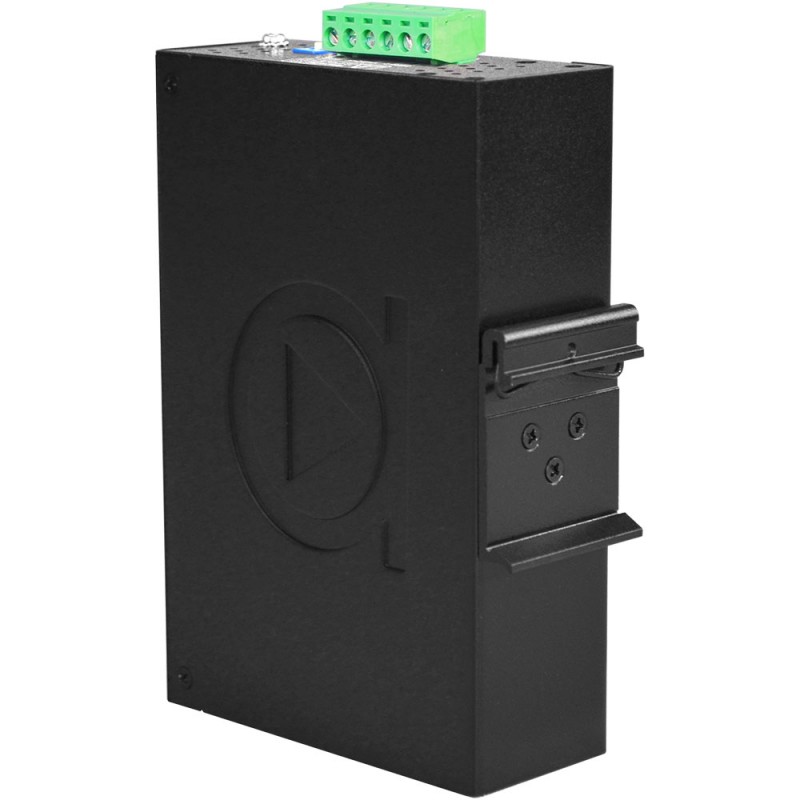

8-Port Industrial Gigabit Switch med PoE+, unmanaged, 12-36VDC

8 x 10/100/1000Base-T(X) RJ45
PoE (P.S.E.) Porte
IEEE 802.3at
Op til 30 Watt pr. Port
9.6Kbytes Jumbo Frame
Forsyningsspænding, dual wide range 12 ~ 36VDC
Auto-Negotiation & Auto-MDI/MDI-X
Store-and-Forward Transmission
Flow Control
IP-30 Housing Design
DIN-Skinne og væg montering
UL Class I, Division 2 Certified

ANR-LNP-800AGH
4.062,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Certifications
FCC, CE, UL 508, UL Class 1 Division 2, ISA 12.12.01
Chok/Vibration
IEC60068-2-32, IEC60068-2-27
Dimensioner
41.0 x 144.3 x 94.9 mm
Driftstemperatur
STD: -10° to 60°C
Luftfugtighed
5% to 95%, (non-condensing)
Materiale
Metal IP30
Montering
DIN-skinne og væg montering
Netværk
10Base Tx: UTP/STP Cat. 3,5 100Base Tx: UTP/STP Cat. 5 1000Base Tx: UTP/STP Cat.5/5e/6
PoE
V+, V+, V-, V-, for pin 1, 2, 3, 6 (End span, MDI-X Alternative A)
Porte
8 x RJ45, 10/100/1000BaseTx (PSE: 30W/Port) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Standarder
IEEE 802.3 10Tx Ethernet IEEE 802.3U 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3x Flow Control for Full Duplex IEEE 802.3at/af PoE (Power-over-Ethernet)
Strømforbrug
10 Watts (no PD included)
Strømforsyning
12-36VDC Redundant input, PoE output 30W @ 12~36VDC (per PoE port)
