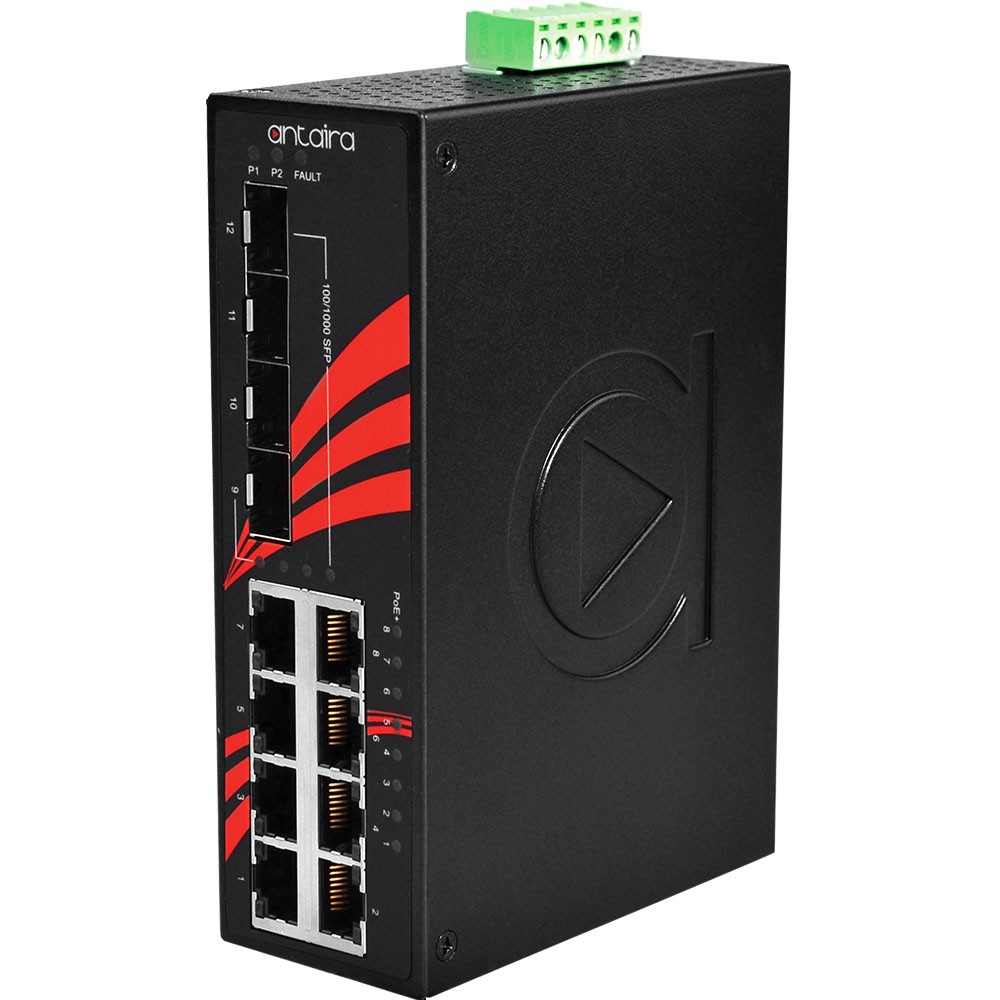

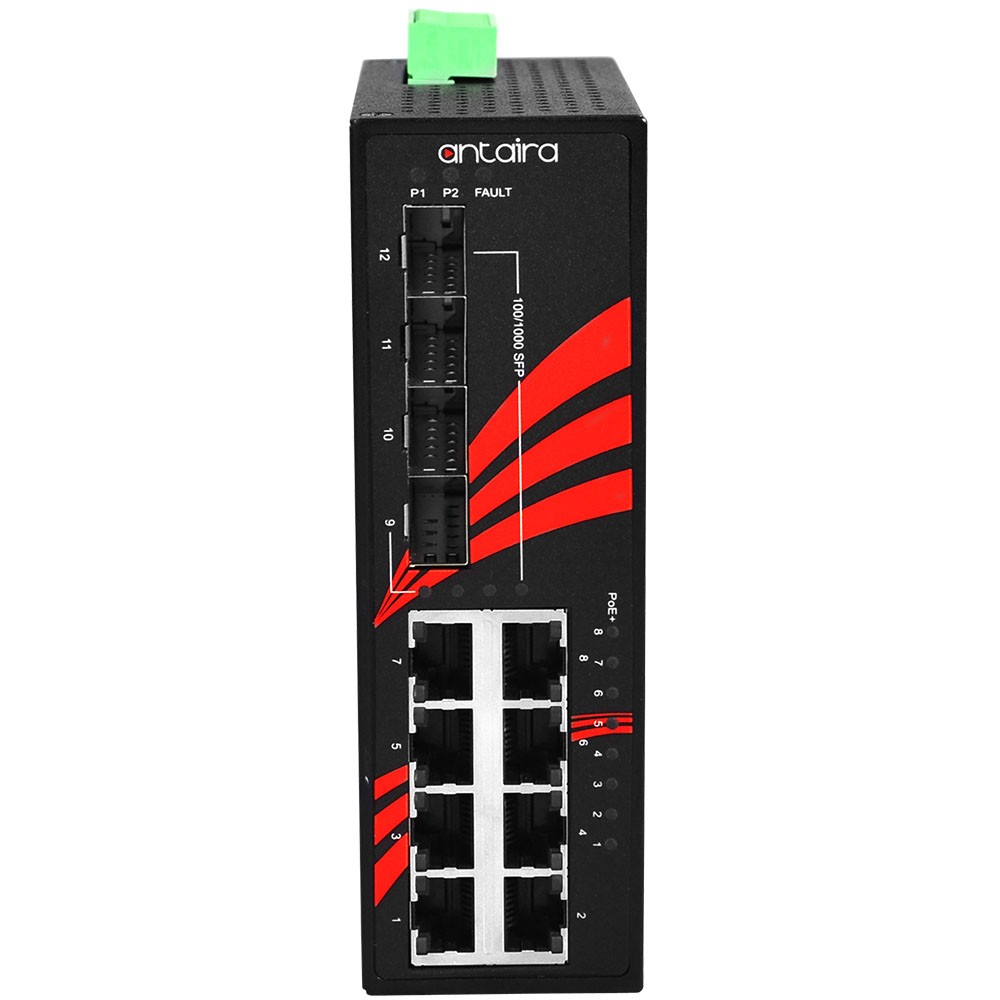

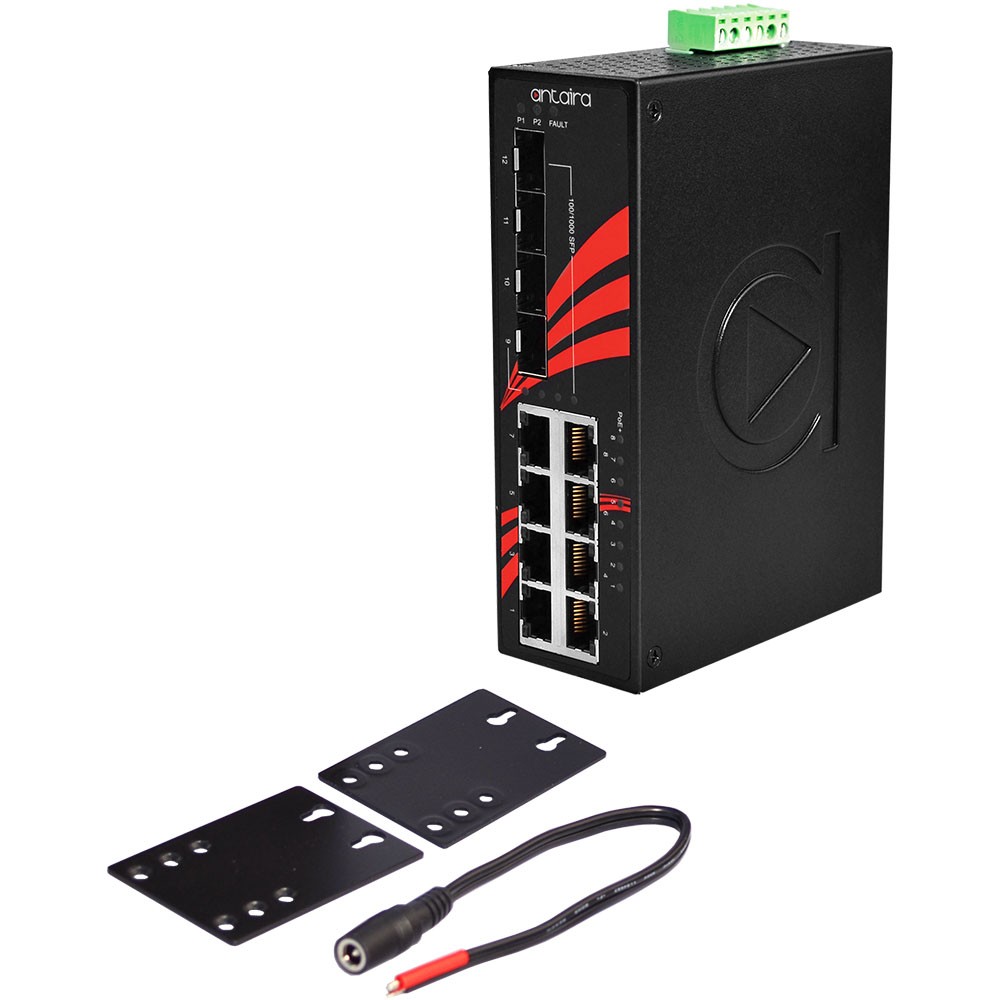

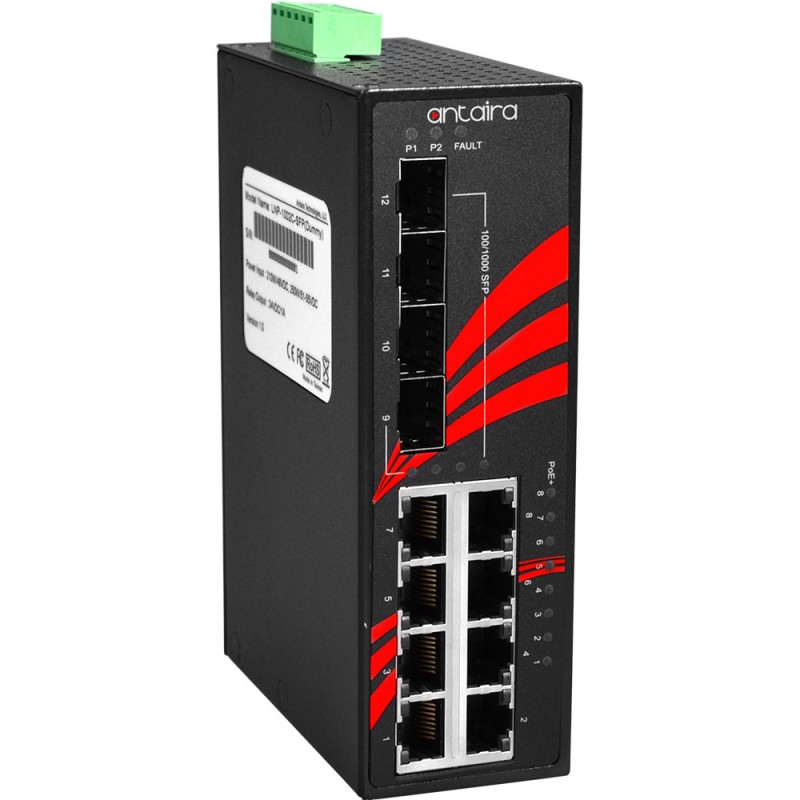

12-Ports Gigabit Switch med PoE+ unmanaged, 8 x RJ45 porte og 4 x SFP porte, -40° til 75°C, 48-55VDC

8 x 10/100/1000Tx RJ45
PoE+ (30W / port) IEEE 802.3at
2 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
20Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Forsyningsspænding: 48~55VDC
Indbygget relæ Output for Power Failure
IP30 Rugged Metal Case Design

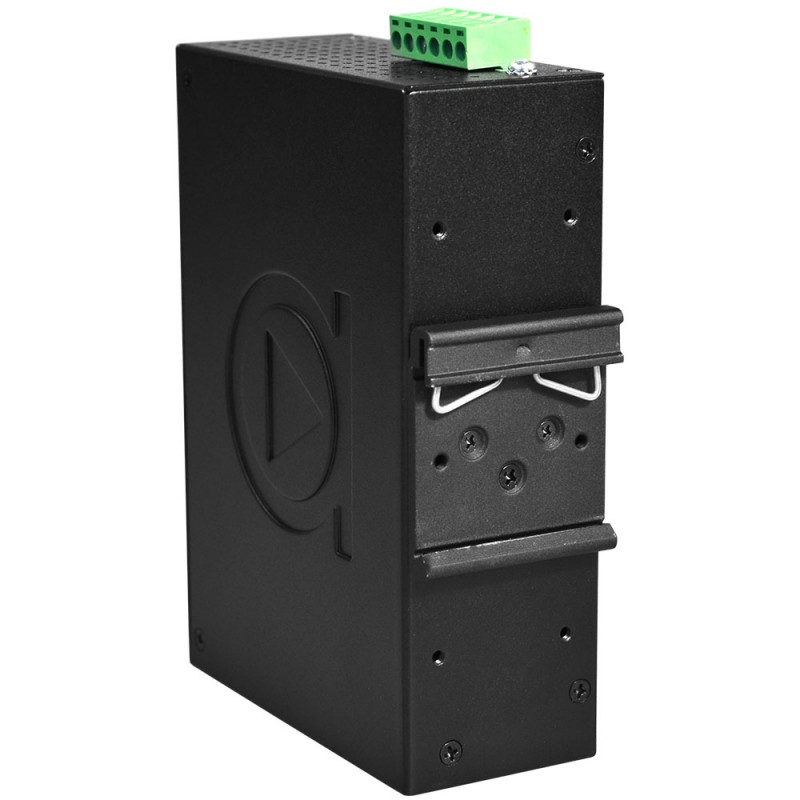

DIN-Skinne og Væg montering
Driftstemperatur: -40° to 75°C

8 x 10/100/1000Tx RJ45 (30W/port)
2 x 10/100/1000Tx RJ45
2 x 100/1000 SFP porte
Auto MDI/MDI-X Funktion
Store-and-Forward Switching Architecture
24Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
UL Class I, Division 2 Certified
Strømforsyning: 48~55VDC
Indbygget relæ Output til Power Failure
IP30 Rugged Metal Case Design
DIN-Skinne og Væg montering
Driftstemperatur STD: -10° to 70° C

8 x 10/100/1000Base-T(X) RJ45
PoE (P.S.E.) Porte
IEEE 802.3at
Op til 30 Watt pr. Port
9.6Kbytes Jumbo Frame
Forsyningsspænding, dual wide range 12 ~ 36VDC
Auto-Negotiation & Auto-MDI/MDI-X
Store-and-Forward Transmission
Flow Control
IP-30 Housing Design
DIN-Skinne og væg montering
UL Class I, Division 2 Certified

4 x 10/100/1000Mbit, PoE+ (30W) IEEE 802.3at
1 x 10/100/1000Mbit
2 x 100/1000Mbit SFP slot
14Gbps Back-Plane
8K MAC Address Tabel
10.0 Kbytes Jumbo Frame
Overspænding 2kV DC
ESD beskyttelse 6kV DC
Redundant Power Input Design: 12 - 36VDC
1 Relay Output til Power fejl alarm
IP30 Rugged Metalkabinet
DIN-Rail and Wall Mount inklusiv
Udvidet driftstemperatur:-10 -+70°C
