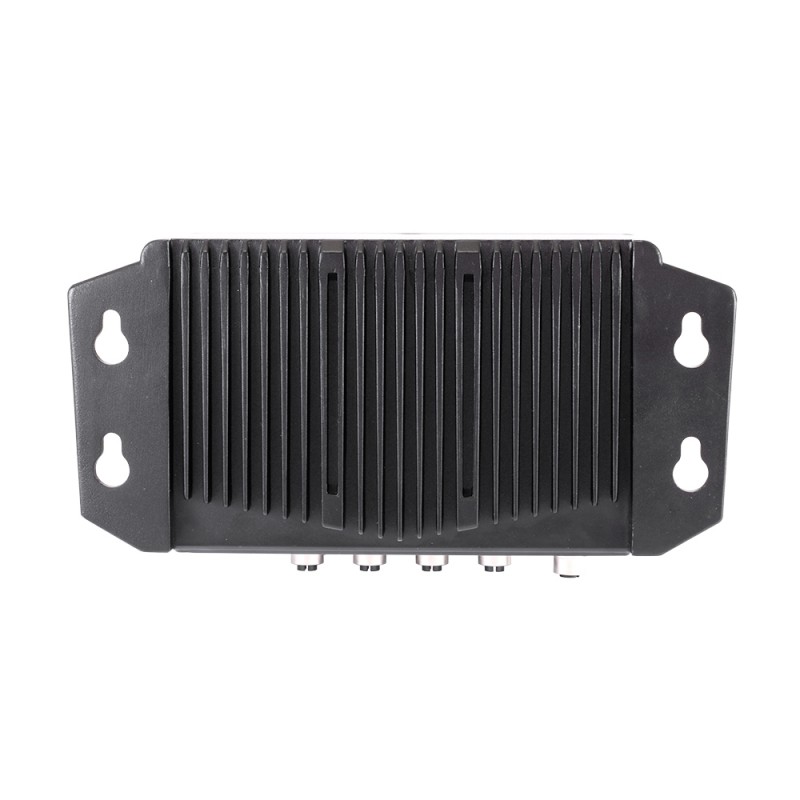

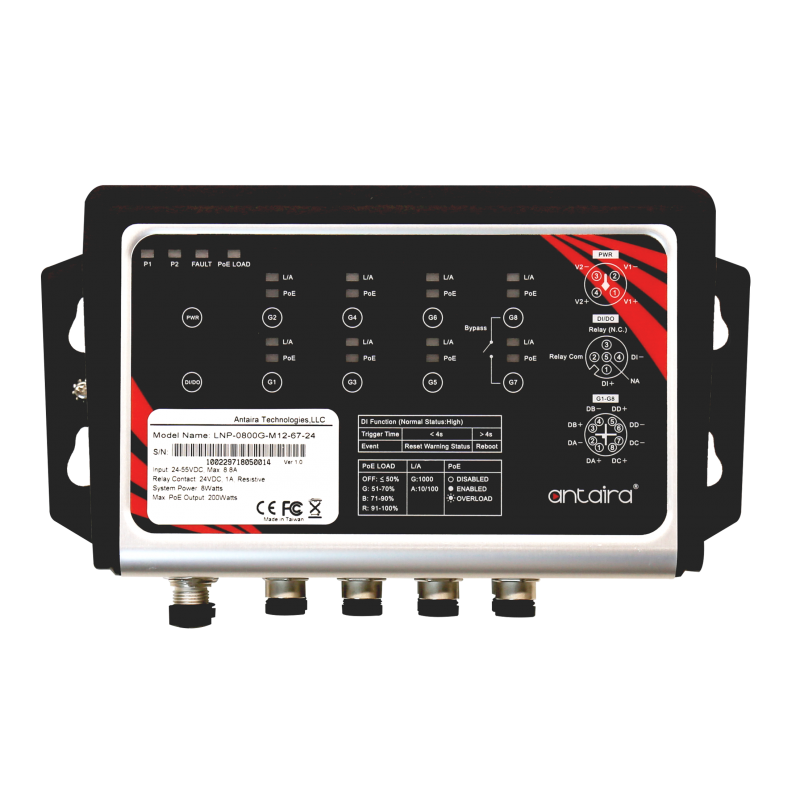

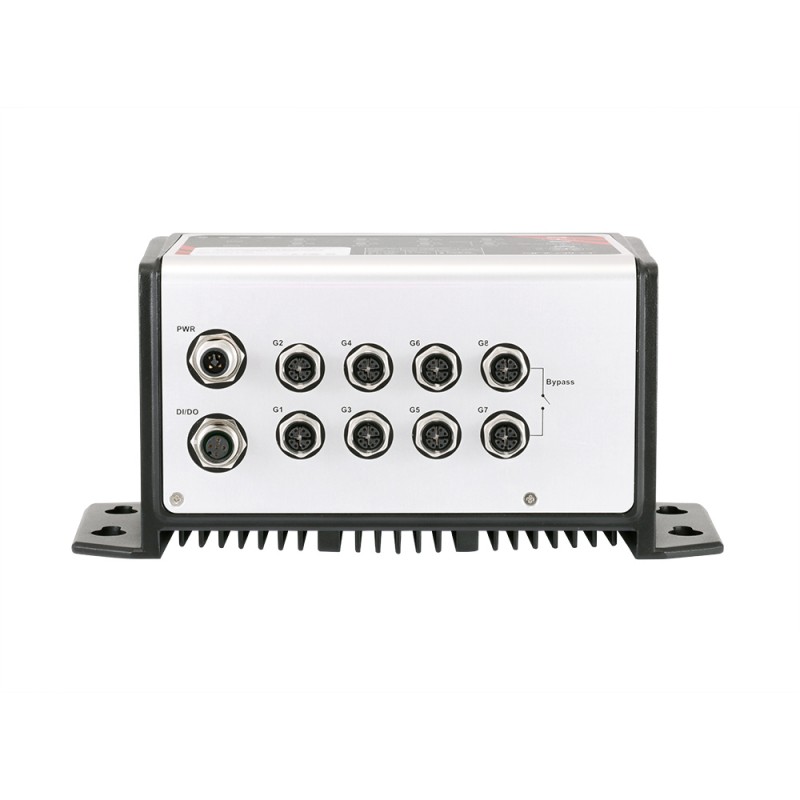

8-Ports industriel Gigabit IP67 Switch med PoE+, M12 connector (X-Coded), -10° to 60°C, 24-55VDC

8 x porte 10/100/1000Tx, IEEE 802.3at Compliant PoE+
Redundant forsyningsspænding: 24 - 55VDC
Indbygget Power Booster Design for PoE/PoE+
Indbygget relæ output - advarsel for Power/PoE Failure
Bypass Design for Daisy Chain Redundans
Digital Input/Digital Output
IP67 Rugged vandtæt Metal design
M12 X-Coded forbindelse for at sikre tæt og robust forbindelse
Væg montering
Driftstemperatur:-10° to 60°C
Dimensioner:253.57 x 122 x 116.12 mm (W x H x D)

ANR-LNP-0800G-M12-67
15.847,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Approval
EMI, EMS, FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A, CE EN 55024 Class A EN 61000-6-2 Class A IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Buffer
4Mbits
Certifications
FCC, CE, UL 61010-1, UL 61010-2-201
Chok/Vibration
IEC60068-2-6, IEC60068-2-27
Digital I/O
1*Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input current: 8mA
Dimensioner
253.57 x 122 x 116.12 mm (W x H x D)
Driftstemperatur
-10°C ~ 60°C
Ethernet
8*10/100/1000BaseT(X) with 8*PoE+, 8-pin M12 X-coded female connectors, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Forbindelse
Strøm: 1*M12, 4-pin T-coded, male connector
LED
Power 1, Power 2, Fault, PoE Load Ethernet Ports: On- link / Flash- data transmitting PoE: On- connected to PD devices
Luftfugtighed
5% to 95%, (non-condensing)
Materiale
Metal IP67 protection
Montering
Væg montering
PoE
30W max. per PoE port, Max 200Watts
Protokol
CSMA/CD
Standarder
IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT IEEE 802.3af/at Power over Ethernet
Strømforbrug
8 Watt
Strømforsyning
24-55VDC
