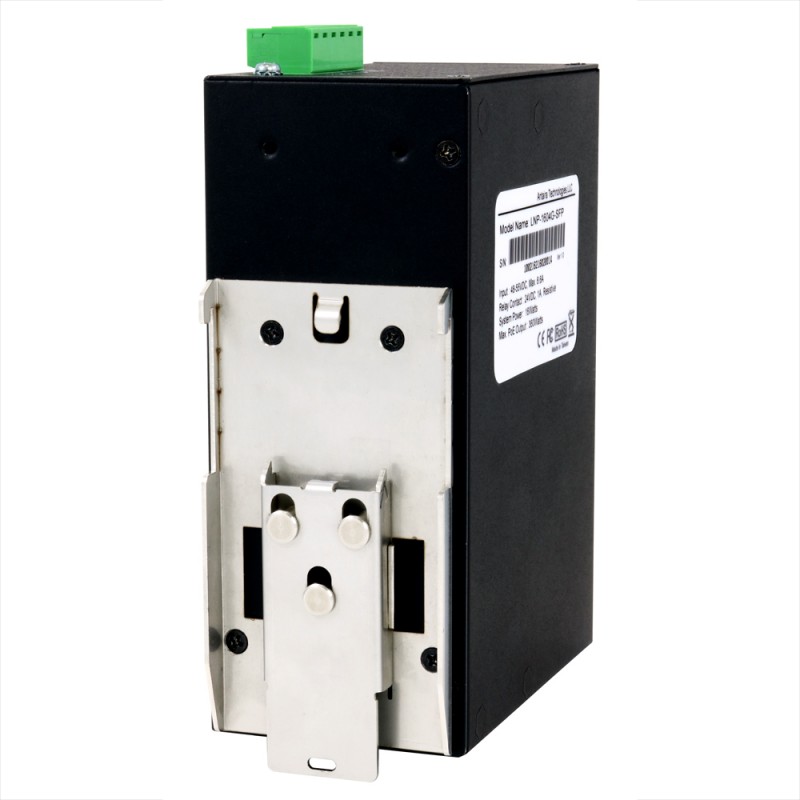

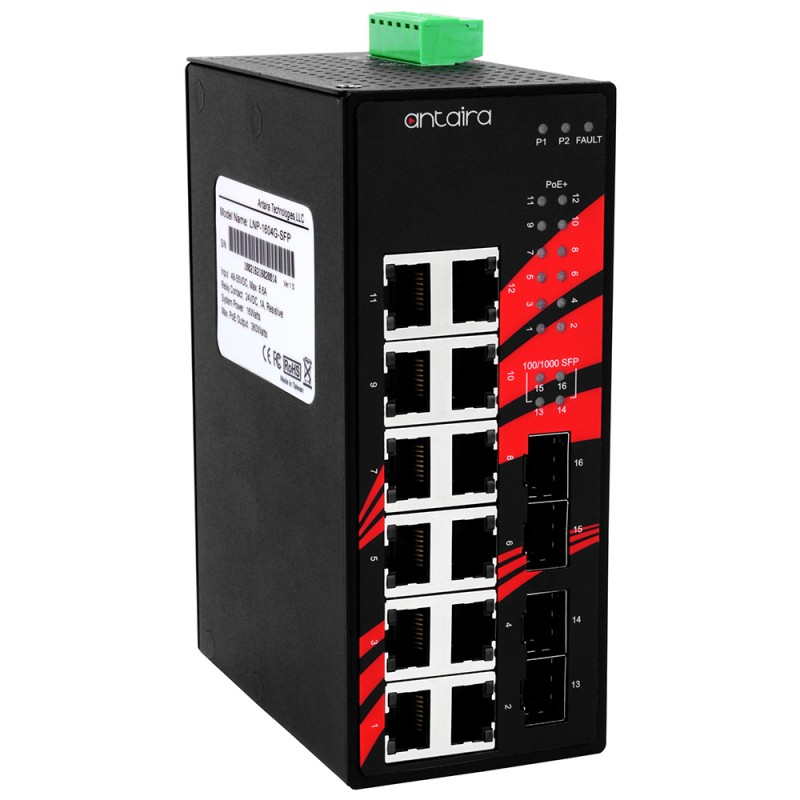

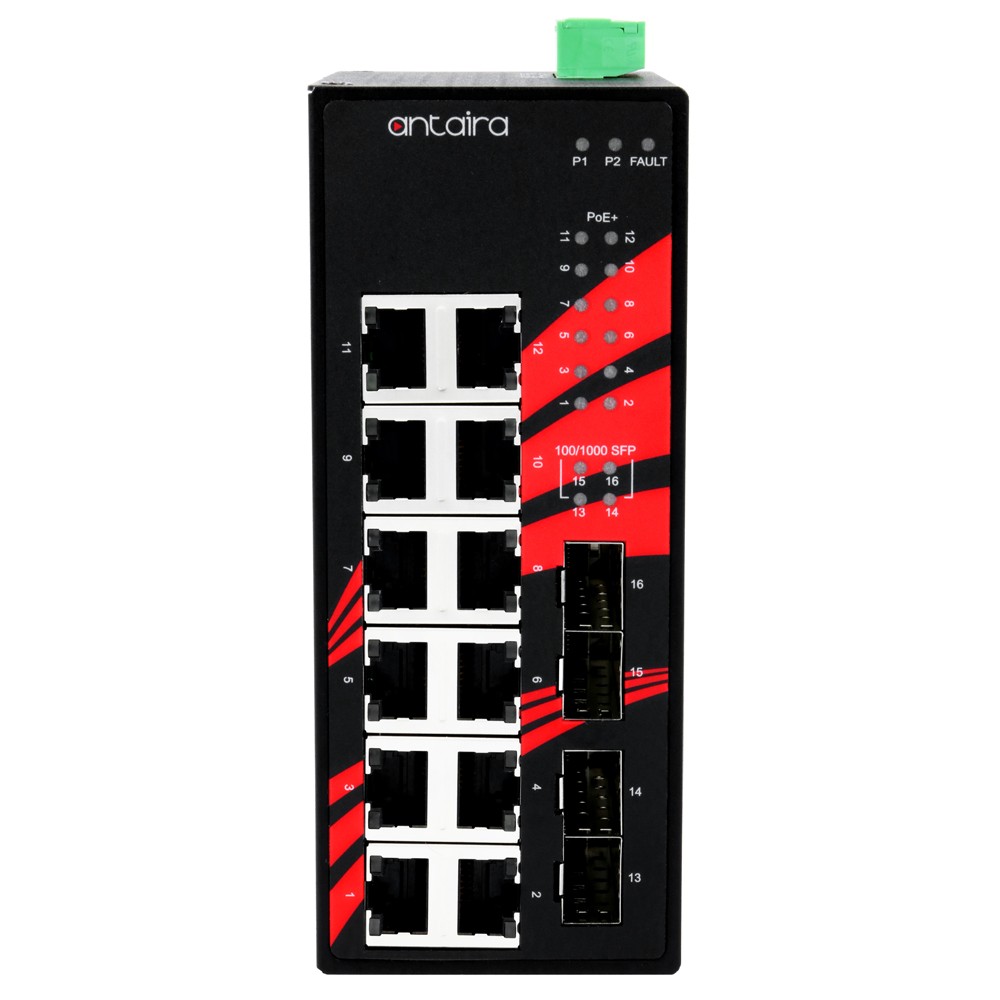

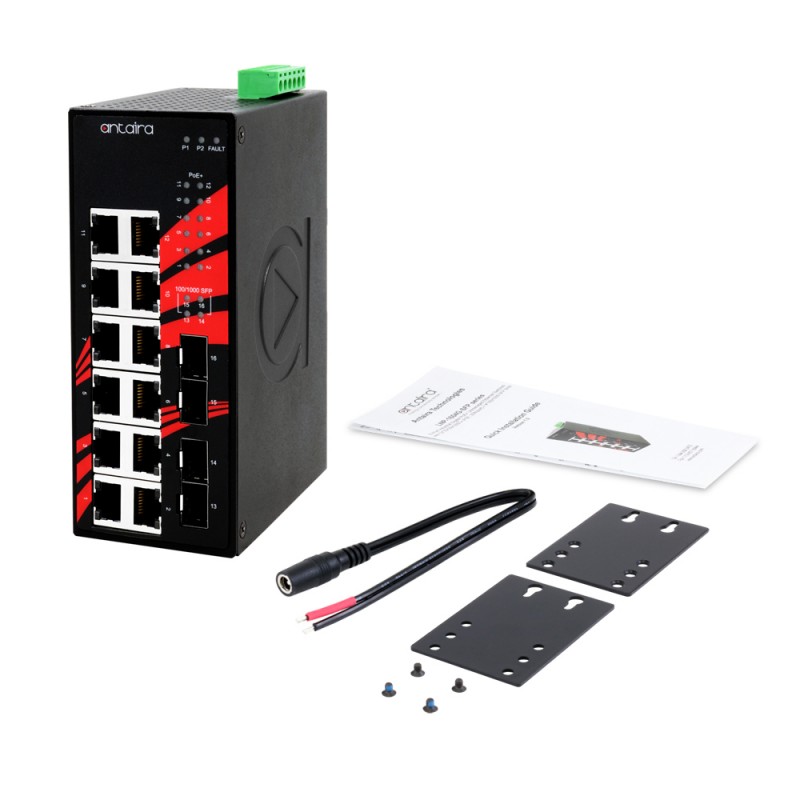

16-Ports Gigabit Switch med PoE+, unmanaged 12 x RJ45 porte og 4 x FTP porte, -40° til +75°C, 48-55VDC

12 x 10/100/1000Tx RJ45
PoE+ (30W / port) IEEE 802.3at
4 x 100/1000 SFP porte
Store-and-Forward Switching Architecture
8K MAC Address Table
12.2Kbytes Jumbo Frame
Surge Protection: 2,000 VDC
ESD Protection: 6,000 VDC
Forsyningsspænding: 48~55VDC
Indbygget relæ Output til Power Failure
IP30 Rugged Metal Case Design
DIN-Skinne og Væg montering
Driftstemperatur: -40° to 75°C

ANR-LNP-1604G-SFP-T
10.009,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål
Buffer
4 Mbit
Certifications
FCC, CE
Chok/Vibration
IEC60068-2-32, IEC60068-2-27
Dimensioner
59 x 99 x 142 mm (W*D*H)
Driftstemperatur
-40° to 75°C
Ethernet
12*RJ45 Ports w/10/100/1000Tx (w/PSE: 30W/port), auto negotiation speed, Full/Half duplex, and auto MDI/MDIX connection
Fiber
4*100/1000 SFP Slots
Forbindelse
1 removable 6-contact terminal block
Luftfugtighed
5% to 95%, (non-condensing)
Materiale
Metal, IP30 protection
Protokol
CSMA/CD
Relæ
24 VDC, 1A resistive
Standarder
IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3ab 1000BaseTx IEEE 802.3z Gigabit Fiber IEEE 802.3af/at Power over Ethernet
Strømforbrug
16W; (376W w/full PSE load)
Strømforsyning
48-55VDC
