6th / 7th Gen Intel® Skylake-S/ Kaby Lake-S i7 / i5 / i3 CPU
Intel® Q170 Express Chipset
2 x DDR4 SODIMM socket, Max. 64GB
Multiple Independent display: DP, HDMI DVI
2 x Intel GbE LAN
4 x USB 3.0
4 x COM
2 x PCIe x 8 (Option: 1xPCI, 1xPCIex)
2 x Mini PCIe
1 x M.2
2 x SIM

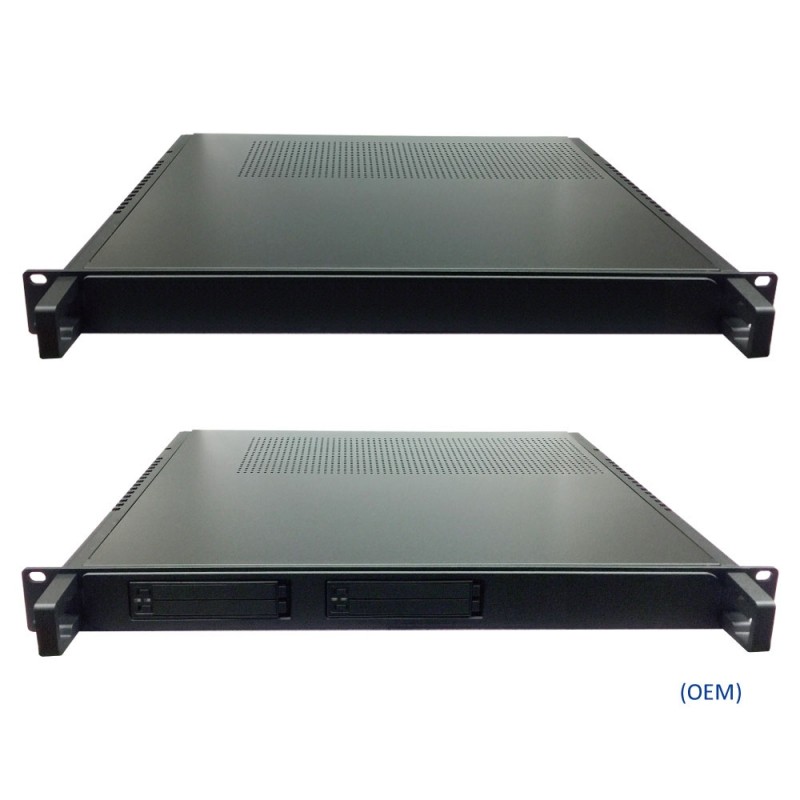

1U rackmount server design
| CPU | 6th / 7th Gen Intel® Skylake-S / Kaby Lake-S i7 / i5 / i3 CPU |
|---|---|
| Chipset | Intel® Q170 |
| USB | 4 x USB 3.0 |
| Driftstemperatur | (100 % CPU usage) -20°C to +60°C with mSATA / SSD 0°C to +50°C with HDD |
| Andet | OPTIONS GPS, Bluetooth, PoE, WiFi, 4G LTE, Isolated COM, battery UPS, DI/DO, Video Input *SATA Kit * Power adapter / Power Supply |
| Ethernet | 2 x RJ45 Intel GbE |
| Forsyning | 12Vdc external adapter 100/240Vac to DC 120W, Internal 150Watt |
| Hukommelse | 2 x DDR4 SODIMM, Max. 64GB |
| Luftfugtighed | 95% @ 40°C, non-condensing |
| M.2 | Storage |
| Msata | storage |
| OS SUPPORT | 7th Gen. Win10 IOT (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above 6th Gen. Win 10 IOT (64bit), Win 8.1 (64bit), Win Emb. 8 (64bit), Win. 7 (64bit), mbedded Sta 7 (64bit), Ubuntu 16.04.3 above, Fedora 26 above, CentOS 7.4 above |
| Porte | 4 x RS232 / 422 / 485 |
| SIM kort | 2x SIM Socket |
| SSD | 2.5" |
| Udgange | 1 x DP, 1 x HDMI, 1 x DVI |
| Udvidelser | 2 x PCIe x 8 (Optional) 1 x Full-size Mini PCIe (PCIe / mSATA / USB) 1 x Full-size Mini PCIe (PCIe / USB) |
| Dimensioner | (WxDxH) 440W x 360D x 44.3H mm(WxDxH) 440W x 360D x 44.3H mm |
Barebone 1 unit PC der konfigurer efter ønske.
Kan levere komplet og kører klram med CPU, RAM, SSD og OS.
