Automatisk printeromskifter til 2 PC til 2 printere IEEE1284 LPT parallelport til ældre udstyr
Flere PC'er deler en printer eller én PC kan benytte flere printere
Fanless
Support VESA mounting hole
Compact Flash Slot
On-board 10/100Mbps LAN
PXE diskless boot
Ultra Low Power (15 Watts)

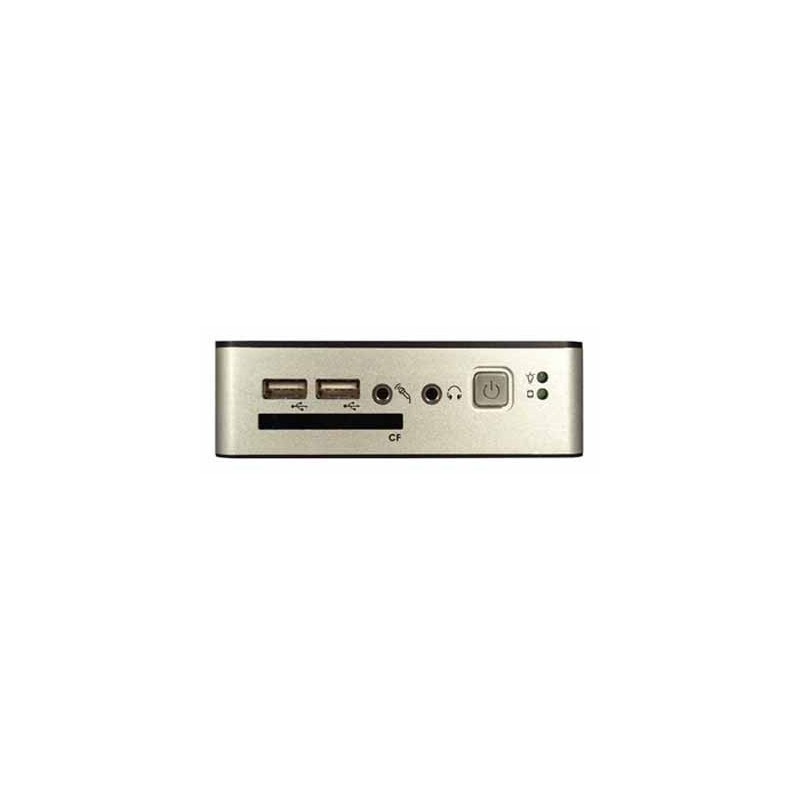

EBOX 2300
Processor
Vortex86 SoC-200MHz (Fanless)
Memory
128MB SDRAM onboard
Flash Memory
Support EmbedDsik 32MB to 2GB
VGA
Shared System Memory Area 8 MB
External 15-pin D-type female VGA connector
Ethernet Interface
Realtek 8100B single chip x 1 Throughput: 10/100 Mbps
I/O
Enhanced IDE interface, 44pin box header x 1
Type I/II Compact Flash Slot x 1
Mini PCI Socket x 1 (Optional)
RS-232 Port x 2 (Optional)
RJ-45 Ethernet Connector
External 6-pin Mini DIN for PS2 Keyboard
External 6-pin Mini DIN for PS2 Mouse
Audio
AC97 CODEC, Fully Compliant with AC97 V2.1
Phone Jack for MIC-in and Line-Out
USB
3 connectors (USB 1.1) (2 on Front)
Power Requirement & Management
Power Push Button x 1
Single Voltage +5V @2A, w/ ACPI function Support
Dimensions
115 x 115 x 35 mm
Weight
505g
Operating Termperaturet
0 ~ +60°C operating temperature
Certificate
CE,FCC
Flere PC'er deler en printer eller én PC kan benytte flere printere
Moderne ARCNET PC10420, PC/104 Bus-kompatibel
Micronet SP2515B
Standard: IEEE802.3u 100BASE-FX
Bus Interface: 32-bit bus master and PCI Revision 2.2
LED Display: LINK/ACT, FDX
Cable Connections: 62.5/125um Multi-mode fiber cable
Fiber Wavelength: 1310 nm
Software Compatibility:
NetWare Server 3.12, 4.1x, 5.x, 6.0
NetWare DOS client ODI
Windows 95/98/2000/XP/NT 4.0
Linux
Fiber Optic Connector: SC
Feature: Wake-On-LAN(*Note), 802.1p/q VLAN tag
Dimensions: 22.5(H) x 80(W) x 138(D) mm
Power Consumption: 5VDC, 1.0A
Operating Temperature: 0° ~ 50° C
Humidity: 5% to 90%
Emission: FCC Part 15 Class A, CE
