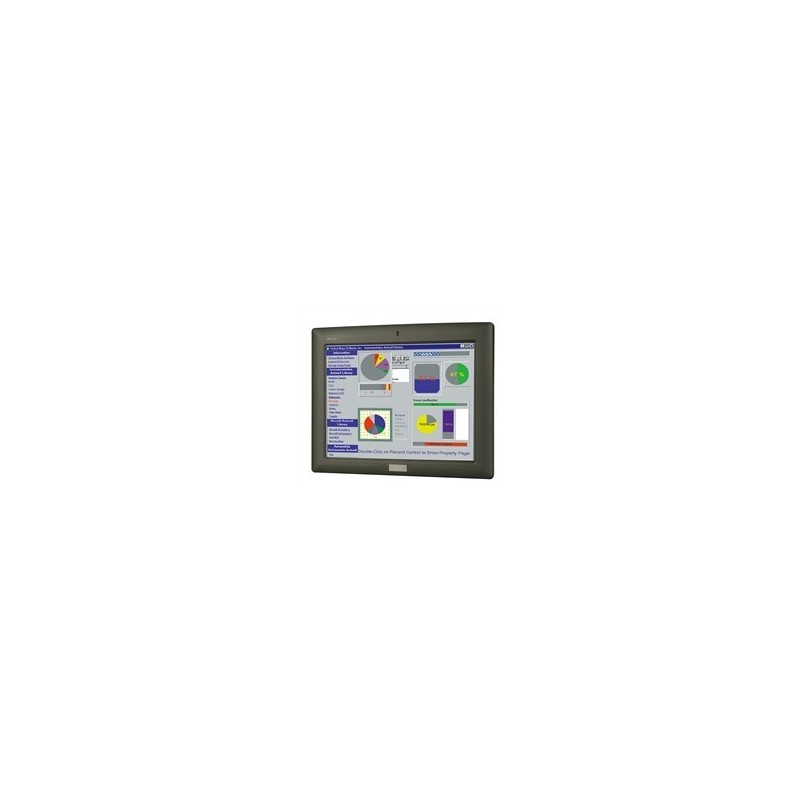

Resterende lager Panel PC 8,4" berøringsskærm Meddelelse om end of Life * Effektiv dato: 2017/12/31

LCD Size: 8.4"

Max Resolution: 800 x 600

Brightness (cd/㎡): 450

Contrast Ratio: 600:1

LCD Color: 262K

Pixel Pitch (mm): 0.213(H) x 0.213(V)

Viewing Angle (H-V): 160º / 140º

Backlight MTBF: 50000 hrs (LED Backlight)

SBC Model: AFLMB-LX800

CPU: AMD Geode™ LX 800 (500MHz)

Chipset: AMD LX 800 + AMD CS5536

RAM: Supports one 400MHz or 533MHz DDR SO-DIMM (Max.1GB)

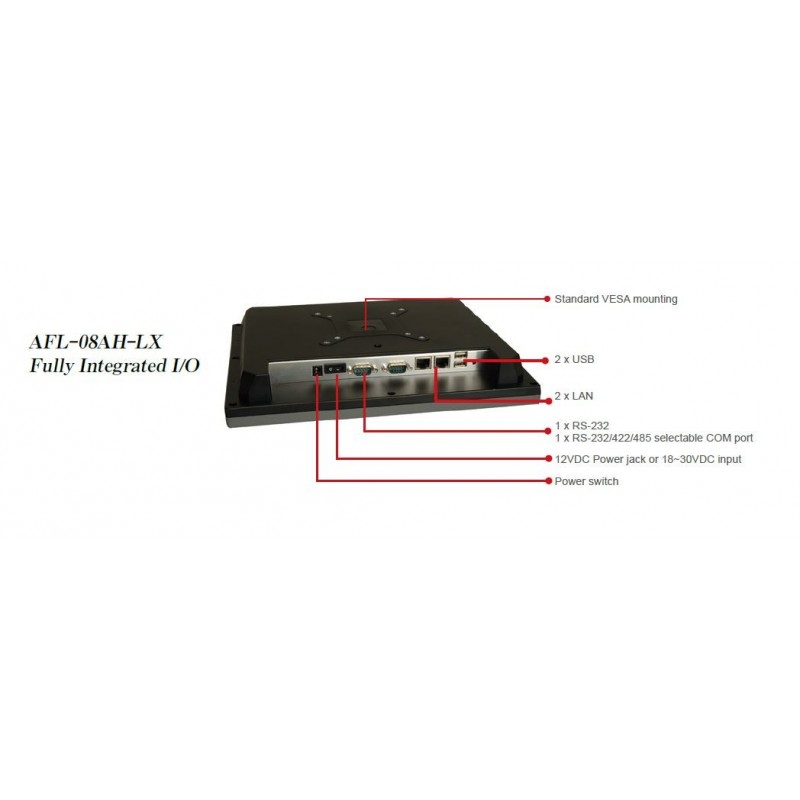

I/O Ports and Switches:

1 x RS-232 COM Port

1 x RS-232/422/485 COM Port

2 x RJ-45 for 10/100Mbps LAN
2 x USB 2.0
1 x Power Switch
1 x Reset Button
1 x Power Jack

SSD: CF Type II

Watchdog Timer: Software programmable supports 1~255 sec. System reset

Audio: AMP 1.5W + 1.5W (internal speaker)

Wireless: 1 x Wireless LAN 802.11 b/g Module (internal Mini PCI interface)

HDD Drive Bay: N/A

Touch Screen: 4-Wire Resistive Type (touch controller IC is on board)

Optional GPRS Module (support GSM 850, EGSM900, DCS 1800 & PCS, 1900): N/A

Construction Material: ABS + PC Plastic Plastic & Aluminum

Mounting: Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm

LED Function: 1 x Power ON/OFF LED on front panel

Front Panel Color: Gray 7539U

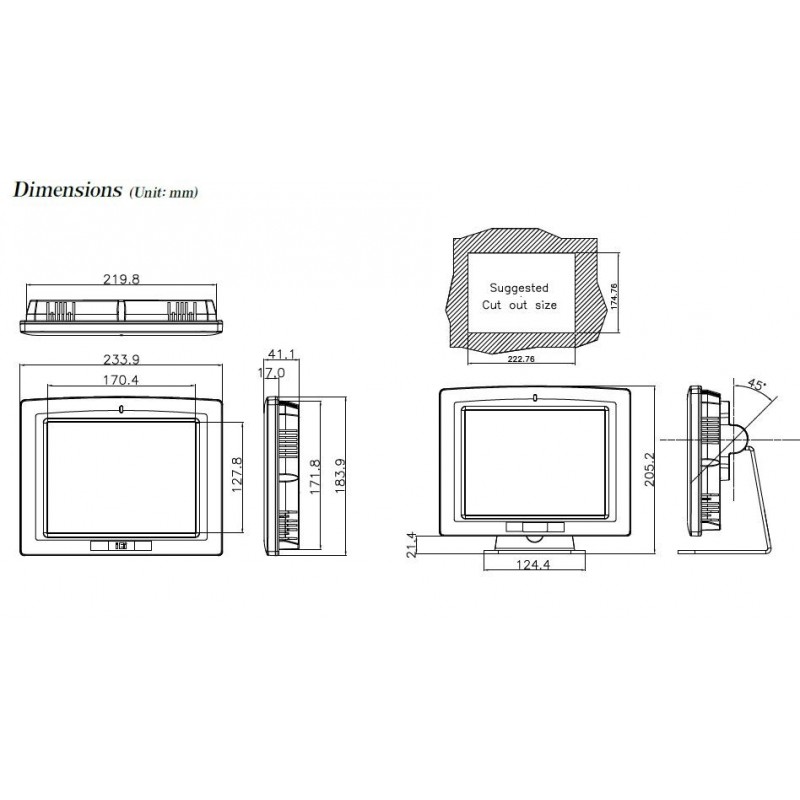

Dimension (WxHxD) (mm): 234 x 184 x 42

Operating Temperature (°C) (Ambient with air flow): 0°C~50°C

Storage Temperature (℃): -20°C~60°C

Weight: 0.8Kg

IP Level(front panel): IP 64 compliant front panel

Safety: CE / FCC

Power Adapter: P/N: 63000-FSP036RAB608-RS
36W Power Adapter (Meet PSE)
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC

Power Requirement: 12VDC

Power Consumption: 20W
