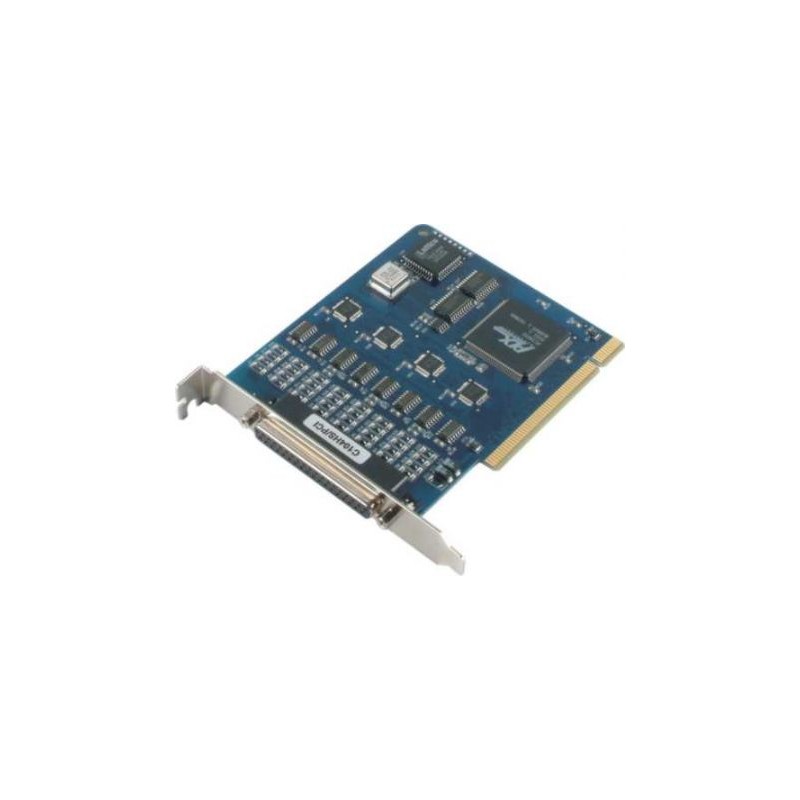

MOXA C104H/PCI, PCI kort med 4 x RS232 seriel porte, op til 921 Kb DB37 EOL

4-ports RS232 PCI/ISA-kort
Bus: PCI ver. 2.1 (32-bit
Op til 921,6 Kbps

Splitterkabel medfølger ikke!
DB37 kan bruges til 4xDB9M eller 4xDB25

EOL ikke længere i produktion! sidste stk på lager

SER4+F-PCI
1.900,00  DKK
Ekskl. moms
Antal
Fysisk på lager

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Hardware
Comm. Controller 16C550C or compatible x 4
Bus 32-bit, Ver. 2.1 PCI
Connector(s) Female DB37 (on the board)

Serial Interface
Serial Standards RS-232
Number of Ports 4
Number of Boards 4

Performance
Baudrate 50 bps to 921.6 Kbps

Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, even, odd, space, mark
I/O Address Assigned by BIOS
IRQ Assigned by BIOS

Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Driver Support
Operating Systems Windows 2000/XP/2003, Windows NT, Windows 95/98/ME, Windows XP Embedded, DOS, FreeBSD 4.x, Linux 2.2.x (Alpha), Linux Base, SCO Open Server 5, SCO UnixWare 2.1.x, SCO UnixWare 7

Physical Characteristics
Dimensions 120 x 100 mm (W x D)

Power Requirements
C104H/PCI: 110 mA max. (+5V),
44.8 mA max. (+12V),
16.2 mA max. (-12V)

Dimensioner
120 x 100 mm (W x D)
Driftstemperatur
0 to 55°C
Tilbehør
1 x C104H/HS unit 1 x support CD/DVD 1 x installation guide 1 x warranty statement
