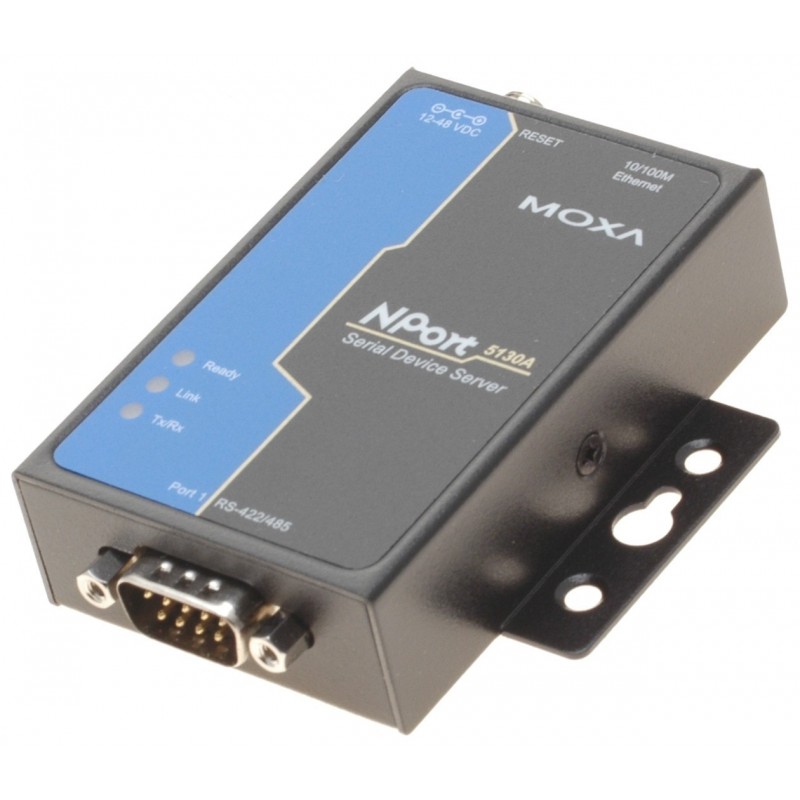

1 port serielportserver RS422/RS485, MOXA NPort 5130A. Serial Device Server

Ethernet Interface
Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface
Number of Ports: 1
Serial Standards:
NPort 5130A: RS-422/485
Connector: DB9 male
Serial Line Protection: 15 kV ESD protection for all signals, Level 1 Surge, EN61000-4-5
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kΩ, 150 kΩ

Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Baudrate: 50 bps to 921.6 kbps

Serial Signals
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND

Software
Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet,
DNS, SNMP V1, HTTP, SMTP, IGMP V1/2
Configuration Options: Web Console (with new Quick Setup), Serial
Console (NPort 5110A/5150A only), Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows
XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012
R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX
4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics
Housing: Metal
Weight: 340 g
Dimensions:
Without ears: 52 x 80 x 22 mm
With ears: 75.2 x 80 x 22 mm

Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C
Wide Temp. Models: -40 to 75°C
Storage Temperature: -40 to 75°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.
Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption:89.1 mA @ 12 V, 49.5 mA @ 24 V
