1 port MODBUS serielportserver, RS232/RS422/RS485 Modbus over ethernet. Kan køre Modbus TCP Master
MODBUS
Serial Device Server
1 x RS232/422/485 port
Atop MB5001C
WIN XP/7/8/ WIN 10
Webserver Config.
9 ~ 30 VDC

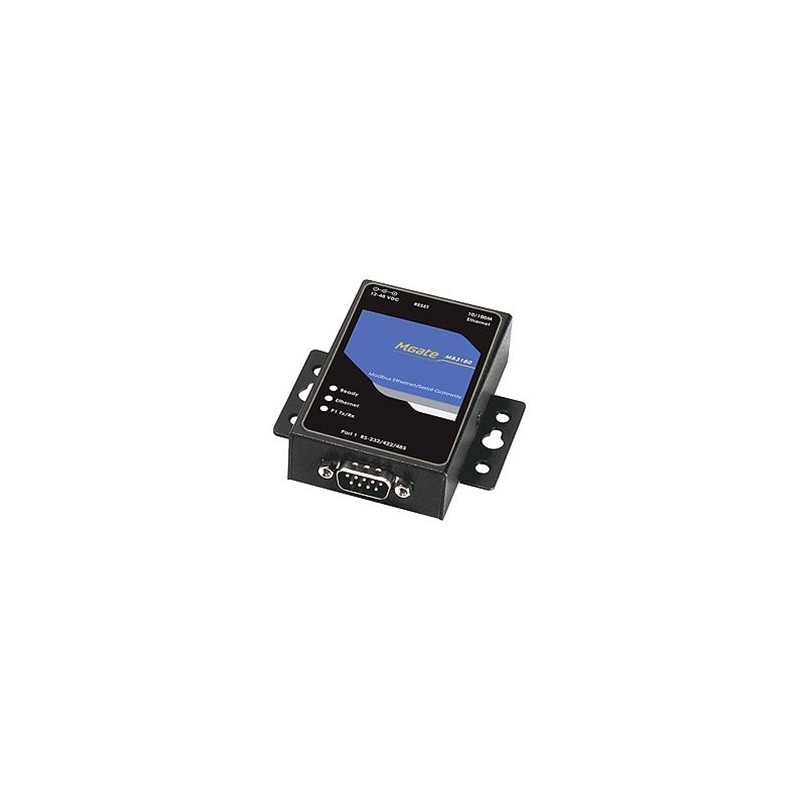

Moxa MGATE 3180 1port RS232/422/485 Modbus TCP to serial.
Convert between Modbus TCP and Modbus RTU/ASCII
1 Ethernet port and 1, 2, or 4 RS-232/422/485 ports
Supports 16 simultaneous TCP masters with up to 32 simultaneous requests per master
Easy hardware setup and configuration
Ethernet Interface:
Protocol: Modbus TCP
Number of Ports: 1
Speed: 10/100 Mbps, Auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface:
Protocol: Modbus RTU/ASCII Slave/Master
Number of Ports: 1
Serial Standards: RS-232/422/485, software selectable
Connectors: DB9 male
ESD Protection: 15 kV for all signals
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Flow Control: RTS/CTS, DTR/DSR (RS-232 only)
Baudrate: 50 bps to 921.6 kbps
Serial Signals:
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Software:
Configuration Options: Web Console, Serial Console, Telnet Console, Windows Utility
Utilities: MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)
Multi-master and Multi-drop: Master mode: 32 TCP slaves
Slave mode: 16 TCP masters (request queue 32-deep for each master)
Support Smart Routing, MXview, SNMP v1 (read only)
Physical Characteristics:
Housing Metal, IP30 protection
Weight: 340 g
Dimensions Without ears:
MB3180: 22 x 52 x 80 mm
With ears:
MB3180: 22 x 75 x 80 mm
Environmental Limits:
Operating Temperature: 0 to 60°C
Storage Temperature: -40 to 85 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements:
Input Voltage 12 to 48 VDC
Power Connector: Power jack
Power Consumption: 200 mA (max.)
MODBUS
Serial Device Server
1 x RS232/422/485 port
Atop MB5001C
WIN XP/7/8/ WIN 10
Webserver Config.
9 ~ 30 VDC
Modbus over ethernet eller internet
MODBUS server med 1 x RS232 og 1 x 422/485
Kan køre Enhed til enhed
0/100 Mbps Ethernet-port, auto MDI / MDIX, 10/100 auto, 1500V magnetisk isolering Kun på RS485
RS232 Modbus ASCII / RTU-port, 1 RS422 / 485 Modbus ASCII / RTU-port, 16V / 400W TVS isoleret, RS485 automatisk linjekontrol
9 ~ 30VDC strømindgang, IP30-kabinet, DIN-skinnemonteringsstruktur, USB-port (Modbus seriel portudvidelse og opsamlingshukommelse)
Intelligent CAN til MODBUS TCP/IP konverter
Understøtter både CAN-specifikation 2.0A og 2.0B
Maksimal transmissionshastighed op til 1M bps for CAN og 115,2 kbps for RS-232 RS-485
Maksimal transmissionsafstand på CAN over 1000m (følg CAN-specifikationen)
7-segment LED-display til Modul IP, RS-232 baudrate, CAN-konfiguration...
Supporterer webkonfiguration
Understøtter maksimalt 24 Ethernet-klienterforbindelse
Modbus TCP/RTU-kommando til læsning og skrivning af CAN-meddelelse
Transparent kommunikation mellem CAN-enhederne via Ethernet
30 specifikke CAN ID'er i Modbus TCP/RTU-tilstand
DIN montering
1 kanal software-valgbar RS-232/485/422-port
Baud rate: 1200 - 230.400 / RS485 921.600
1 x 10/100 Mbps RJ45 Fast Ethernet-port
Understøtter TCP-server/klient-, UDP-, Virtual COM- og Tunneling-tilstande
Modbus TCP/RTU/ASCII
Konfiguration via webserversiden, Telnet-konsollen og Windows Utility
Opgraderbar firmware via Ethernet fra en fjern-pc
Robust metalbeklædning; industriel EMC-beskyttelse
Redundante dobbelte jævnstrømsindgange til non-stop drift
Valgfri DIN-skinne montering
Forsyning: 9 - 30VDC eller 5VDC / 9W
Mål: 78 x 65 x 28 mm
Temp: -40 - +70°C
