8 analoge indgange, op til +/-10V, 16 bit, MODBUS RTU, RS485 bus

ANALOGT INPUT MODUL TIL MODBUS

8 kanals differential analog indgang
Spænding og strøm indgang (husk shuntmodstand på 125 ohm)
+/-120 VDC overspændings beskyttelse
16bit opløsning
Open Wire detektering på 4 ~ 20 mA
3000 VDC Isolation
Dual Watchdog
Udvidet temperaturområde: -25°C ~ +75°C

MOD485-IO8AI
2.265,00  DKK
Ekskl. moms
Antal
På vej ind

  • Download PDF
  • file_download Downloads
  • live_help Stil et spørgsmål

Modbus 8 Channel Data Aquisition Module

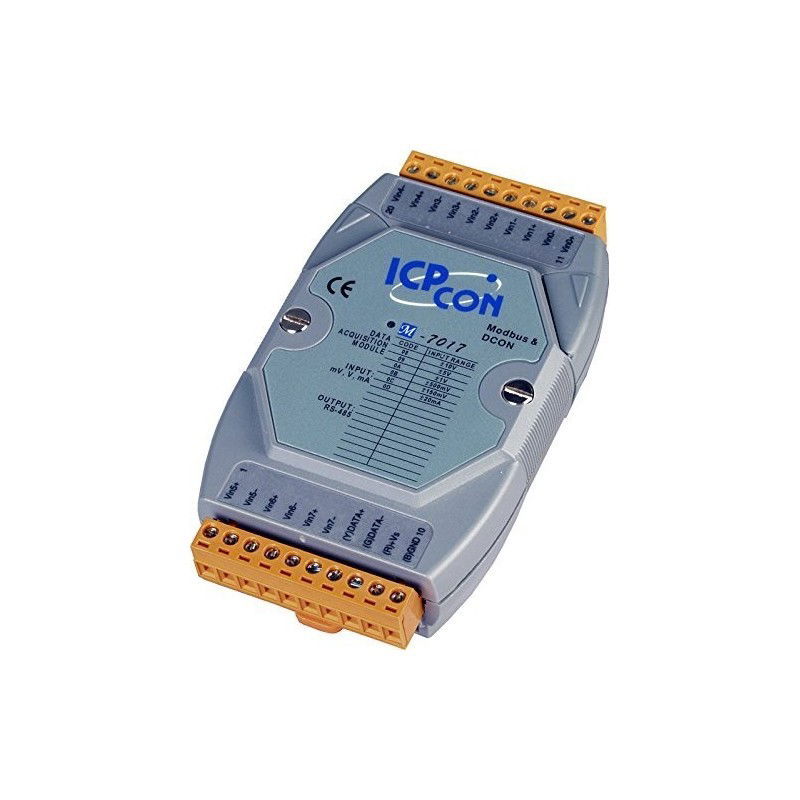

MOD485-IO8AI M-7017 is an analog input module that provide 8 differential input channels. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels.

Andet
+/-35 VDC Overvoltage Protection
Baudrate
1200 ~ 115200 bps
Driftstemperatur
-25C to 75C
Indgangsimpedans
20 MΩ
Input
+/-150 mV, +/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA 0 ~ 20 mA, 4 ~ 20 mA (requires optional external 125 Ω resistor)
Installation
DIN-Rail or Wall Mounting
Interface
RS-485
Isolation
3000 VDC
Luftfugtighed
10 ~ 95% RH, Non-condensing
Opløsning
16-bit
Output
10 ~ 30 VDC
Protokol
Modbus RTU, DCON
