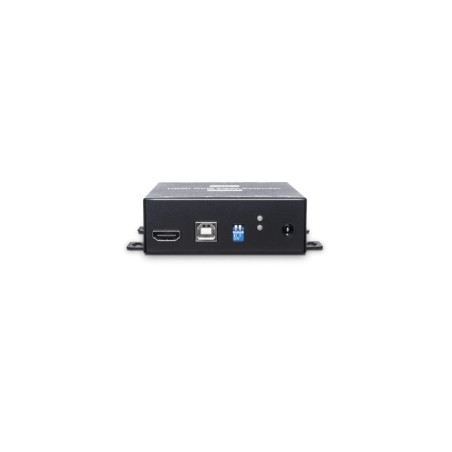

4K@60Hz (4:4:4) HDMI transmission over fiber

Up to 60 km single-mode or 300 m multimode distance

USB KVM, IR, RS232 control capability

Latency less than one video frame

Supports HDMI 2.0, HDCP 2.2, HDR, 3D

Power: 5 V DC, 2 A; maximum consumption ~5 W.

Operating temperature: -10 to 45 °C; storage: -30 to 70 °C.

Full audio support: LPCM 7.1, Dolby TrueHD, DTS-HD MA, ATMOS, DTS:X

4K@30Hz (4:4:4) video capability

Transmission distances: 120 m (CAT5e), 140 m (CAT6), 60 km (fiber)

Local HDMI loop-out on transmitter for nearby display

4 USB 2.0 ports at receiver end for remote peripherals

Bi-directional audio, IR & RS232 control support

Operating Temperature: 0 to 55℃

Power Supply: DC 5V 2A

EDID management & compatibility with IP repeater modules

Supports up to 4K@30Hz (4:4:4) resolution

Transmission distance up to 1 km via single-mode fiber, 300 m via multimode fiber

Built-in LC fiber connector for simplicity and compatibility

EDID bypass ensures proper display and source device negotiation

Low latency plug-and-play design—dongle-style form factor with USB power

Operating Temperature: -20 to 70℃

Power Supply: TX: 5V 1.5A, RX: 5V 1.5A

LED status indicators for easy monitoring

Supports resolutions up to 4K@60Hz (4:4:4)

Transmission up to 100 m via Cat5e/6 or 60 km via fiber (SFP module)

HDMI loop-out on the transmitter

4× USB 2.0 ports on the receiver (KVM functionality)

Bi-directional analog audio, RS232, and IR control

Low power consumption, compact design

Power supply: TX: 5V 2A, RX: 5V 2A

Operating Temperature: 0-55℃

Ideal for control rooms, digital signage, and industrial environments.

HDMI and USB over fiber
Video resolution max up to 4Kx2K@60Hz(4:2:0), 4K*2K (3840x2160@30Hz), 1080P@120Hz and 1080P 3D@60Hz.
Transmits HDMI signals up to 10 km (6.2 miles) through a single LC/LC single core fiber optic cable.
Compatible with Multi Mode fiber cable, up to 300 meters
Equipment with two 10G SFP Optical modules.
USB 1.1 only Keyboard and mouse
Supports up to 7.1 channel and LPCM, Dolby TrueHD, DTS-HD Master Audio.
Compliance with HDMI 1.4 standard.
High compatibility, can automatically match source and display device.
Built-in automatic adjustment system, makes the image smooth, clear and stable.
Simple to install, plug and play.
DC5V/2A power supplies (2) included

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
100 meters
non-galvanically isolated
Supply From HDMI Source

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Also supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
30 meters
non-galvanically isolated
Supply From HDMI Source

Ultra resolution 8K 7680 x 4320
Backwards compatible
Built-in network channel (ethernet)
Earc (Enhanced Audio Return Channel)
Also supports ARC (Audio Return Channel)
One- way transmision
Bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable Thickness: 4.8mm
20 meters

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
15 meters
non-galvanically isolated
Supply From HDMI Source

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel) Also supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
10 meters
non-galvanically isolated
Supply From HDMI Source

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Also supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
5 meters
non-galvanically isolated
Supply From HDMI Source

Hybrid HDMI fiber optic with DC to receiver
ultra resolution 8K, 7680 x 4320
backward compatible
built-in network channel (Ethernet)
EARC (Enhanced Audio Return Channel)
Also supports ARC ( Audio Return Channel)
one-way transmission
bandwidth: 48Gbps
Supporter HDCP2.2 / CEC / EDI
Cable thickness: 4.8mm
2 meters
non-galvanically isolated
Supply From HDMI Source
