Find here a selection of DisplayPort (DP) devices. Contact us if you have specific requests.
DisplayPort is data-wise different from other forms of digital video. The digital communication is similar to that used in Ethernet, USB and PCI Express. The DisplayPort protocol based on micro-data packets. This allows for higher resolution, expandable without major changes in the physical interface. DisplayPort can transmit audio and video simultaneously or separately. Video signal can be up to 16bit per color and up to 8 audio channels with 24-bit, 192 kHz PCM sound. A semi-duplex channel is data such as VESA EDID, MCCS- and DPMS and two-way USB.
DisplayPort uses LVDS protocol, which is not compatible with DVI or HDMI. DualPort DisplayPort is designed for single link DVI or HDMI (TMDS) with external passive adapter. This adapter converts the signal from 3.3 volts to 5 volts logic. Conversion to analog video VGA/Component/Dual-link DVI requires active adapter. Active VGA converters can be driven directly by the DisplayPort port.

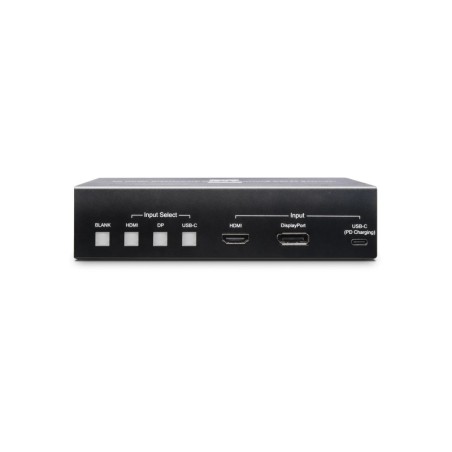

Supports input via HDMI, DisplayPort, or USB-C (DP Alt-Mode)
Extends one selected input at 4K@30Hz (4:4:4) over network cabling
Up to 120 m over CAT5e, 140 m over CAT6
Daisy-chain capability to support up to 250 displays
Automatic / manual input switching plus one-button EDID management
Operating Temperature: 0 to 70℃
Power Supply: DC15V 2.6A (39W) / DC5V 3A(15W)
Controls via RS-232, I/O trigger, panel buttons

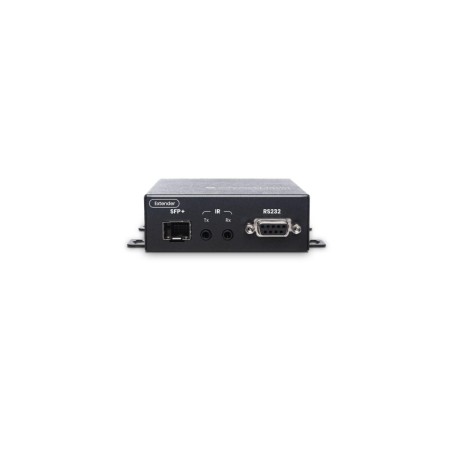

Delivers 4K@60Hz (4:4:4) over DisplayPort with HDCP 2.2 compliance
Fiber extension: up to 60 km with single-mode, 300 m with multi-mode
KVM functionality: USB for keyboard & mouse, full-duplex RS232, bi-directional IR (30-60 kHz)
DisplayPort input and output with SFP+ 10G module support
Robust design: operates from -10 °C to +45 °C, compact form-factor (~109.6 × 114.5 × 30 mm)
Low power usage: 5V-2A supply, ~5.5 W consumption, with reliability for long-distance transmission and remote control.
4K@30Hz (4:4:4) Video uncompressed DisplayPort up to 150 m over CAT5e/CAT6
4× USB 2.0 Ports connect keyboard, mouse, flash drives, cameras remotely
Bi-directional RS232 full control of connected devices from either end
High-Definition Audio supports LPCM 7.1, Dolby TrueHD, DTS-HD Master Audio
Robust & Reliable industrial-grade design, wide operating temperature range (-10 °C to 45 °C)
Easy Installation powered via 5V 2A adapters (TX & RX included)
DisplayPort KVM extender, 4K@60Hz and HD
100 - 150 meters with cat. 6a patch cable (need good quality cable!)
Up to 100 meters with 4K@50Hz
4 x USB 2.0 ports on the remote module
1 x USB B on local module
Transparent USB for K/M, USB drive, HDD etc.
2-way audio transmission - 3.5 mm Jack
DP1.2, HDCP1.3, USB2.0 compatible and Blu-Ray
Point-to-point cable connection
HDBaseT 2.0: Good EMI immunity
Supply voltage: 12VDC / 1.5A PSUs included
Consumption: 10W
Dimensions: 125 x 123 x 32 mm
Operating temperature: 0 - + 45°C
DisplayPort (DP) Cable
perfect alternative to HDMI Extender
Ultra solution 8K, 60Hz
AOC (Active Optical Cable)
4-core optical fiber
Plug and Play
HDR RGB 4: 4: 4 (high Dynamic Range)
32.4Gbps bandwidth up to 100m
Supports 3D visual effects
Cable thickness: 5mm
8 meter
black
24K Gold plated
Non isolated
DisplayPort (DP) Cable
perfect alternative to HDMI Extender
Ultra solution 8K, 60Hz
AOC (Active Optical Cable) to 4-core optical fiber
Plug and Play
HDR RGB 4: 4: 4 (high Dynamic Range)
32.4Gbps bandwidth up to 100m
Supports 3D visual effects
Cable thickness: 5mm
20 meter
black | 24K Gold plated
Non isolated
DisplayPort (DP) Cable
perfect alternative to HDMI Extender
Ultra solution 8K, 60Hz
AOC (Active Optical Cable) to 4-core optical fiber
Plug and Play
HDR RGB 4: 4: 4 (high Dynamic Range)
32.4Gbps bandwidth up to 100m
Supports 3D visual effects
Cable thickness: 5mm
50 meter
black
24K Gold plated
Non isolated
DisplayPort (DP) Cable
perfect alternative to HDMI Extender
Ultra solution 8K, 60Hz
AOC (Active Optical Cable) to 4-core optical fiber
Plug and Play
HDR RGB 4: 4: 4 (high Dynamic Range)
32.4Gbps bandwidth up to 100m
Supports 3D visual effects
Cable thickness: 5mm
70 meter
black
24K Gold plated
Non isolated
DisplayPort (DP) Cable
perfect alternative to HDMI Extender
Ultra solution 8K, 60Hz
AOC (Active Optical Cable) to 4-core optical fiber
Plug and Play
HDR RGB 4: 4: 4 (high Dynamic Range)
32.4Gbps bandwidth up to 100m
Supports 3D visual effects
Cable thickness: 5mm
100 meter
black
24K Gold plated
Non isolated
DisplayPort (DP) Cable
Perfect picture quality
Ultra Resolution 8K at 60Hz, 4K@144 MHz
Plug and Play
Direction source to display
32.4Gbps Bandwidth
POC - Remote unit Power supplied in cable
Non isolated
High End DisplayPort Extender
Resolution Up to UHD 4K, 3840 x 2160 @ 30Hz
single cable, CAT 6A up to 100 m
point-to-point connection
Plug and Play; No software drivers required
with Edid
supply voltage: 12VDC - Both TX and RX
can power the other device over the patch cable
Dim: 102 x 66 x 30 mm
DisplayPort booster up to 70 meters
Via RJ45 CAT5e / 6
4K @ 30Hz / 4: 4: 4 at 40 meters
1080p @ 60Hz 16bits at 70 meters
Audio: up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA
1 x DisplayPort
1 x RJ45
1 x DC 5V 2A to each unit
Operating temperature: -10 to 45 ℃
Dimensions: 92 x 69 x 25 (mm)
Weight: 160g (Sender)
Weight: 180g (receiver)
