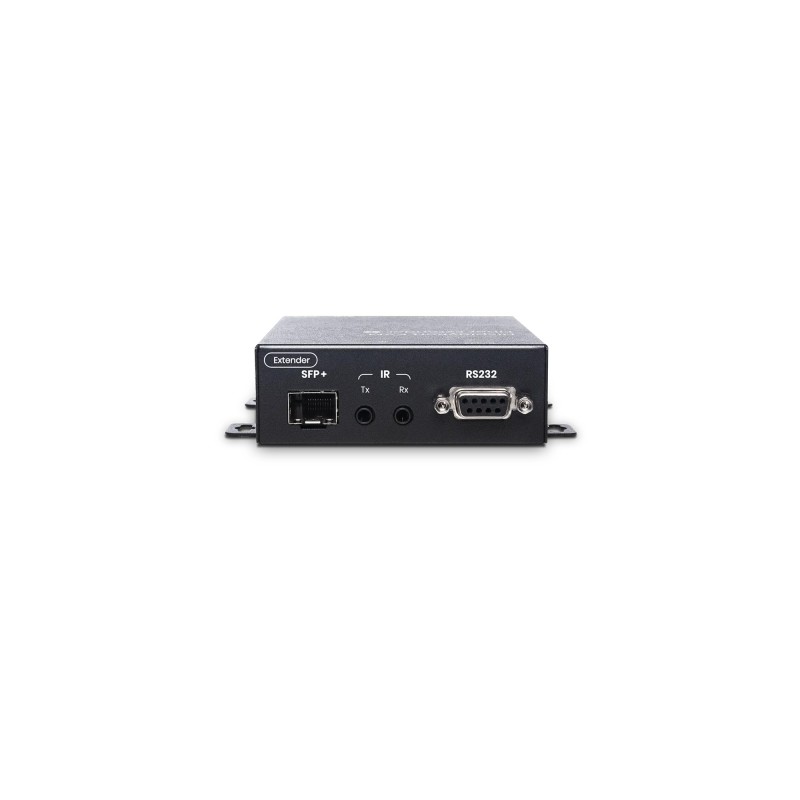

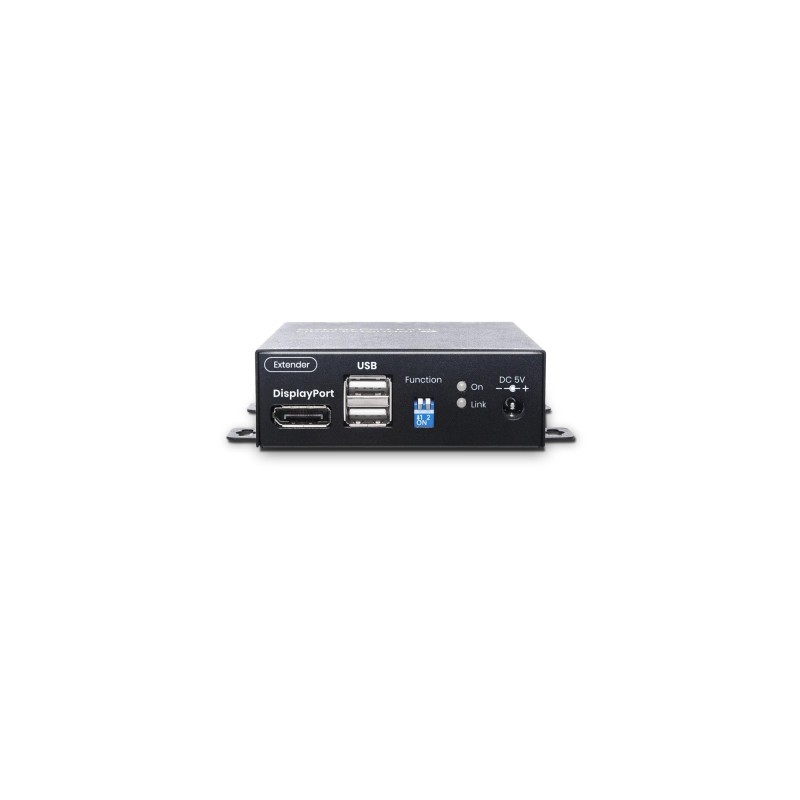

4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232
4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232
4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232
Previous
Next
4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232
4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232
4K60 DisplayPort Fiber KVM Extender 60 km / 300 m with USB, IR & RS232

DisplayPort 4K60 KVM Fiber Extender 60 km (Single-Mode) / 300 m (Multi-Mode) with USB, IR & RS232

Delivers 4K@60Hz (4:4:4) over DisplayPort with HDCP 2.2 compliance

Fiber extension: up to 60 km with single-mode, 300 m with multi-mode

KVM functionality: USB for keyboard & mouse, full-duplex RS232, bi-directional IR (30-60 kHz)

DisplayPort input and output with SFP+ 10G module support

Robust design: operates from -10 °C to +45 °C, compact form-factor (~109.6 × 114.5 × 30 mm)

Low power usage: 5V-2A supply, ~5.5 W consumption, with reliability for long-distance transmission and remote control.

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number BOOST-DP60K-U-4K6
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Input TX: DisplayPort, RX: SFP+ 10G
Output TX: SFP+ 10G, RX: DisplayPort
Operating Temperature -10 to 45℃
Resolution Max: 4K@60Hz 4:4:4
Power Supply 5V 2A

Top-tier DisplayPort KVM extender over fiber, engineered for ultra-long-distance AV installations requiring high fidelity, remote control, and reliable performance. It supports native DisplayPort 1.2 with 4K@60Hz (4:4:4) resolution and complies with HDCP 2.2, ensuring full compatibility with protected content.

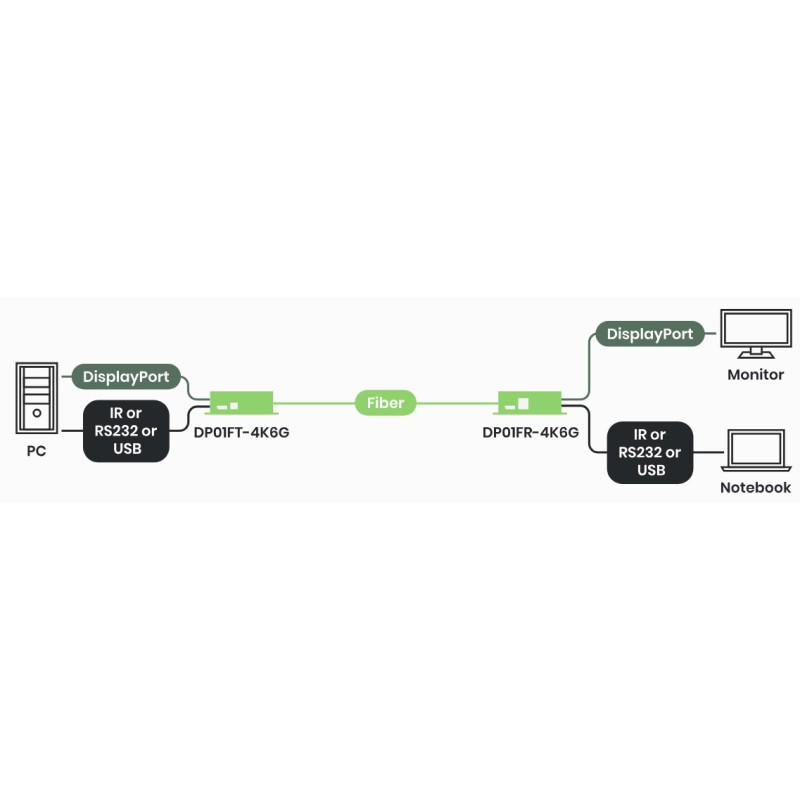

Using SFP+ fiber modules (10G), this unit can transmit video, audio, USB (for keyboard & mouse), RS232, and bi-directional IR over distances up to 60 km when using single-mode fiber, or up to 300 m with multi-mode.

Control flexibility is built in: full-duplex RS232 (115,200 bps), bi-directional IR (30-60 kHz), and two USB ports for keyboard / mouse. A selector switch lets you choose which remote control channel to use.

This fiber extender is ideal for applications such as broadcast, medical imaging, control rooms, data centers, large digital signage installations, or any use case where long fiber runs are needed without sacrificing visual clarity or control.


  • Delivers 4K@60Hz (4:4:4) over DisplayPort with HDCP 2.2 compliance
  • Fiber extension: up to 60 km with single-mode, 300 m with multi-mode
  • KVM functionality: USB for keyboard & mouse, full-duplex RS232, bi-directional IR (30-60 kHz)
  • DisplayPort input and output with SFP+ 10G module support
  • Robust design: operates from -10 °C to +45 °C, compact form-factor (~109.6 × 114.5 × 30 mm)
  • Low power usage: 5V-2A supply, ~5.5 W consumption, with reliability for long-distance transmission and remote control.
