With PoE

Managed Poe+ Switch with 48 x RJ45 and 4 x SFP + slot
48 x RJ45 10/100/1000Mbit with PoE+
Up to 36 watts per port - max. Total 400W / 720W
720watt at both 230VAC and 56VDC Input
4 x SFP + slot for 1Gbit / 2.5Gbit and 10Gbit SFP Fiber modules
Redundant Ring, Fast Recovery
Layer 3 VLAN routing
Internal temperature control
IGMP Snooping, Spanning Tree Protocol
MLD Snooping (IPv6)
Management, SNMP, DHCP Server, SMTP
Redundant Voltage Supply Input
Dim: 440 x 300 x 45 mm (1U)
Weight: 5kg
Operating temperature: 0 - +50°C
Supply voltage: 100 - 250VAC, 36 - 60VDC

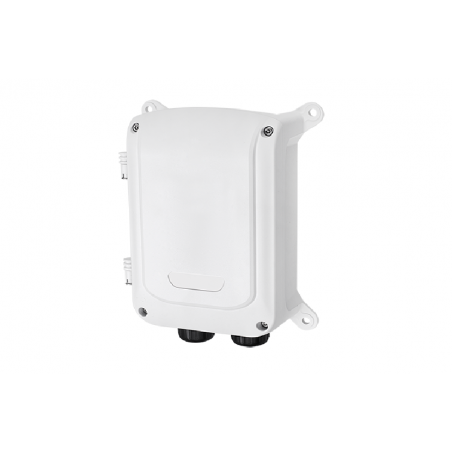

Unmanaged Switch
2 x RJ45 port 10/100/1000Mbit
2 x 100/1000X SFP-port
Samlet PoE effektbudget: 120W
2x60W PoE ELLER 1x90W PoE+1x30W
PoE standart: IEEE 802.3bt
IP67, IK10
Driftstemperatur: -40°C ~ 65°C
Option: PoH 100W / Managed

Unmanaged Switch
4 x RJ45 PoE++ port 10/100/1000Mbit
2 x 100/1000X SFP-port
Samlet PoE effektbudget: 250W
4x60W PoE ELLER 2x90W PoE+2x30W
PoE standart: IEEE 802.3bt
IP67, IK10
Driftstemperatur: -40°C ~ 65°C
Option: PoH 100W / Managed

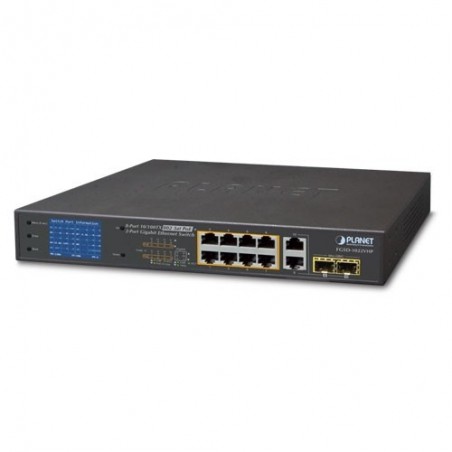

Managed 8 + 2 Ports Gigabit PoE+ Switch
4 x RJ45 ports are up to 2.5Gbps with PoE++ (95W)
4 x RJ45 ports are up to 1Gbps with PoE+ (36W)
PoE Power Budget Is 240 Watts
with PoE insulation
2 x SFP slot for 1G, 2.5G and 10Gbit SFP module
RJ45 type RS232 console interface for switch control
up to 95W to 802.3BT / POH units
Detects automatic PoE Suitable devices (PD)
IGMP Snooping
Link Aggregation
Cyper Security
PoE Up to 100 meters
Dim: 330 x 200 x 45 mm
Supply voltage: 100 - 240vac

4x 30W 56VDC IEEE802.3at PoE port
1x 56/24VDC PoE port
1x SFP Port
2x 48-56VDC Indgang
Driftstemperatur -40°C - 75°C
10/100/1000Mbps Data Rates
Total Power Budget 120W

Flexible modular configuration, 3 Module-dedicated slots
Up to 20 possible configurations in 4 power input versions
Up to 24 PoE ports, with maximum 720W of PoE power budget
4 x 1 Gigabit or 4 x 10 Gigabit SFP Uplink slots
RIPv1/v2, OSPFv2, IPv4 Static Routing, and Multicast IP routing
ITU-T G.8032 ERPS Ring, RSTP, MRP (client) and VRRP redundancy
Dedicated MACsec modules available for additional ultra-low-latency, high-throughput strong security
Rugged industrial design for -40° ~ +75°C harsh environment operation
PROFINET v2.33 CC-B conformance
EN50155 and EN50121-4 certified for Railway and Trackside applications
