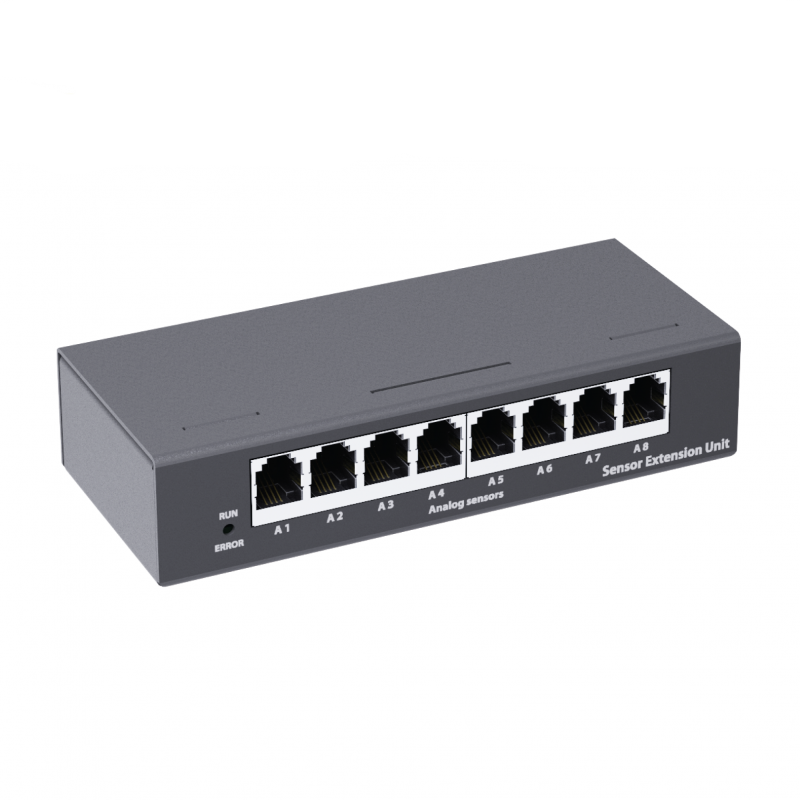

Sensor Extension Unit

Compact unit to increase analog sensor capacity for monitoring systems

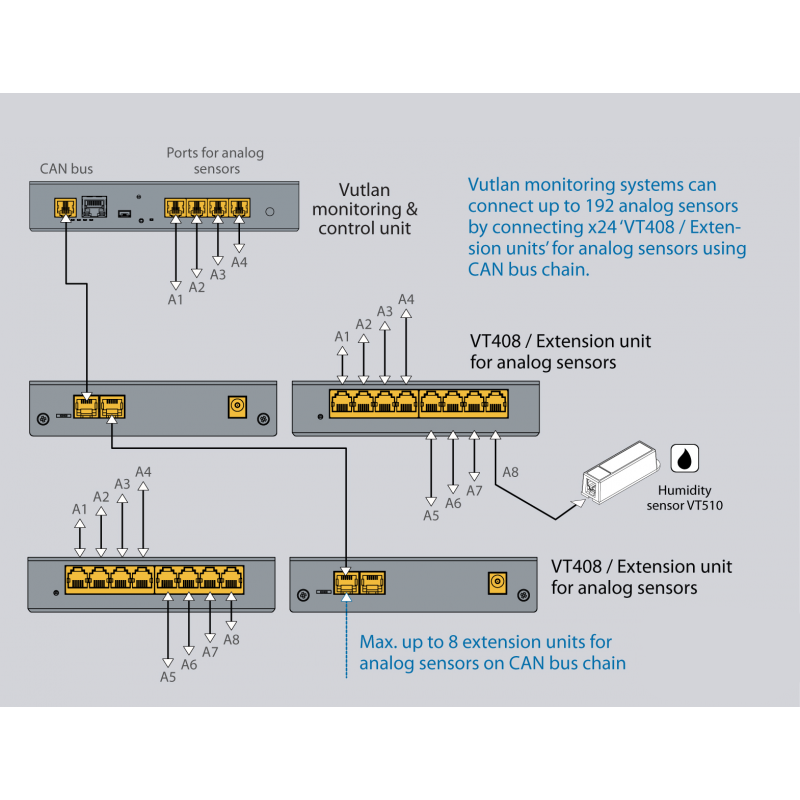

Add up to 8 sensors per unit

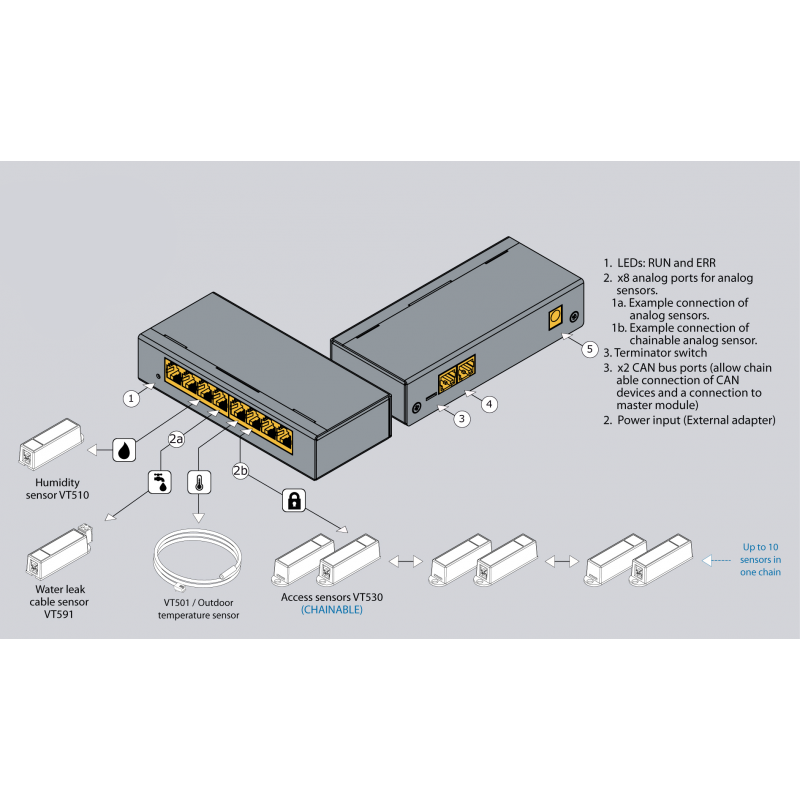

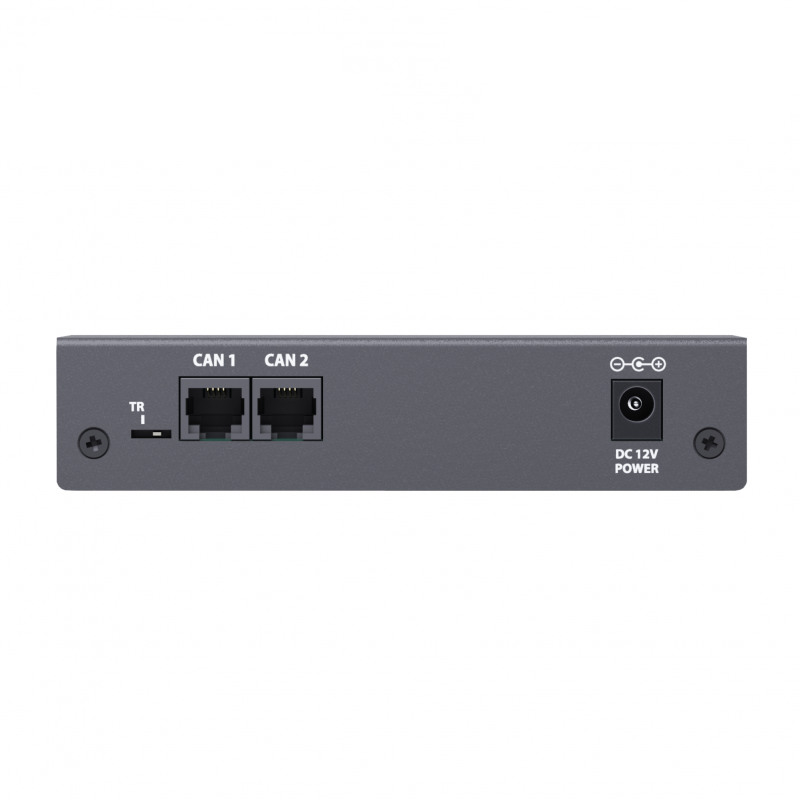

Ports x8 RJ11 6P4C, x2 CAN bus

Power 12V DC, 0,5A

Operating temperature Min. -10° C - Max.+80° C

Dimensions 129 x 28,6 x 56 mm

VTL100036
1,780.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Expands the number of analog sensors for monitoring units. Supports up to 8 additional sensors per unit, with automatic system integration.
Dimensioner
129 x 28,6 x 56
Driftstemperatur
-10° C - Max.+80° C
Input
8 analog sensor ports & 2 CAN ports RJ-12
