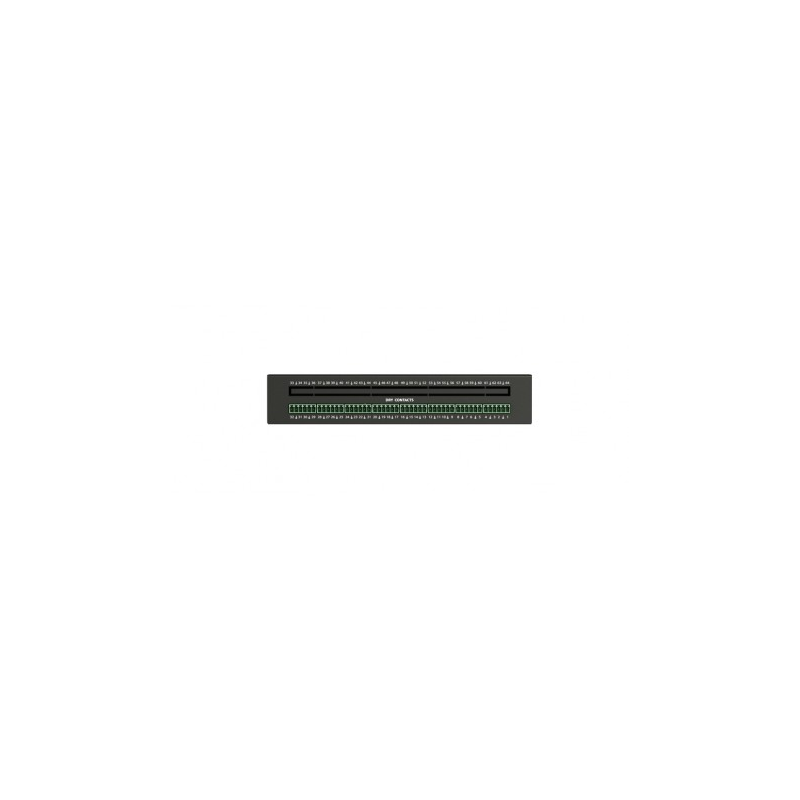

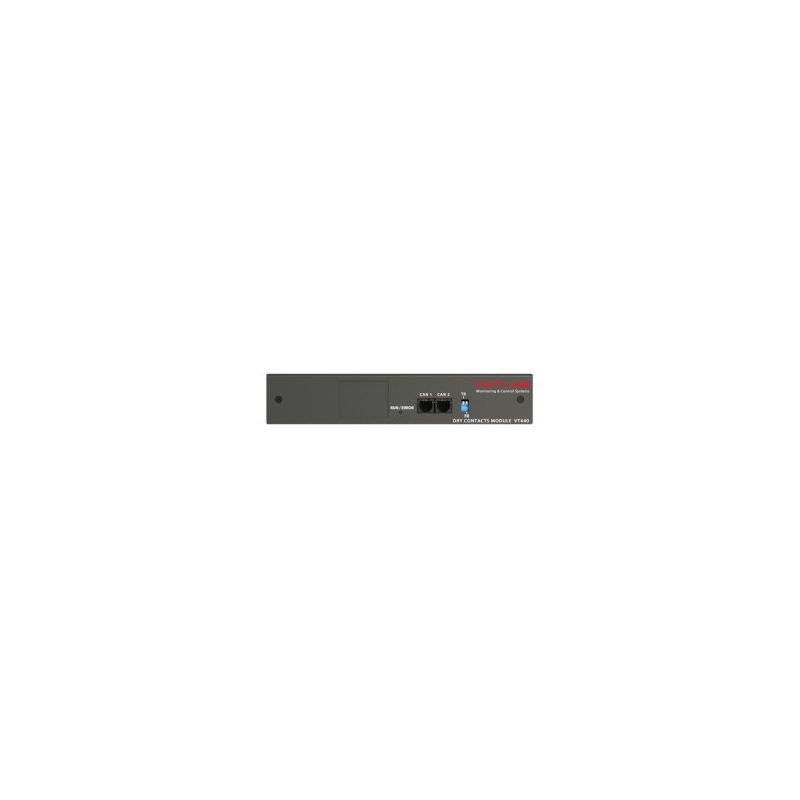

Dry Contacts Digital CAN Unit

Compact digital unit for expanding dry contact capacity

Adds x32 dry contact inputs

Input Terminals 32 dry contacts

Daisy Chain Support

Operating Humidity 0 to 95%

Storage Conditions -40° С to +100° C, 0 to 95% humidity

Operating Temperature -10° C to +80° C

Dimensions 215 x 40 x 40 mm

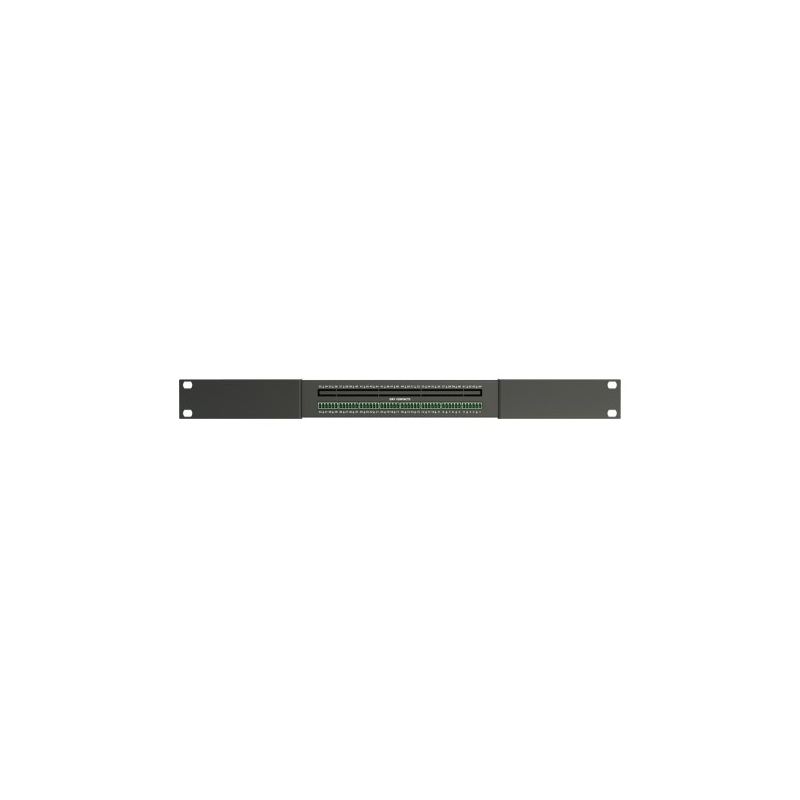

Mounting Options 19" rack, desktop, wall mount

Power Consumption 1 Watt

Package Includes Dry contacts unit, cable, rubber foot, terminal, screws, rack brackets

VTL100042
1,780.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

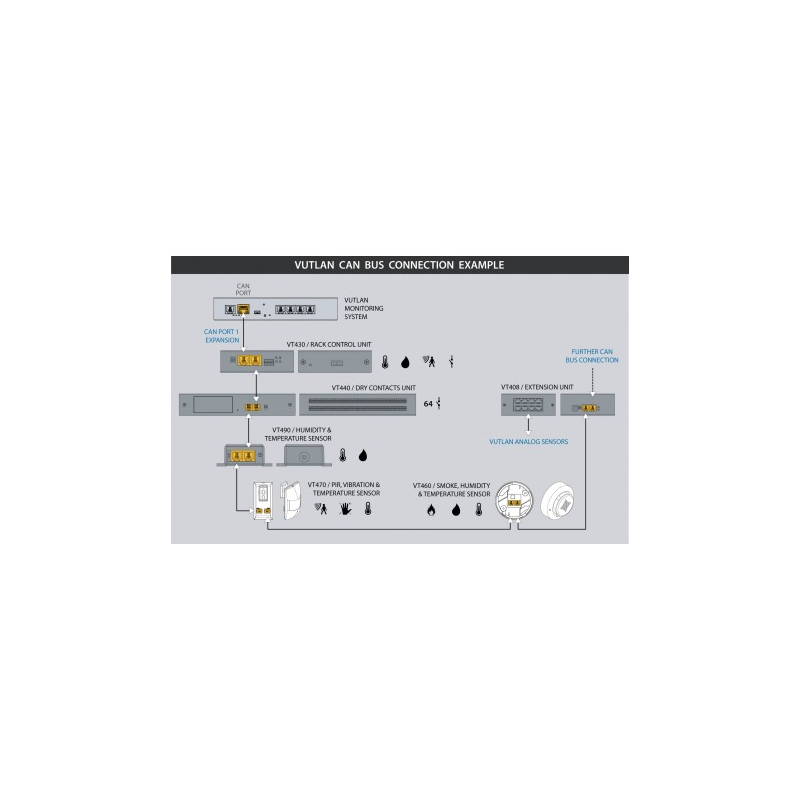

Allows increasing the number of dry contacts connected to any monitoring unit. Adds 32 dry contacts. Can be connected to any CAN port. Max. distance from the monitoring unit is 225 meters. Maximum 100 dry contacts may be connected to 1 monitoring system.
Dimensioner
(Width, Height, Depth) 215 x 40 x 40 mm
Driftstemperatur
-10° C to +80° C
Input
Dry contacts / Digital inputs: 32 contacts & RJ-12 ports: x2
Type
CAN sensor
power consumption
1 Watt
