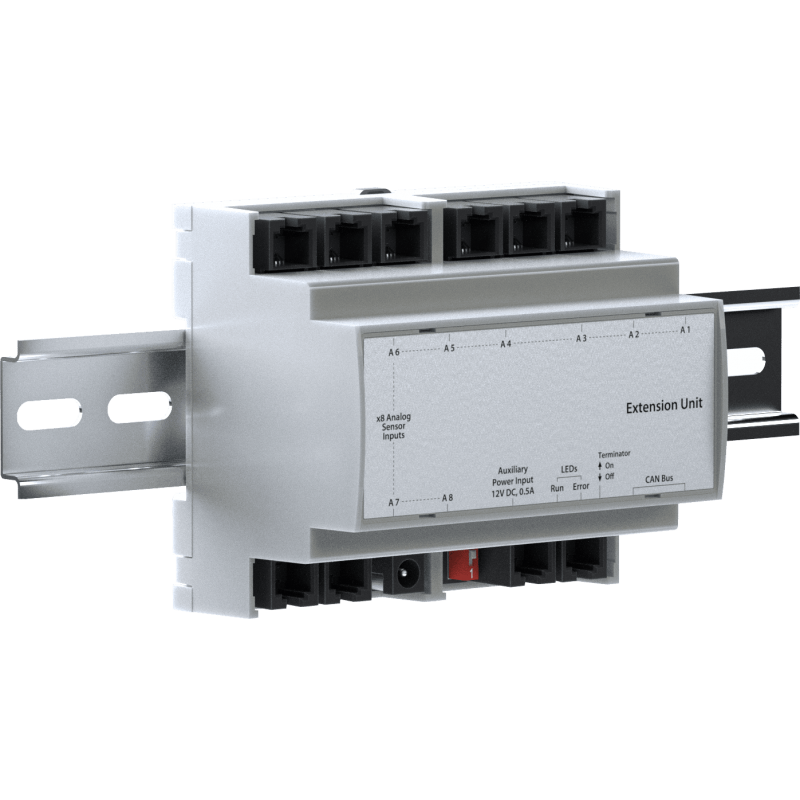

Sensor extension unit for DIN mounting
Expands sensor capacity for enhanced monitoring
Connects up to 8 analog sensors
Ports x8 RJ11 6P4C, x2 CAN bus
Power 12V DC, 0.5A
Operating temperature -10° C to +80° C
Dimensions 107 x 90 x 65mm
Weight 130g
239.23 €
Excl. VAT
Quantity
On the way in
Product number VTL100037
Increases the number of sensors connected to any monitoring unit. Adds x8 analog sensors. Connects on CAN port and allows further CAN daisy chain connection. Sensors connected to the extension unit appear in the system automatically. Max. distance from the monitoring unit is 225 meters. Max. x8 CAN devices can be connected to a CAN bus chain.
Andre produkter i samme kategori:
Magnetic Opening Sensor
Detects door/window opening via magnetic contact separation
Purpose Detects opening of doors/windows in IT racks, cabinets, etc.
Compatibility Works with Vutlan monitoring systems and other alarms.
Operating Humidity 5 - 95%
Operating Temperature Range -10 - 50 °C
Connection x2 cables to 3.5mm power terminal connector.
22.85 €
Item Number: VTL100004
Infrared USB Dome Surveillance Camera with 720P Resolution and 5m Cable
720P resolution
Dome Camera
Compatible with USB 2.0 and 1.1 interfaces
Equipped with infrared (IR) capabilities for low-light environments
1.0 megapixel sensor for clear image capture
Cable length of 5 meters
159.94 €
Item Number: VTL100016
Sound and Light Alarm for Monitoring Systems
12V DC sound and light alarm with 108 dB sound pressure and 3.8 kHz tone frequency
Input: Connects to 12V DC, 0.25A electronic relay
Cable Length: 1.5 m
Installation: Wall or ceiling mount
Functionality: Can be controlled manually or through logic in the device interface
Max Current Consumption: 250 mA
Operating Temperature: -50° C to +105° C
Operating Humidity: 5% to 95% (Non-Condensing)
38.98 €
Item Number: VTL100018
12V LED Security Alarm Strobe Light
Compact 12V LED strobe light with high visibility for security alarm systems
Cable Length 3m
Input 2-wire cable
Voltage 12V
Rated Current 120mA
Flashing Frequency 90/min
Power Consumption 1 Watt
Operating Temperature -50° C to +105° C
Operating Humidity 5% to 95% (Non-Condensing)
Dimensions Height 73.5mm, Diameter 45.5mm
Weight 110g
32.26 €
Item Number: VTL100019
Dry Contacts Digital CAN Unit
Compact digital unit for expanding dry contact capacity
Adds x32 dry contact inputs
Input Terminals 32 dry contacts
Daisy Chain Support
Operating Humidity 0 to 95%
Storage Conditions -40° С to +100° C, 0 to 95% humidity
Operating Temperature -10° C to +80° C
Dimensions 215 x 40 x 40 mm
Mounting Options 19" rack, desktop, wall mount
Power Consumption 1 Watt
Package Includes Dry contacts unit, cable, rubber foot, terminal, screws, rack brackets
239.23 €
Item Number: VTL100042
