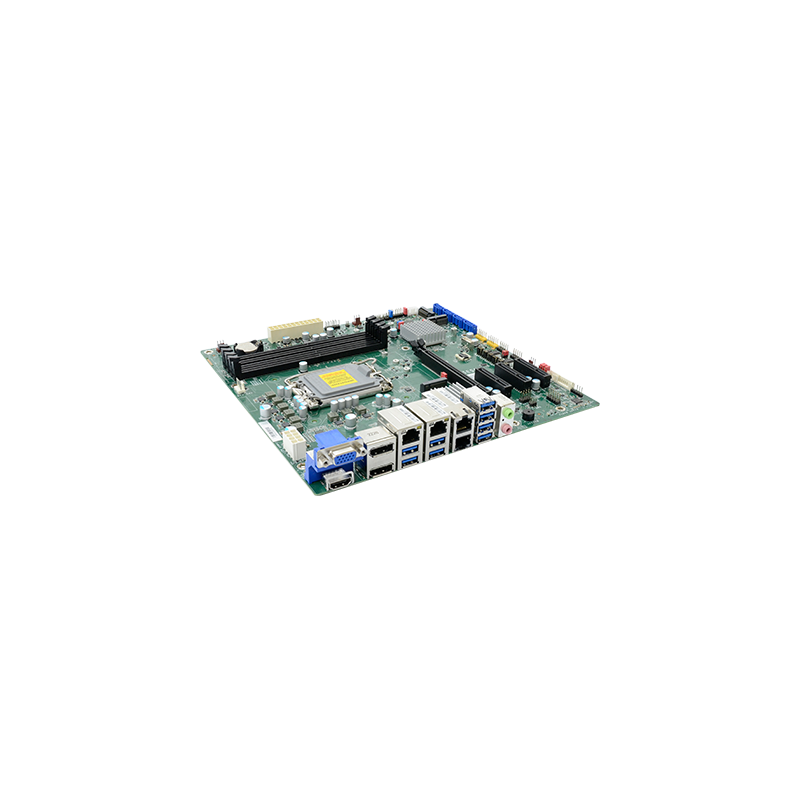

Industrial microATX Motherboard with Intel® Core™ CPU (14th/13th/12th Gen), DDR4, Dual 10GbE LAN

Supports Intel® Core™ CPUs (14th/13th/12th Gen), LGA 1700 socket

4 x DDR4 UDIMM, up to 128GB ECC/Non-ECC memory

Quad Display support: VGA, 2x DP++, HDMI 2.0a (4K resolution supported)

LAN Connectivity: 2x 10GbE ports + 2x 2.5GbE ports

Expansion slots: 1x PCIe x16 (Gen5), 2x PCIe x4 (Gen4), 1x PCIe x4 (Gen3)

M.2 slots: 2x M.2 2242/2260/2280 M-Key (NVMe/SATA), 1x M.2 2230 E-Key (Wi-Fi/BT)

Storage: 4x SATA III ports (RAID 0/1/5/10)

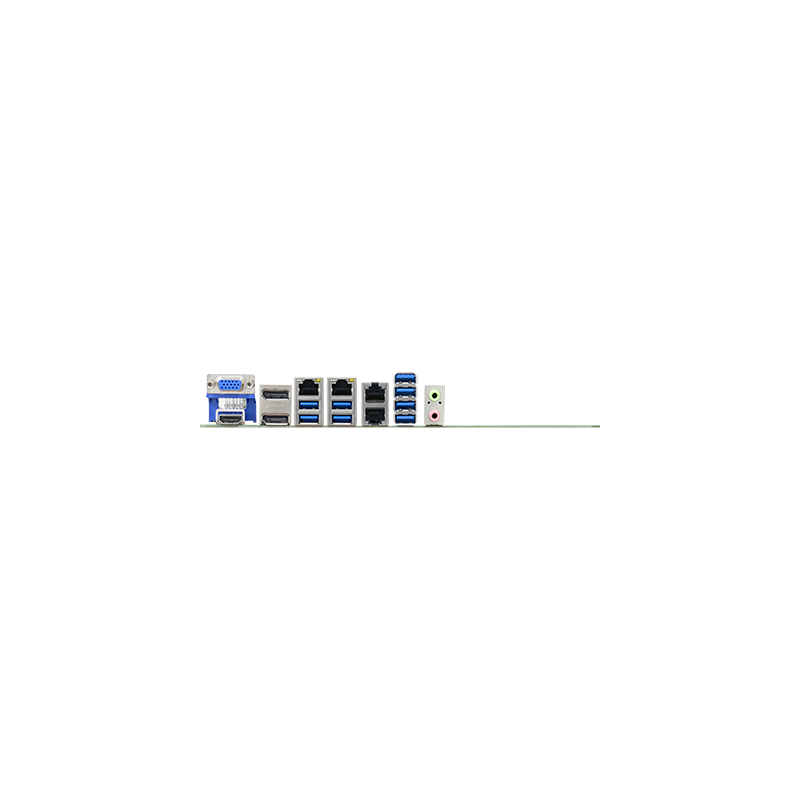

Rich I/O: 2x COM (RS-232/422/485), 6x USB 3.2 Gen2, 4x USB 3.2 Gen1, 3x USB 2.0

Audio: Realtek ALC888 codec, Line-out, Mic-in, optional Line-in

Operating Temperature: -5°C to 65°C

Form Factor: microATX (244 x 244 mm)

ATX Power connectors: 24-pin + 8-pin (12V)

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number BK1700-MITX-R680E
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel® Core™ 14th/13th/12th Gen CPUs (LGA 1700)
Storage 4x SATA III ports, RAID 0/1/5/10 supported
Digital I/O 8-bit DIO
Video Intel® UHD Graphics, Quad Display (VGA + 2x DP++ + HDMI)
USB 6x USB 3.2 Gen2 4x USB 3.2 Gen1 3x USB 2.0
Serial 2x COM (RS-232/422/485)
LAN 2x 10GbE LAN ports (Intel X550-AT2), 2x 2.5GbE LAN ports (Intel I226-LM/V)
Operating Temp. -5°C to 65°C
Lyd Realtek ALC888 Codec, Line-out, Mic-in, optional Line-in
M.2 2x M-Key (NVMe PCIe Gen4/SATA) 1x E-Key (Wi-Fi/Bluetooth/CNVi)
PCI Express 1x PCIe x16 (Gen5) 2x PCIe x4 (Gen4) 1x PCIe x4 (Gen3)
RAM 4x DDR4 UDIMM, up to 128GB (ECC/Non-ECC), 3200 MHz
Dimensioner microATX (244 x 244 mm)
Certification CE, FCC Class B, RoHS, UKCA
