RJ45 to AUI 10Base-T networks, RJ45 / AUI, max. 500m

AUI converter for UTP cable, external supply
1 x DB15 AUI female 10 Base-5 (AUI)
1 x RJ45 female 10 Base-T
Max cable length: 500m max per (Thick Ethernet), 100m max per UTP cable
LED: POWER, COL, LINK, TP / RCV
IEEE 802.3 10Base-T / AUI Ethernet
IEEE 802.2 10Base-T/10Base-2
FCC Class A Subpart B or Part15 Requirement

ETH-RJ45-AUI
1,590.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

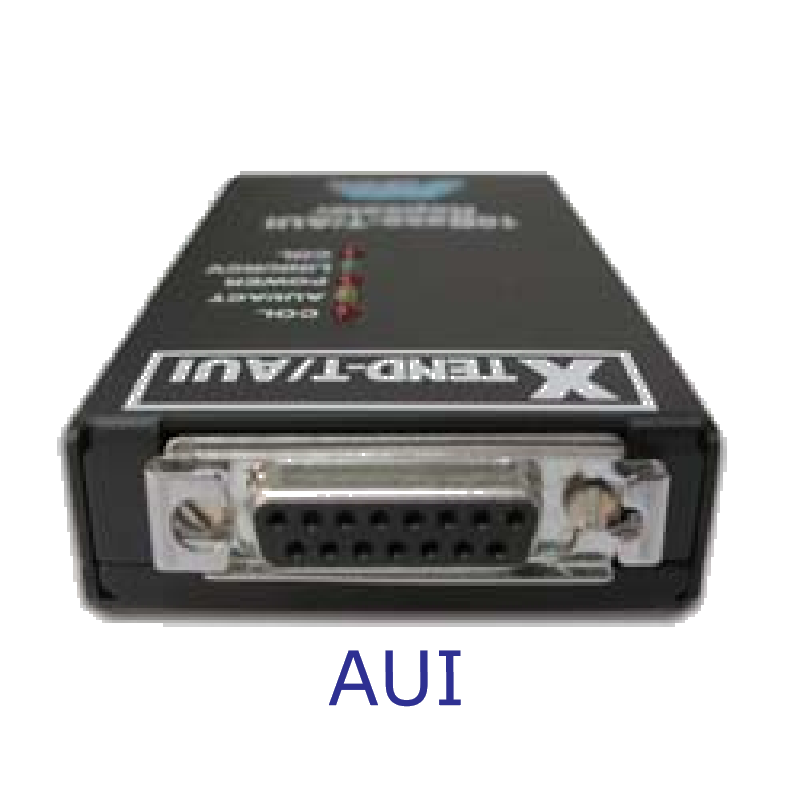

AUI to RJ45 converter.
with external power supply.

Dimensioner
4.2" x 2.2"x 0.8"
Driftstemperatur
0 til 55 grader
I/O
1x DB15 (10 Base-5), 1 x RJ45 (10 Base-T)
Kabel
500 m Max per thick ethernet, 100 m max per UTP kabel
LED
POWER, COL, LINK, TP/RCV
Netværk
IEEE 802.3 10Base-T/AUI Ethernet
