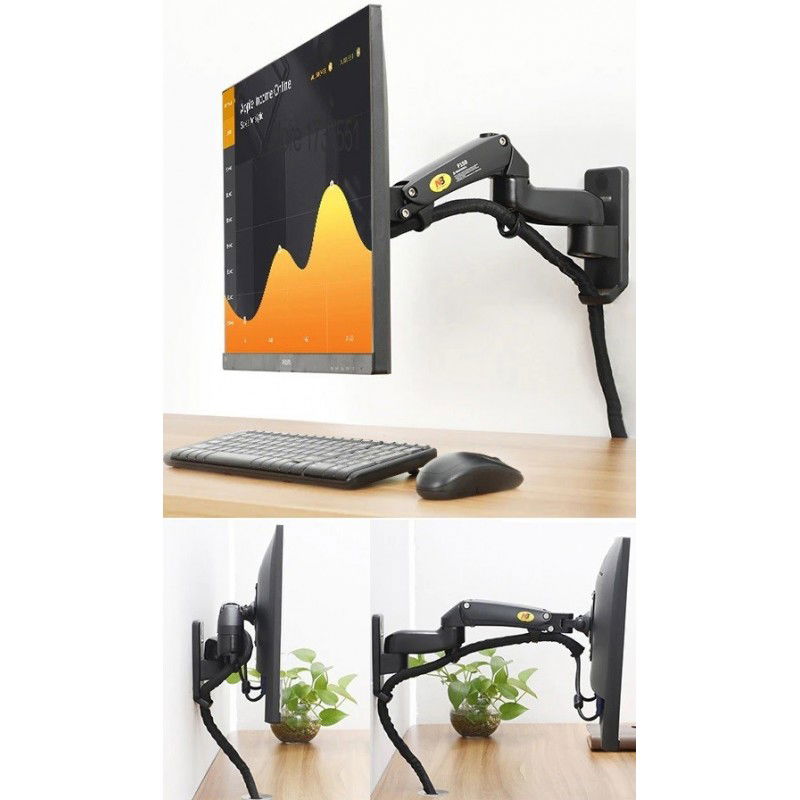

Mounting Type: Wall Mount
Compatible Devices: Monitors, Televisions
Movement Type: Full Motion. Rotate, Swivel, Tilt, Articulating.
Item Weight: 3.6 pounds (~1,6kg)
Official TV/Monitor compatibility size: 17-27 Inches (May fit other sizes, if holes align and weight limit is not exceeded!)
Fitting standard: VESA 75x75mm/100x100mm hole spacing
Max load: 2-7kg (4.4lbs -15.4lbs)
Wall to Screen stretch distance: min 85mm, max 385mm
Swivel: 180° each direction left/right
Tilt: 50° down / 35° up
Rotation: 360°
Lifting distance: 0-155mm
Material: Stainless Steel
Color: Black
* Full motion flexibility in all direction and effortless adjustment without using tools.
* Durable gas-strut cylinder and conical joints constructed for smooth and stable operation.
* Built with ecological interface to enhance your gaming and viewing experience.
* Single-extension, compact and retractable design to save space.
* Integrated cable management concealment inside provides clean neat and clutter-free appearance.
* Strong diecast aluminum alloy construction with black finish gives you the best aesthetic looks.
INSTALLATION GUIDE:
Please DON'T adjust the tension screw without the screen attached first!
1) Install the product on the wall.
2) Mount your screen to the product.
3) Push down the arm, as it will make it easier to adjust the tension screw.
Wall-mounted display fittings
Max. 11 kg
Screen 13 "~ 26"
VESA standard: 75 or 100
Robust and stable bracket
RAM 75mm X 75mm VESA Plate with 1.5 "Ball
RAM Forklift Overhead Guard Plate
Wall bracket for hanging display on vehicles
Suitable for item: & nbsp; IPC-TAB-R7 and IPC-TAB- rA7
Adjustable LCD ceiling bracket
Can be adjusted in height
Rotate: 360°
Tilt
Incl. screws and brackets (included 1x VESA bracket 75X75mm)
Max 11 kg
Black
Stainless Steel 304
Industrial Design
VESA 75/100
2-axis movement
