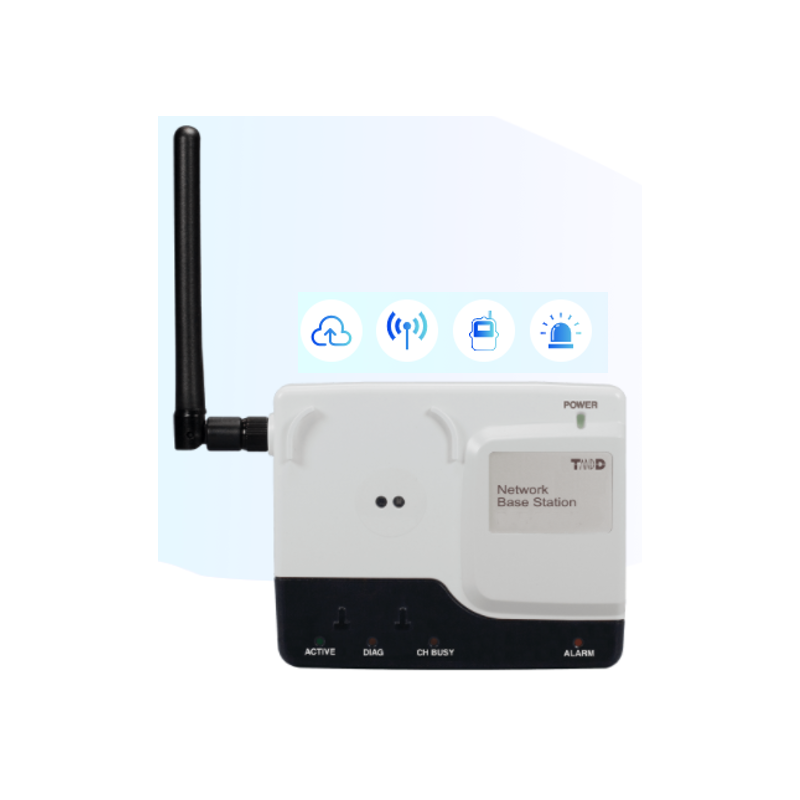

Base station which transfers LOG-DATA from all Wireless Data loggers in the system. Via Wifi PC or T&D WebStorage Cloud

Radio base station retrieves Log data from loggers
base station is a link between loggers and PC
base station data from 100 wireless loggers
Frequency Band Base Station and Data Logger is 870MHz
Up to 150meter - depending on conditions
Greater distance with repeaters (radio-relay stations)
interface for presentation PC is Wifi
USB interface to PC for setup:
base station, connection dock for Data Like (Optical)
Protocol: SMTP (POP before SMTP-AUTH (login) FTP, SNTP, DHCP, DNS)
temperature: -10 - + 60 ° C
Dimensions: 102 x 83 x 28 mm
Power supply included
Only for T&D loggers

LOG-WL500W
4,125.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

LOG WL500W series allows you to mix and match a variety of wireless radio communication data loggers with different data collector types to meet your needs. LOG WL500W is a WLAN (WiFi) connected to the data collector. It collects data from nearby dataloggers via wireless 870MHz radio communications and automatically sends data via Wifi among other TD's free Cloud Service service or your FTP Server. In fact, monitoring, data transfer and warning message all happen automatically.

It is perfect in situations where a person is not always present, such as storage facilities, server rooms and automated factories. As long as there is a wired LAN, the LOG-WL500N do the work for you. LOG WL500N can be combined with any of our data loggers LOG-WL white series. And up to 100 loggers can be registered for simultaneous use. Our software can communicate with the loggers and make network settings. After creating a Wifi connection, everything will happen automatically according to your settings. Data is automatically sent to the selected FTP server or e-mail address is also sent warning messages.

It can also be used with our free TD WebStorage Service, making it easy to monitor data, see graphs and check warnings from any PC or mobile device browser.
Data collector for wireless data loggers.

Andet
Softwaren kan automatisk hente log data fra modulerne i interval fra 30 min til maks. 10 dage på begge modeller
Forsyning
AC adapter
Netværk
Trådløst, EEE 802.11b/g WEP
Type
Dataopsamler med WiFi interface
