Radio base station retrieves Log data from loggers
base station is a link between loggers and PC
base station data from 100 wireless loggers
Frequency Band Base Station and Data Logger is 870MHz
Up to 150meter - depending on conditions
Greater distance with repeaters (radio-relay stations)
Transfers the log data via GSM 3G GPRS mobile network
USB interface to PC for setup:
base station, connection dock for data Like (Optical )
Protocol: SMTP (POP before SMTP AUTH (login) FTP, SMS
SMTPS (SMTP over SSL)
Temperature: -10 - + 55 ° C
Dimensions: 96 x 66 x 39 mm | Power supplied
only for T&D loggers
LOG WL500GSM series allows you to mix and match a variety of wireless radio communications loggers with different data collectors to meet your needs.

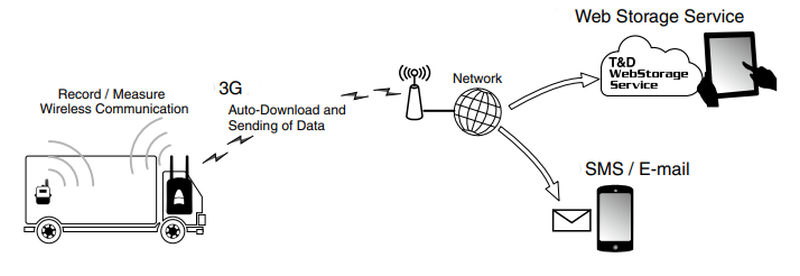

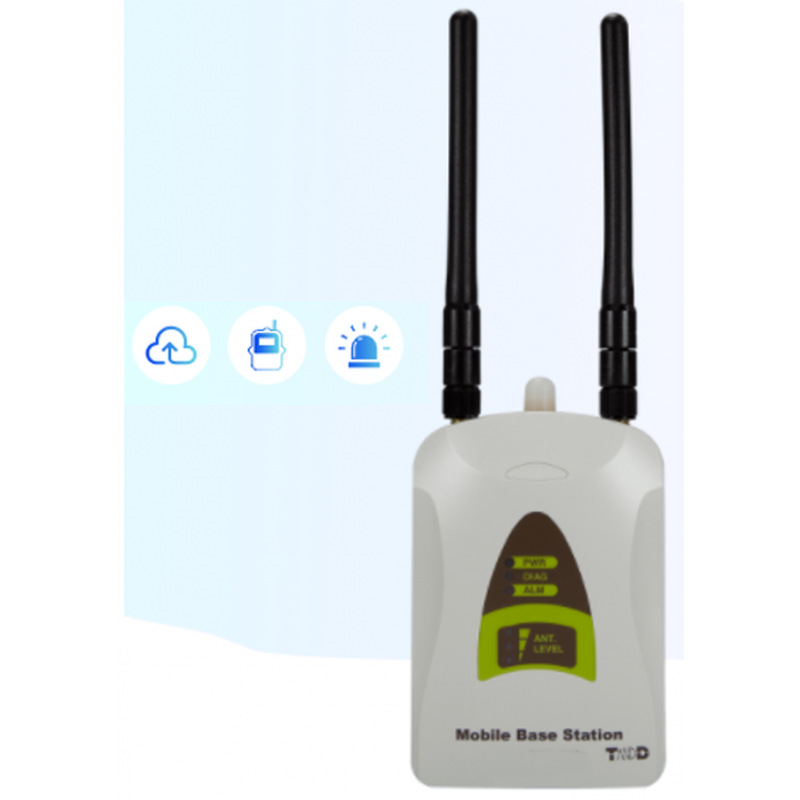

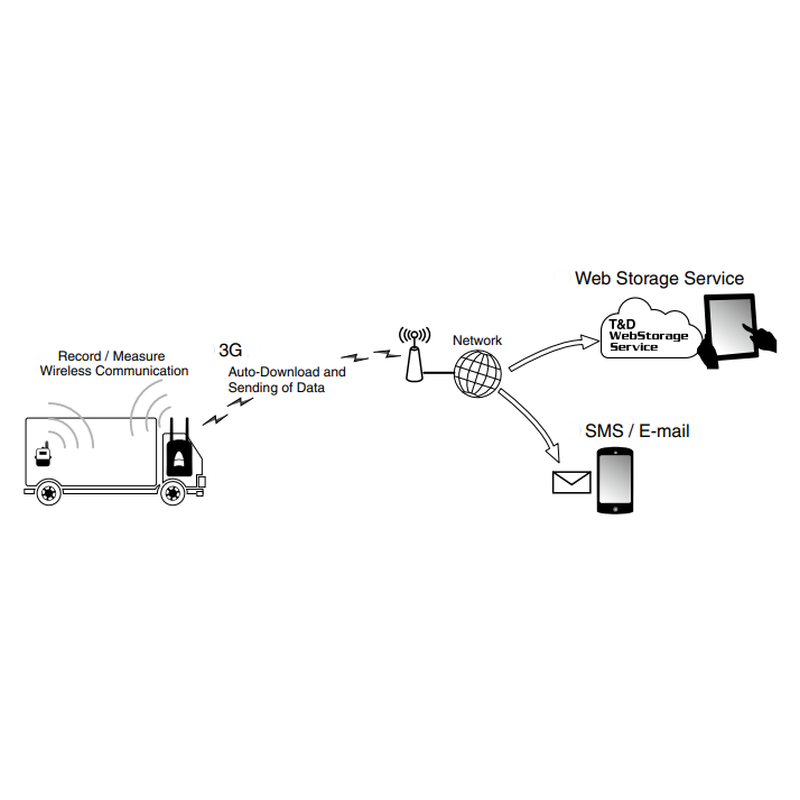

LOG WL500GSM is a data collector equipped with 3G mobile networking. It collects data from nearby dataloggers via wireless radio communications and send them automatically via 3G mobile phone network to the set FTP server or email address.
It is perfect for situations where you have no PC or LAN available, for example. During transport, in greenhouses or on construction sites. As long as you can provide power, you can collect and transfer data without worry and stress.
LOG WL500GSM can be combined with any of our data loggers LOG-WL500 series. And up to 20 loggers can be registered for simultaneous use. Use our software to make settings for mobile communications.
Since it uses the mobile network to transmit data, is all you need to do to ensure a power source and be in the mobile field to send data to an FTP server or to a registered email address.
After a warning message can be sent automatically via email or SMS and / or by connecting a buzzer or lamp to the contact end, you can create an alarm On-site. It can also be used with our free TD WebStorage Service, making it easy to monitor data, see graphs and check warnings from any PC or mobile device's browser.
Wall bracket for log-wl500gsm
Power supply for LOG-WL500GSM
100 - 230vac for 6VDC
Cable length: 1.8m
Connector: Power Jack 3.5 / 1.3mm
RS485 / RS422 / RS232 Master Gateway to Meter-Bus Slaves (sensors, actuators, etc.)
Supports up to 100 Meter-Bus meters (slaves)
MODBUS RTU function codes: 0x03 and 0x04 readdata
Selection of serial port, only one can be selected to be active
Baud rate x 2 (M-bus and COM port can be selected at different speeds)
Baud rate M-bUS: 300-2400 bps
Baud rate COM port: 300-115200 bps
Transparent data - no protocol conversion
M-BUS connection, 2-wire, max. 350meter.
Greater distance up to 5km requires a number M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm
Removable terminal blocks
Operating temperature: -25 - + 60°C
DIN mount
Robust plastic case
Pt100 sensor with 2 m cable
Steel tip of 100 mm ø3.2
Cable is rated for -80 - +200°C
Compact environmental meter with e-ink display
CO2 Concentration 0 - 9999 ppm
Temperature 0 - + 50 ° C
Relative humidity 0 - 85%
atmospheric pressure 300 - 1100 hpa < Br> Bluetooth (Via App) or Radio (Via Air-Base)
2 AA batteries up to 3.9 years (10 minute intervals)
Dimensions 70 x 70 x 24 mm
small, portable and easy Using
control air quality to reduce Covid-19 infections
Residual sale
2 channel temperature logger with external sensor
Temperature sensor: -40 - + 140 ° C
Freedding temperature: -40 - + 80 ° C
1 x RJ45 Ethernet
1 x Power Jack 3.5 / 1.5 mm 6VDC
