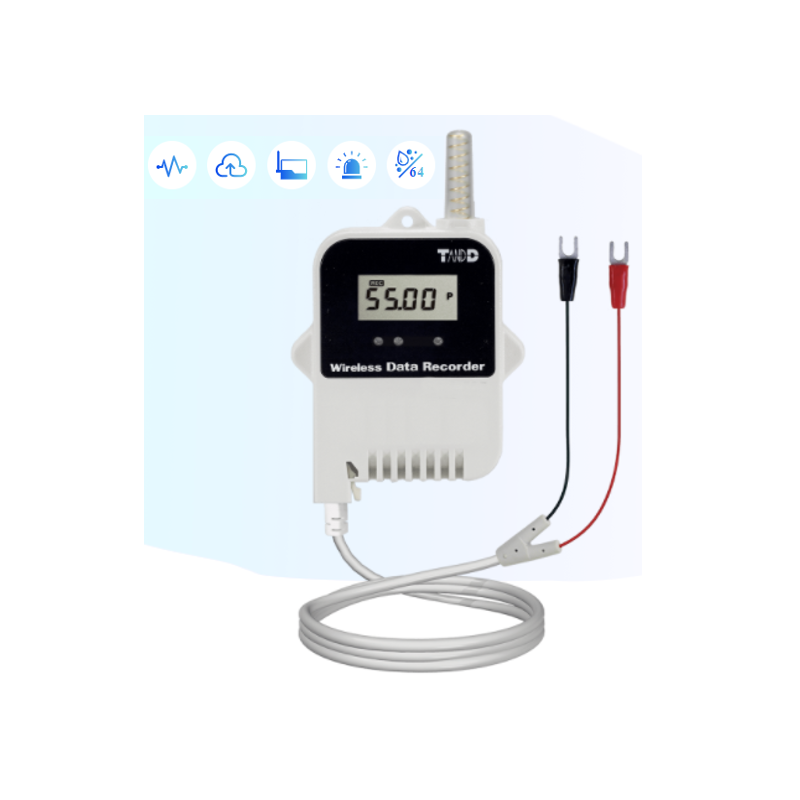

1 ch pulse counter data logger. Range: 0 - 27V. Wireless to collector up to 150m, Bluetooth. Cable incl. IP64. Battery operation

Base unit with display and optical communication
Jig for programming T&D data loggers
Jig for collecting stored log data from T&D data loggers
USB connection to PC
Free software for PC
Battery operation - Operating time approx. 100 days
OPTIONAL: AC adapter is acquired 6VDC, 3.5 / 1.5 mm plug
Dim: 125 x 58 x 26 mm
Weight: 90 g

Measurement data via mobile network
for Nano SIM card
protocols: HTTP, HTTPS, FTP, SNTP, SMS

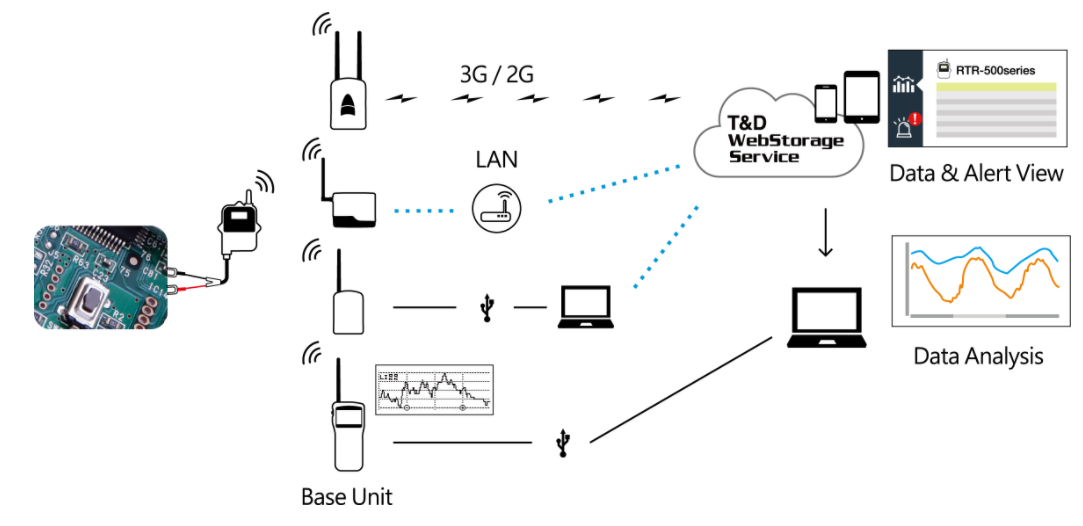

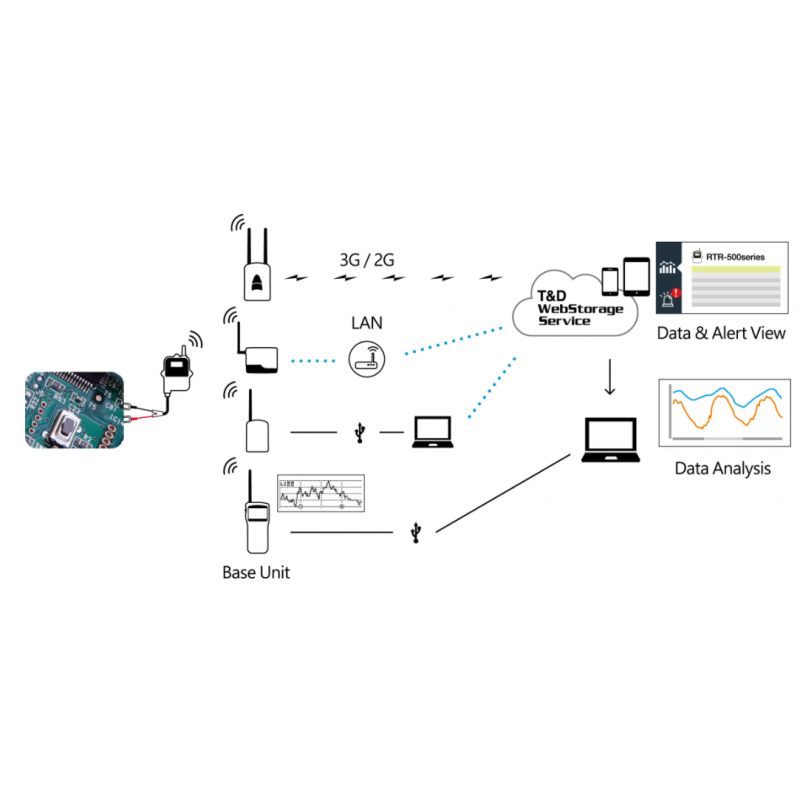

collector measurement data from wireless T&D loggers
can serve up to 20 T&D loggers
Free T&D WebStorage Service - Cloud Based
Notifications with SMS by measurement limit
Setup with Bluetooth or USB
Battery operation Supplement. Powered from 9 - 38VDC
Gradual data collection from units of measurement Up to 150meter
SS relay output and digital input
target: 96 x 66 x 39 mm
Weight: 135g

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC

Verify that e.g. goods transport has had the desired temperature
Suitable for quality documentation
Super robust design - for harsh environments
Place the data logger next to the item and let it document the transport
EN12830 approved for food
Memory for 16,000 measurements with date and time
Measuring interval: from 1 second to 1 hour
Log data is transmitted optically to the Data Collector
Find Data Collector under Accessories
No physical connection - thus IP67
Free presentation software, tools and Cloud
LCD display and LED alarm when the limit is exceeded
Measuring range: -40 - +80°C +/-0.5°C accuracy
Battery operating time: 2 - 4 years
Dimensions and weight: 62 x 47 x 19 mm, 45 grams
Battery: 1 x LS14250

Wireless Temperature and moisture præsicions logger with memory
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
2 x 8,000 measurements in memory with the date and timestamp
Accuracy of measurement: max. + / - 0.3 ° C range depending
Removable external sensor. Close O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1

Data collector for wireless data loggers
Repeater - Radio relay station provides greater range
Radio distance to Dataloggers is approx. 150 meters
Radio frequency is 870MHz
Battery operation as repeater (Radio relay station) for 6 months.
Automatic repeater function
Wireless Data Collector from Dataloggers.
Data is transferred to PC via USB
Bluetooth
Has docking holder for setting up Datalogger functions
Operating temperature: -10 - +60°C
Dimensions: 96 x 65 x 25 mm
Weight: 70g
Only for T&D Dataloggers
