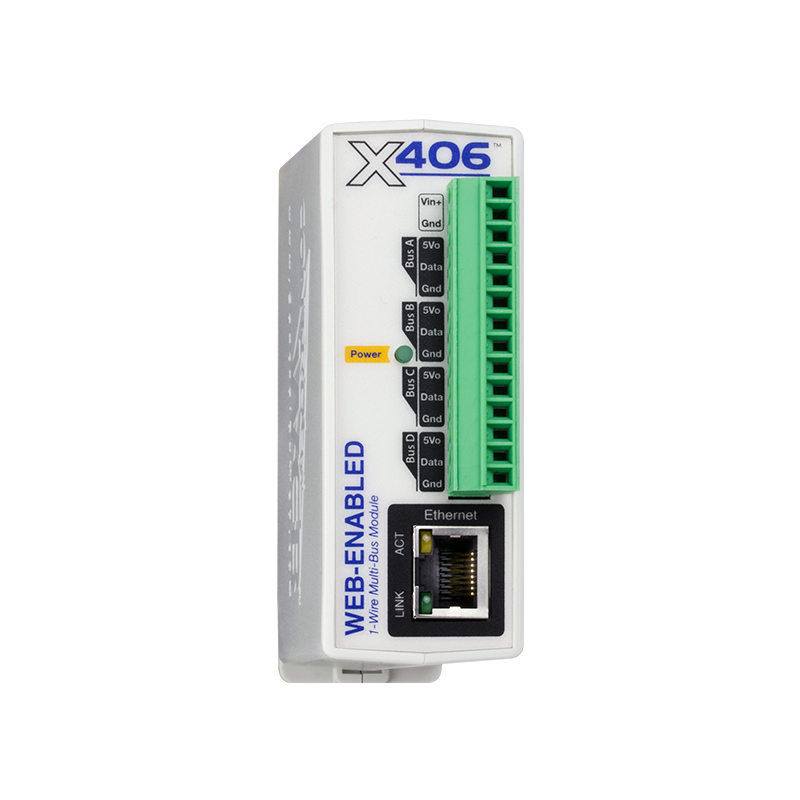

Web enabled temperature and humidity module for 4 x 1-wire sensors. Up to 64 lsensors w/log. RTC, Modbus/TCP/IP, XML. 9 - 28VDC

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sample time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

X-406-I
3,898.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

X-406 is ideal for applications that require many 1-wire temperature, temperature / moisture sensors - many measurement pumps, where each measurement point gets its own name in order to identify where the measurement is made. A good sample is monitoring of server rooms. Here, detailed measurements can provide a picture of heat sources and possibly. missing ventilation. It is possible to place up to 64 sensors and measure and log the measurements for later evaluation while getting real-time alarms if limit values ​​are exceeded.
X-406 has 4 pcs. 1-wire bus (+, - data), making it optimal for monitoring the temperature of multiple servers. Each 1-wire bus can be connected to 16 sensors for monitoring a total of up to 64 different server temperatures.

peer to peer communication: link X-406 to other controlbyweb products for further monitoring and control.
Logging / Email Alarms: Enable logging to register server temperatures in real time over time. X-406 can be configured to send custom e-mail / text alarms if the sensor goes outside the selected limit value.
