8.4" Panel PC blæserløs, Touch, 2xCOM, N3060(up to 2.48GHz)

8.4" SVGA TFT LCD, LED backlight
N3060 (up to 2.48GHz) Fanless
2x Mini PCI Express
2x RJ45 Gbit
2x USB
2x COM
IP-65 front
Slim design
Max. 8GB RAM

9,071.00 kr
Excl. VAT
Quantity
On the way in
LÆG I KURV
Product number IPP8CELERON
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel® Celeron® processor N3060 2 cores (up to 2.48 GHz)
Andet Optional: Wi-Fi + Bluetooth kit Panel mount kit VESA mount kit Stand kit RFID kit
BIOS AMI UEFI BIOS
Chok/Vibration 2G, 5~500Hz, random for mSATA

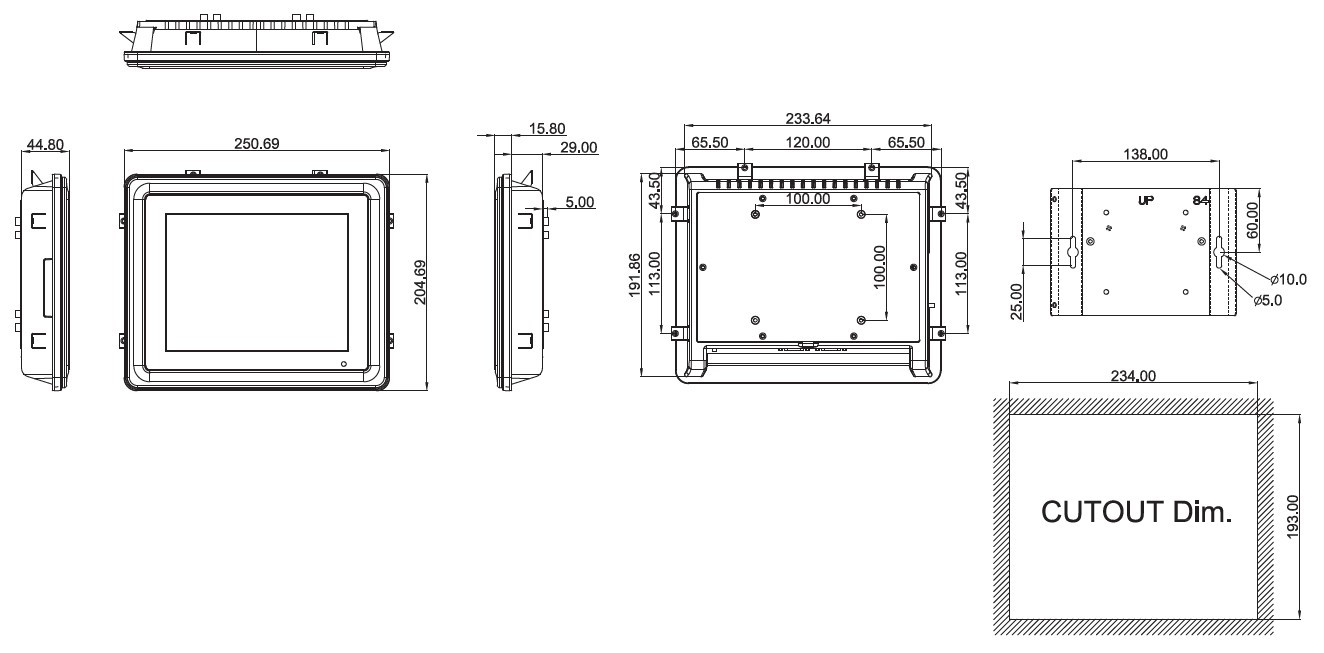

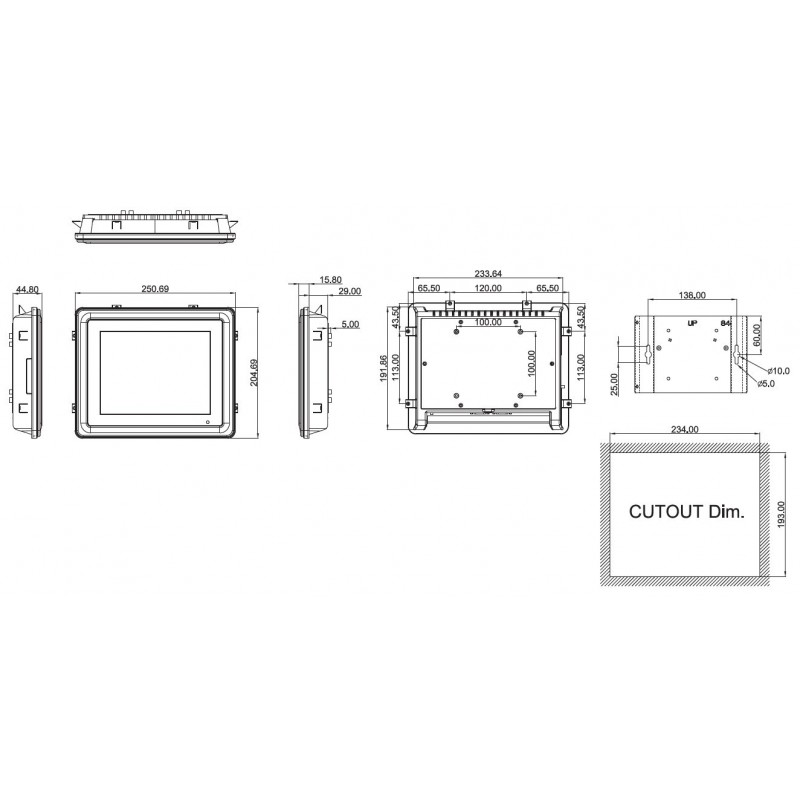

Dimensioner 250.7 mm (9.87") (W) x 45.8 mm (1.80") (D) x 204.7 mm (8.06") (H)
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i211AT)
Forsyning 9~36 VDC with over current protection fuse Power Consumption 25 W
Grafik Onboard Graphics Integrated in Intel® GFX
Hukommelse 204-pin DDR3L-1600 MHz SO-DIMM, up to 8GB
IP-Tæthed Front Bezel IP65, NEMA 4 rugged protection, plastic front bezel
Luftfugtighed 20% ~ 90% @ 40°C; non-condensing
Lyd Audio (Line-out)
OS SUPPORT Windows® 7 Windows® 8.1 (64-bit) Windows® 10 WES 7 WE8S (64-bit)
Porte 1 x RS-232 (COM 2) 1 x RS-232/422/485 (default RS-232, COM 1)
Skærm Brightness (cd/m2 ) 350 nits Resolution 800 x 600 Viewing Angel (H/V) 160°/140°
Temperatur Operating temperature: 0° ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition) 0° ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM)
Touch Resistive Type
Udgange HDMI
USB 2x USB 3.0
Weight (net/gross) 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Watchdog 255 levels, 0~255 sec

Build To Order panel PC.
Kan levers med OS, RAM og SSD/HDD
