7 "Panel PC with touch for Windows 10 32-bit, 9-36Vdc, Intel Atom Z8350, 4xCOM,

7" LED backlight 1280 * 800 resolution, 16:10, 400cd / ㎡, 800: 1 Contrast
Multipoint Capacitive Touch
Intel Atom Z8350 1.44GHz
2GB DDR3 LP
2 x 100M (RJ45), (OPTION: LAN Port2)
4x RS232 (optional RS485 / RS422)
2x USB 2.0
HDMI 1.4 Output
Panel Mount, VESA 75
FCC / CE
OS Support: Windows 10 32bit
Option: (WiFi, Bluetooth, 3G / 4G WIFI)
DC 9 - 36V

Call +45 56 66 20 20 for price
Quantity
On the way in
LÆG I KURV
Product number IPP7P-WIN
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Atom Z8350 1.44GHz
bluetooth option: 4.0 2402MHz~2480MHz

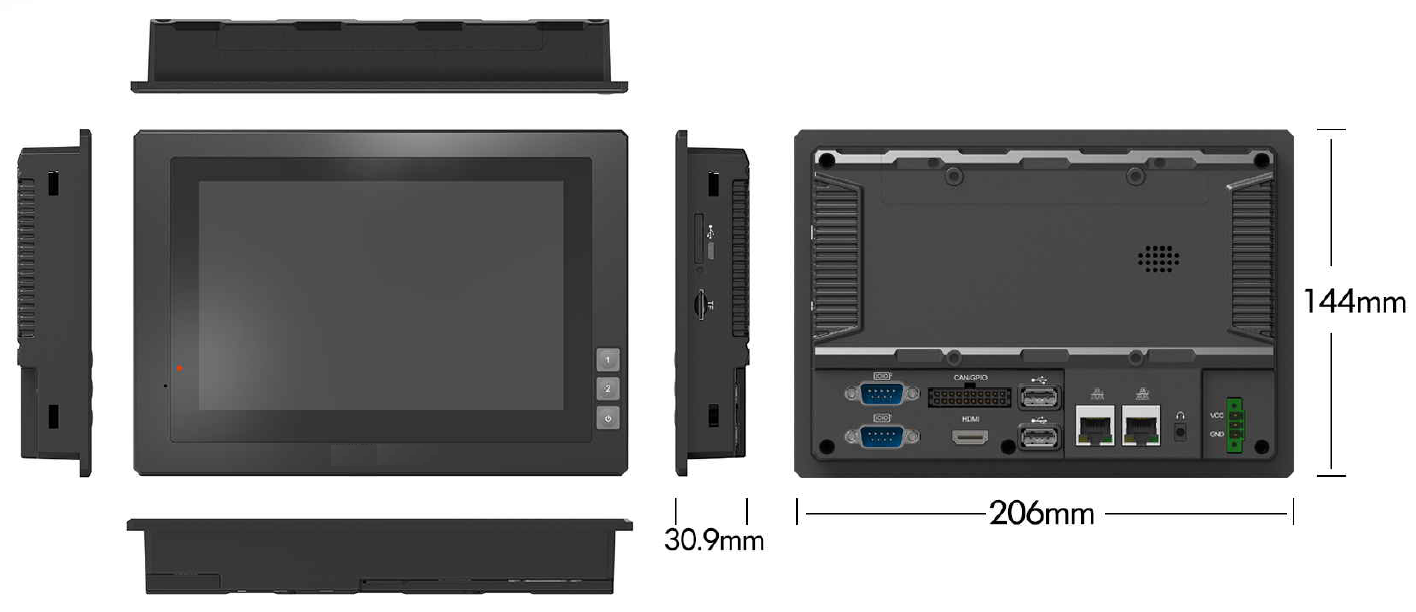

Dimensioner 206 x 144 x 30.9 mm
Driftstemperatur -20 ~ 60ºC
Ethernet Ethernet 100m (RJ45), (OPTION: LAN port POE)
Forsyning DC 9~36V
GPIO GPIO input x 4, GPIO output x 6
Grafik Intel HD Graphic 400
Hukommelse 2GB LP DDR3
LCD 7" 400cd/m; 16:10, 1280x800,
Lyd 1x ear Phone slot, 1 x speaker (back), Speaker 1 W
OS SUPPORT Android 5.1.1 / Linux Debian 8.0
Porte RS232×4 or RS232×3+RS485×1 or RS232×2+RS422×1+RS485×1
SIM kort 4G/ 3G/ 2G 1.8v / 2.95v, mini SIM
Strømforbrug Below 10W
Udgange HDMI 1.4 Ouput
USB USB Host 2.0 × 1 / 3.0 × 1
Weight 790g
WiFi/WLAN Option: WiFi 802.11a/b/g/n 2.4GHz

7” smart and rugged industrial PC , expansions rich function like WIFI, 4G LTE, Bluetooth for wireless communication; HDMI Output, USB Host and LAN ports for various real-time transmission; Besides, it configured with standard professional interface: RS232 / GPIO ports for different industrial applications.​
