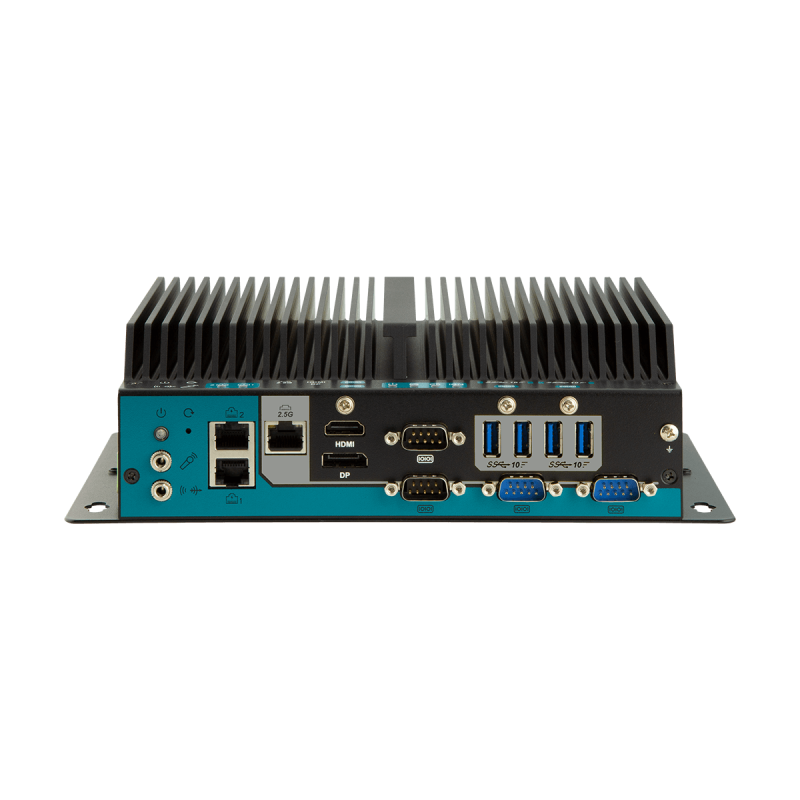

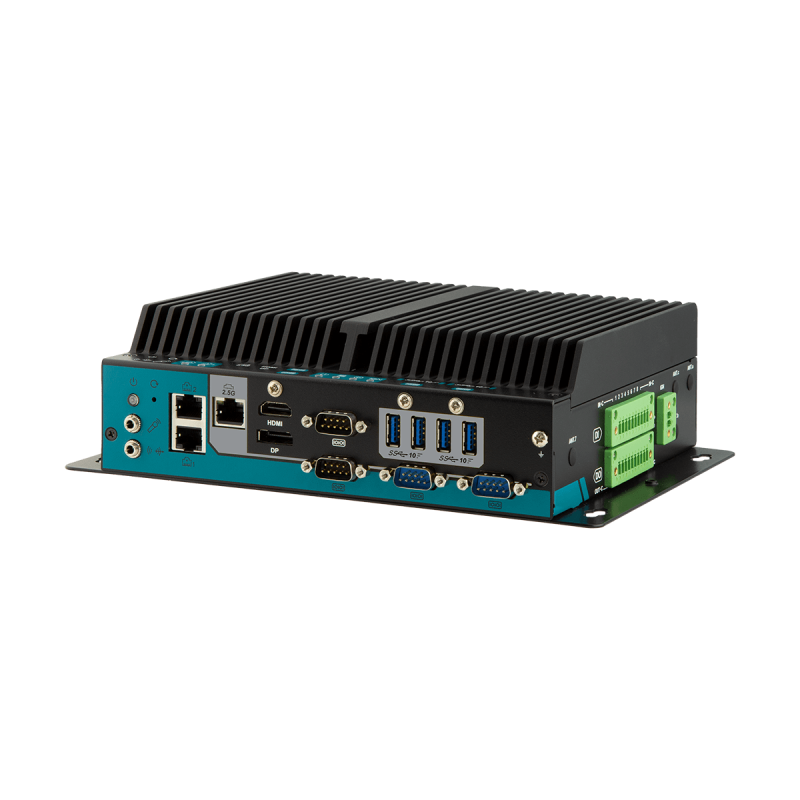

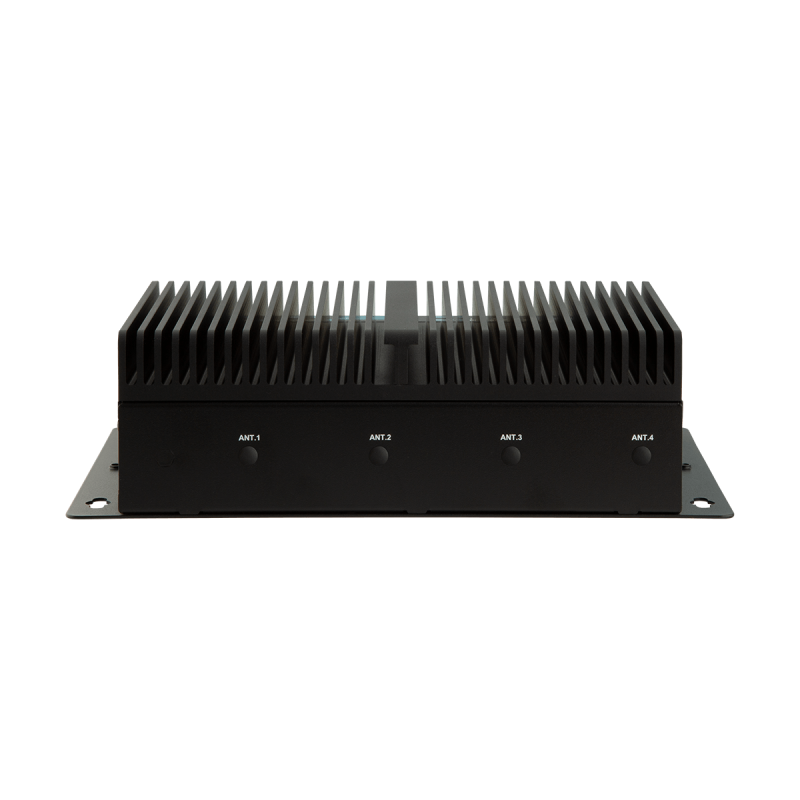

Fanless Embedded PC with 11th Gen. Intel® i5 CPU, 4x RS232, USB, DIN mount, POE, 9~36 VDC

11th generation Intel® i5-1145G7E CPU Onboard  Tiger Lake-U (can be ordered with other CPU: i3, i7)
2 x 260-pin DDR4 SO-DIMM (max. 64 GB)
1 x M.2 NVME
1 x 2.5” HDD/SSD
16 x I/O
4 x COM
3 x LAN(2xPoE)
4 x USB3.1, Remote PWR
TPD: 15W
Video output: DVI-D, HDMI, DP
Mounting: Wall mounting (Option: DIN rail or VESA)
Power input: 9~36 VDC

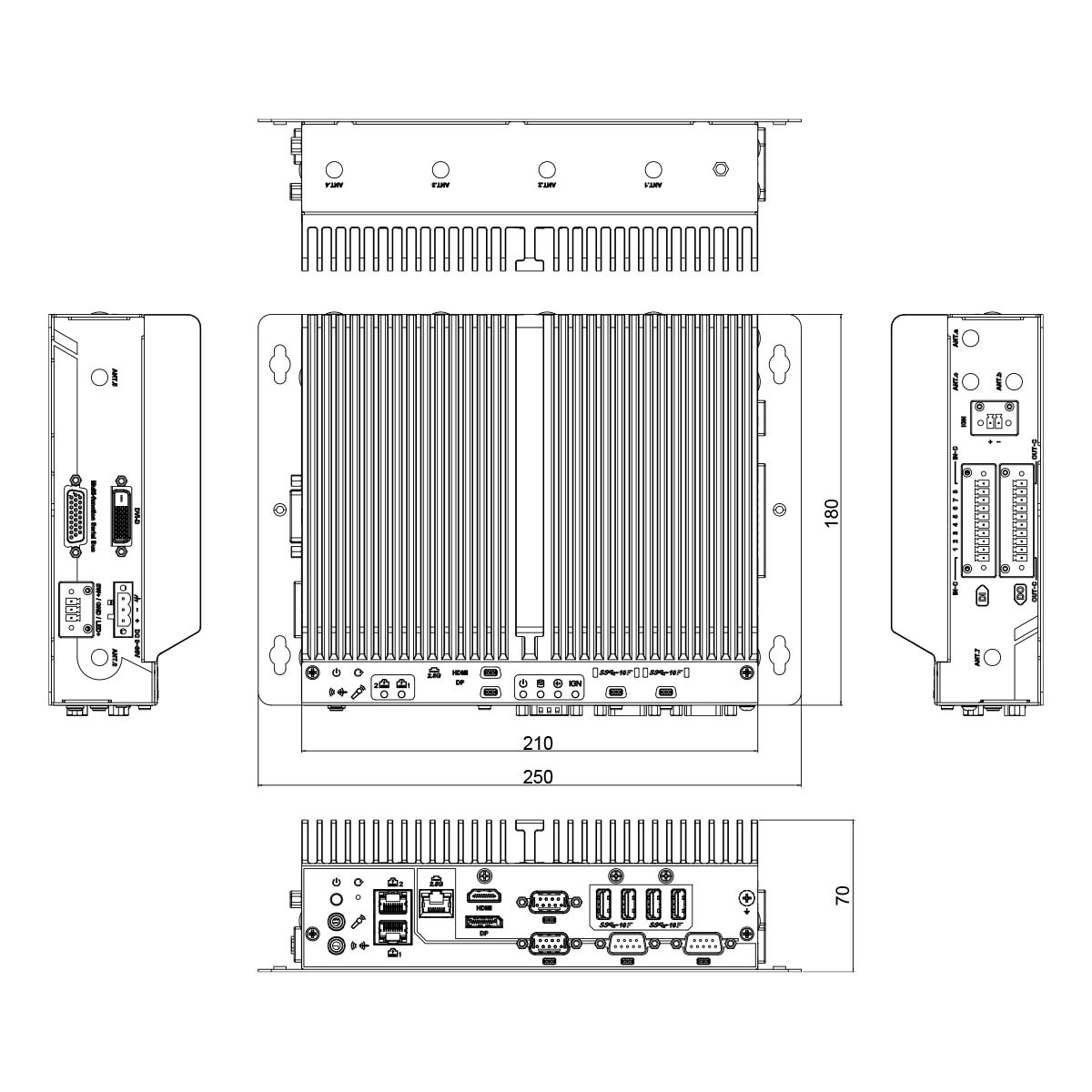

Dimensions: 210x180x70mm (WxDxH)
Operating temperature -10 ~ 60 °C With air flow
Windows® 10 IoT ; Windows® 11 IoT
Ubuntu 22.04 above, Ubuntu 22.04 host OS, Hailo SW via Ubuntu container

Call +45 56 66 20 20 for price
Quantity
Physically in stock
LÆG I KURV
Product number EPC-GEN11-I5
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 11. generation af Intel® i5 CPU
Chipset soc
Certifications CE, FCC Class A
Chok/Vibration 5~500Hz 3 Grms X,Y,Z axis w/ SSD, 40G peak acceleration (11 m sec. duration), operation w/ SSD
Dimensioner 210 x 180 x 70 mm
Driftstemperatur -10 ~ 55 °C
Harddisk 1 x M.2 M-Key 2242/2280, 1 x 2.5” HDD/SSD
Hukommelse 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB
Input DC 9 ~ 36V (3-pin terminal block: V+, V-, GND)
Montering Wall-mount (standard) DIN-rail or VESA mount (optional w/ CTOS bracket)
Netværk 2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af), 1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus)
Porte 2 x RS232 (DB-9 male connectors), 2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (DB-9 male connector/ Switch via BIOS)
Udvidelser 1 x full mPCIe slot, 1 x M.2 B-Key 2242/3042/3052
USB 4 x USB 3.2 Gen2 (2 w/ independent full speed), 1 x USB 2.0 onboard for encryption dongle (Type A)
Video 1 x HDMI 2.0b, 1 x DisplayPort 1.4, 1 x DVI-D connector
Weight 3.7kg

Robust and stable industrial embedded PC with 11th Gen. Intel® Core ™ in CPU.
Can be supplied complete with CPU, RAM and SSD / HDD. Can be supplied with other configuration, contact sales.
Voltage supply is purchased separately
