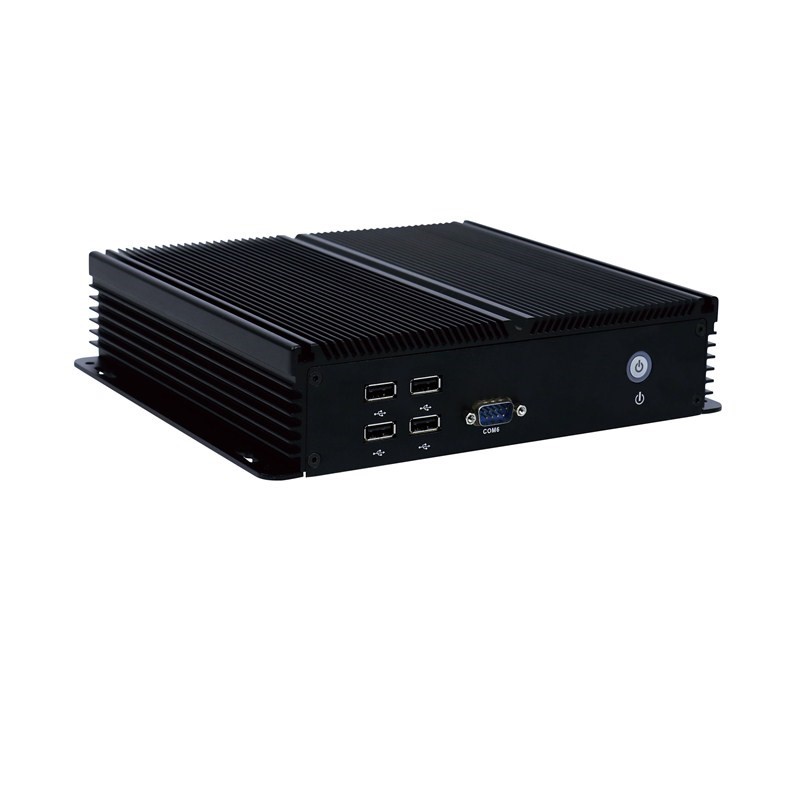

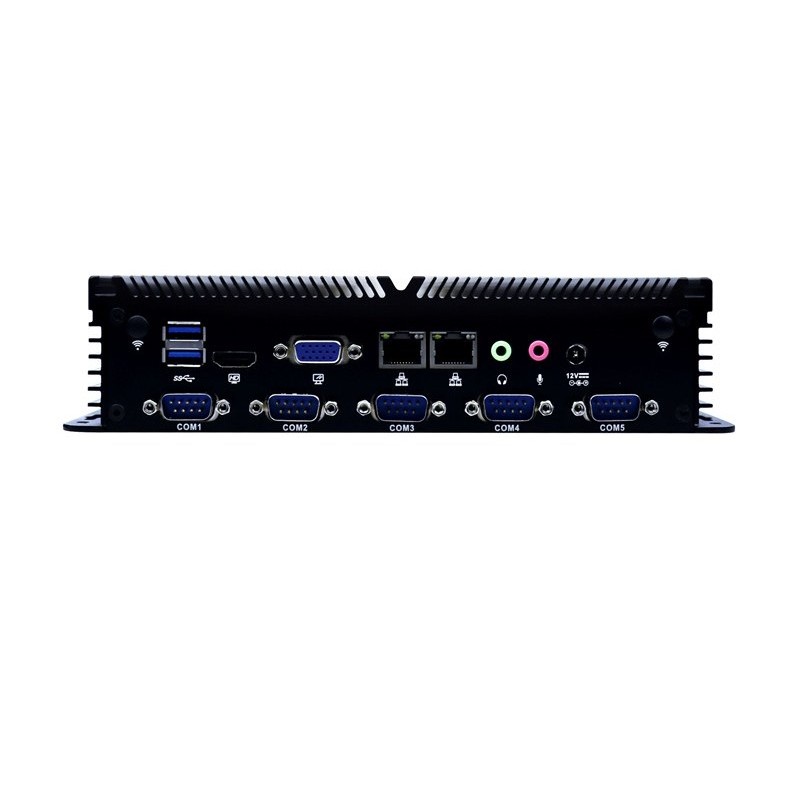

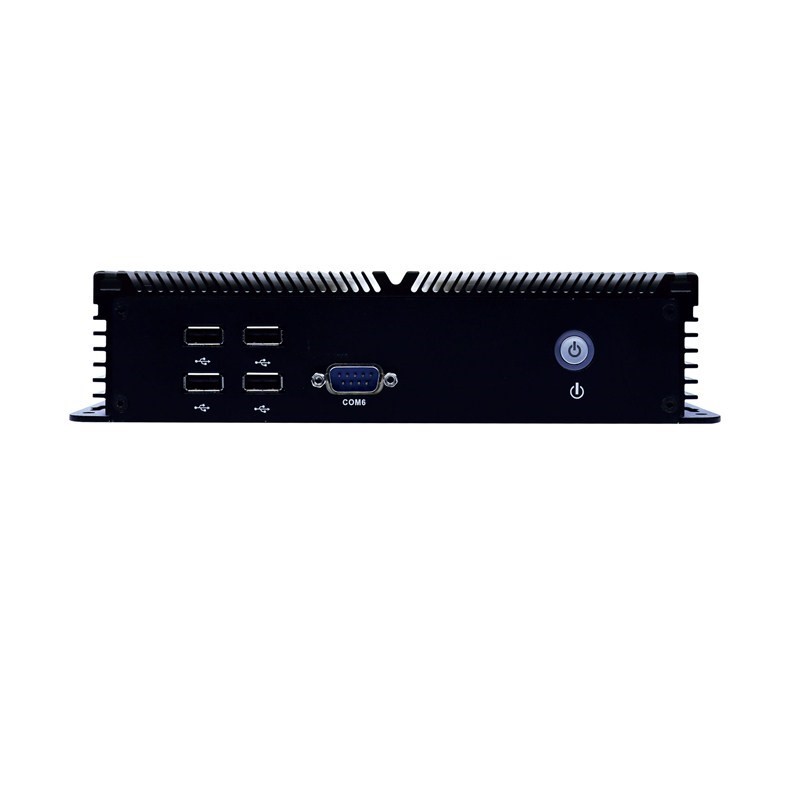

Embedded PC, Dual core 1.9Ghz, Intel core I5-4300u 6x RS232, 6x USB

Supports Windows 7, 8, 10, Linux
Adopt Intel® Core I5-4300u Dual Core 1.9Ghz
8GB RAM
128GB Msata
Aluminum cooler for fast heat dissipation
1x Mini-PCIE embedded SIM slot
1 x Mini-PCIE support MSATA, (optional: GPIO and LPT port is optional)
2 x USB3.0 (Back side)
4 x USB2.0 (Front) < br> 2 x RJ-45 LAN
1 x VGA
1 x HD
6 x COM (COM3 optional: RS232 / 422/485)
1 x Mic
1 x Power supply 12V DC
optional: Wi-Fi / 3G / 4G
-10 ~ 60 ° C

EPC-I5-5COM
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order PC.
Other models and solutions can be offered.

Check the Sales Department for further information

CPU
Adopt Intel® Core I5-4300u Dual Core 1.9Ghz
Dimensioner
214 x 200 x 54 mm
Driftstemperatur
-10 ~ 60 °C
Forsyning
DC-IN 12V
Grafik
Integrated Intel HD graphic card 4400
Netværk
2 x Intel i211-AT 10/100/1000M Lan
OS SUPPORT
Windows 7, 8, 10, Linux
Porte
6 x COM
Skærm
1 x VGA, 1 x HD
Storage
Support 1 x MSATA, 1 x 2.5"SSD/HDD (2 x2.5" HDD optional)
USB
2 x USB3.0, 4 x USB2.0
WiFi/WLAN
Optional
