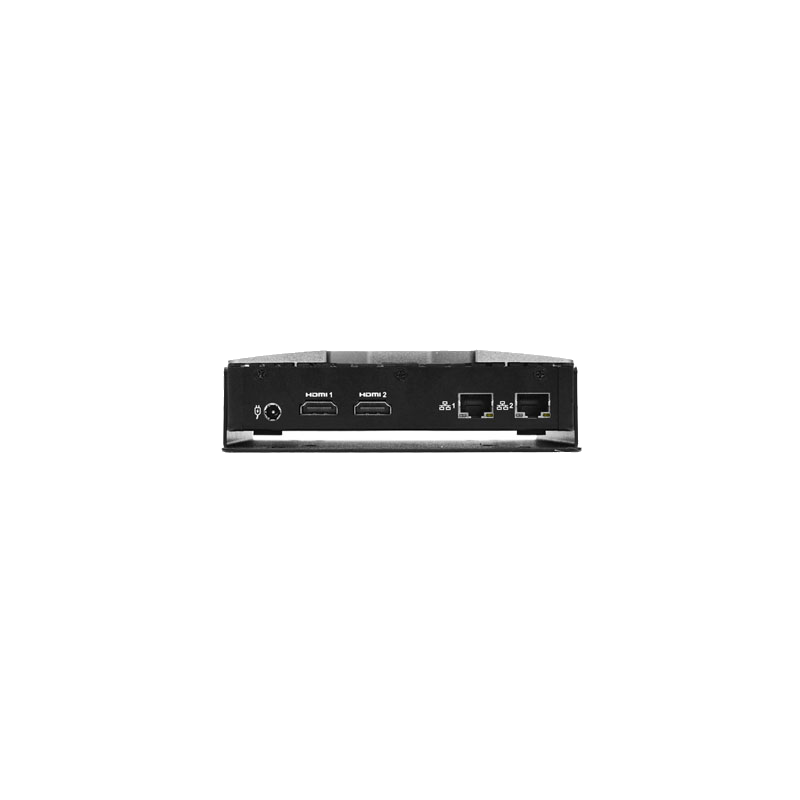

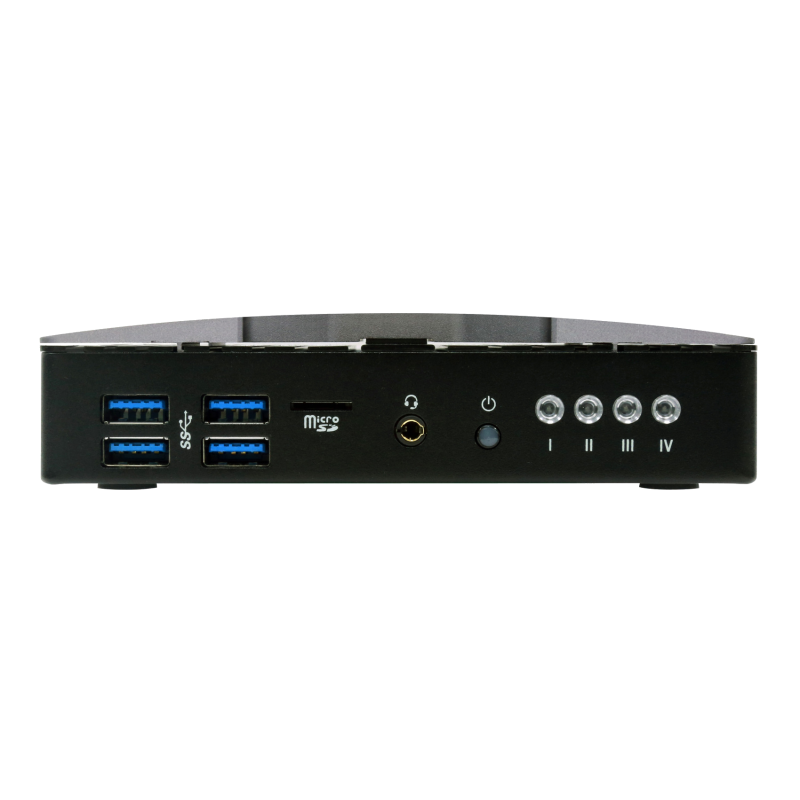

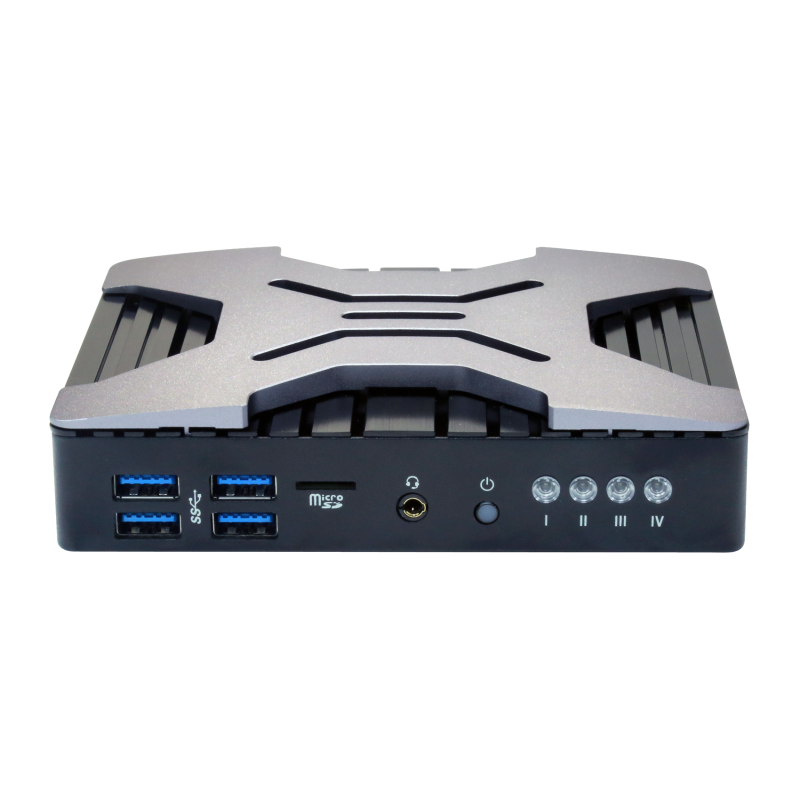

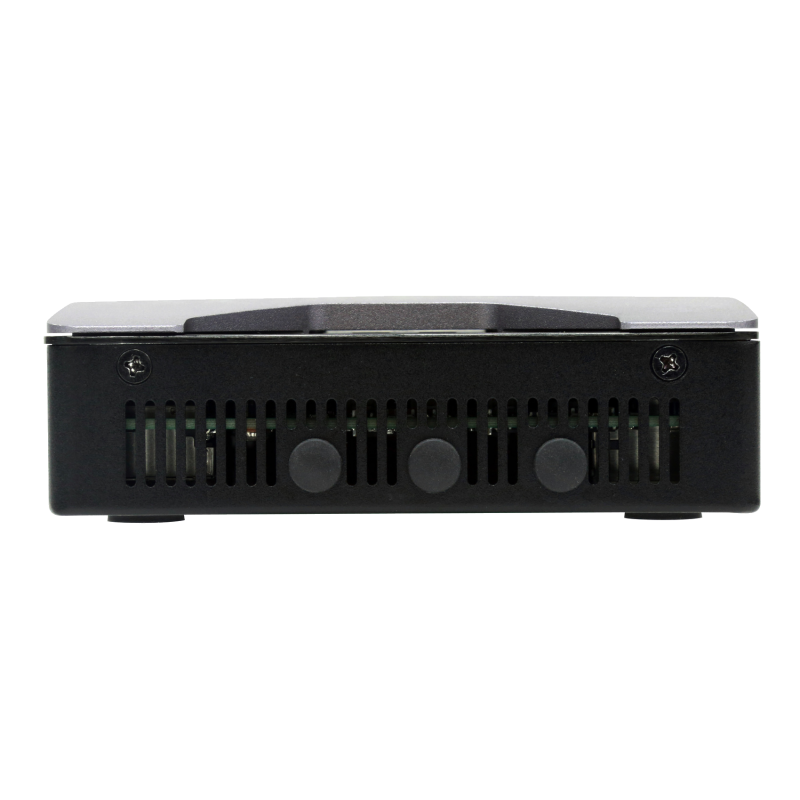

Fanless embedded PC with Intel® Braswell SoC Processor, 1.6GHz, with HDMI

Intel® Celeron® N3060, 1.6GHz
2 x 204 pin DDR3L SO-DIMM Socket.
1600MHz SDRAM up to 8GB (2GB DDR3L SO-DIMM pre-installed)
Chipset: SoC Integrated, Intel® HD Graphics 400
Hard drive: mSATA, MicroSD socket
1 x Serial ATA port with 600MB / s HDD transfer rate
2 x Realtek 8111HS GbE controllers (LAN chipset)
1 x Micro -B RS232 half-duplex
4 x USB 3.0 ports, 1 x Micro-B USB 2.0, 2 x RJ-45 ports for GbE
2 x HDMI, Max. resolution: 3840 x 2160
1 x 3.5mm stereo headphone jack
Supports 2/4 / 5.1 / 7.1 channel configurations via HDMI
Operating temperature: -10 ~ 55 ° C, Moisture: 0% -85% RH @ 55 ° C
0.86 KG, 141 x 34.8 x 107.6
OS Support: Windows® 7 / Windows® 10 / Linux (Kernel: 3.1X)

Call +45 56 66 20 20 for price
Quantity
Physically in stock
ADD TO CART
Product number EPC-BW-2ETH2HDMI
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Soldered onboard Intel® Celeron® N3060, 1.6GHz
Chipset SoC Integrated
Operating Temp. -10 ~ 55 °C
Chok/Vibration 3 Grms/5~500Hz/random operation, Operating 50G (11ms), Non-operating 80G with eMMC
Grafik Intel® HD Graphics 400
Harddisk 1 x mSATA, 1 x MicroSD socket,
Hukommelse 2 x 204-pin DDR3L SO-DIMM socket, supporting 1600MHz SDRAM up to 8GB (2GB DDR3L SO-DIMM pre-installed)
I/O 1 x Micro-B RS232 half-duplex, 4 x USB 3.0 ports, 1 x Micro-B USB 2.0, 2 x RJ-45 ports for GbE, 2 x HDMI, 1 x 3.5mm stereo headphone jack, 1 x Half-size Mini-PCIe slot
Luftfugtighed 0%-85% RH @ 55 °C (non-condensing)
Compositions Aluminum alloy
Montering Support VESA-mount
OS SUPPORT Windows® 7 / Windows® 10 / Linux (Kernel: 3.1X)
Strømforbrug Max. 15W (w/o I/O card)
Strømforsyning DC 19V input
Watchdog 1~255 levels reset
Weight 0.86Kg

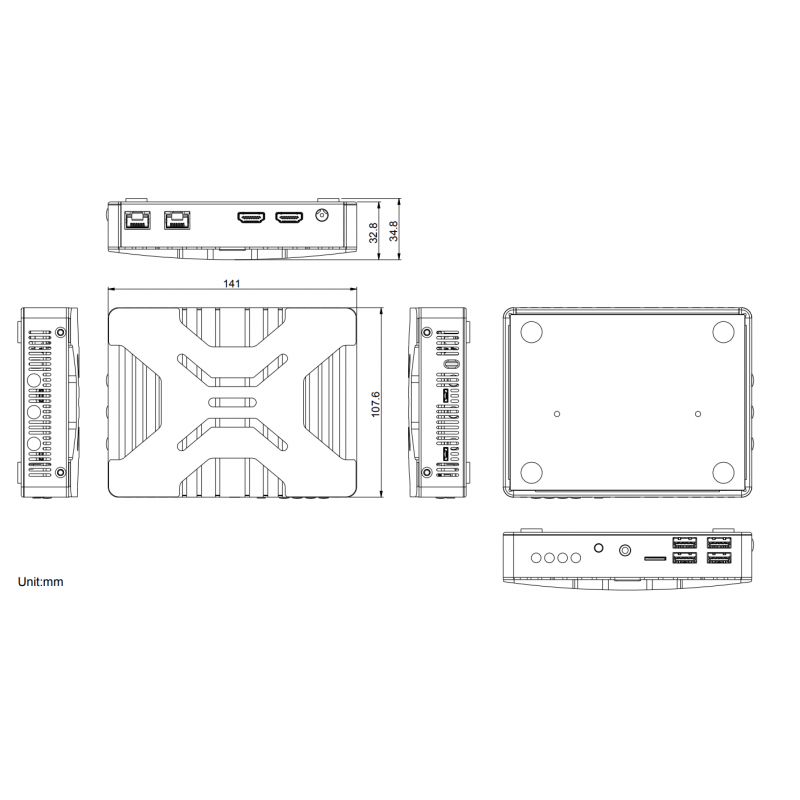

Dimensioner 141 x 34.8 x 107.6mm
Certifications CE, FCC Class B

Kan fås med EU plug eller US plug
