CPU support Intel® 9th/ 8th-Gen
Up to 64 GB DDR4 2666/ 2400 SDRAM
2x SATA, 1 x M.2 NVMe, 1x full-size mSATA
Working temp. -25°C ~ 60°C
1x PCIe x16 Gen3, 1x full-size mPCIe
6x Gigabit Ethernet ports
4x USB 3.1 Gen2, 4x USB 3.1 Gen1
1x VGA, 1x DVI-D, 1x DisplayPort
8V to 35V DC input

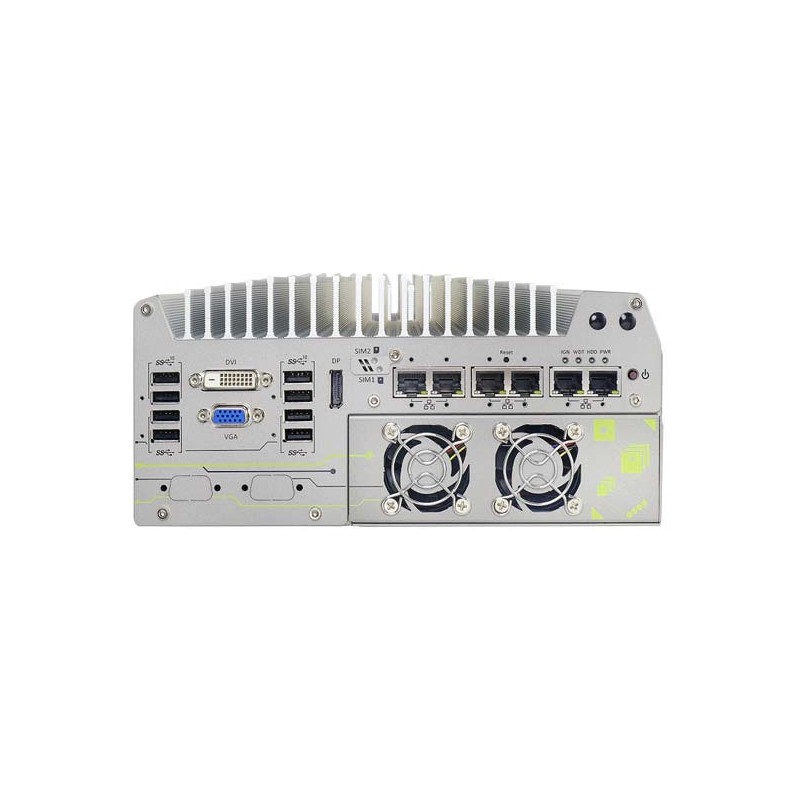

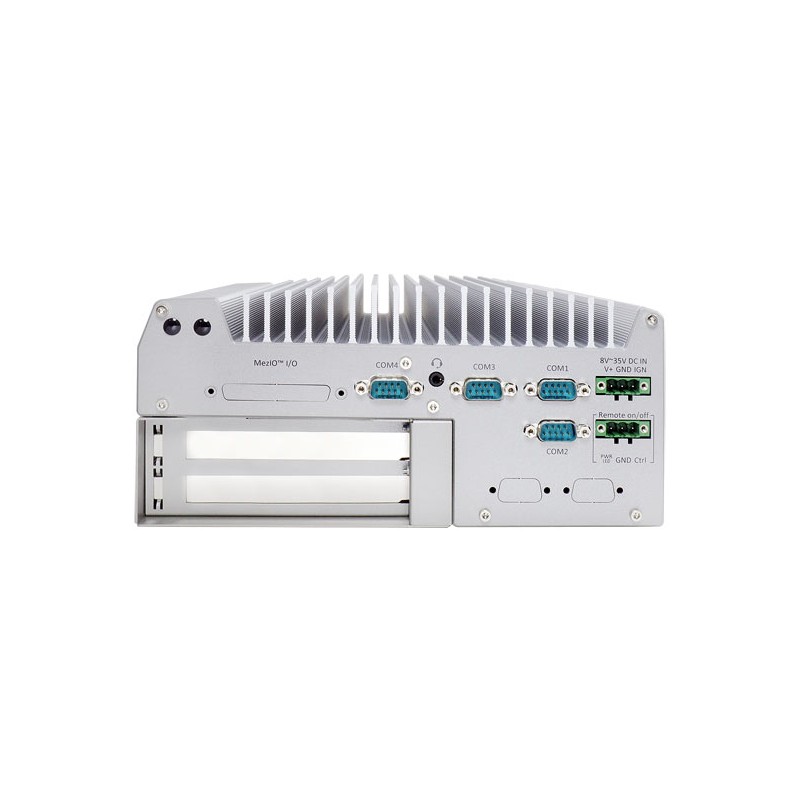

EPC IXGEN9 + is a robust GPU-supported embedded computer.
Designed for modern machine learning applications, such as self-driving cars, Italy face recognition and machine vision. It supports up to a 120W GPU cards
PC is basseret on Intel® 9th / 8th-generation Coffee Lake Core ™ 8/6-core CPU, Spain that offers up to 50% CPU performance improvement compared to previous generations.
With ingenious ventilation mechanism may EPC IXGEN9 + effectively dissipate the heat generated by the GPU. Guided air flow from the intake to exhaust can be of powerful blowers with smart fan control, provide a 120W GPU to function at 60 ° C ambient temperature under 100% GPU load.
Intel® 6th-Gen Core™ i7/i5/i3
Kompakt 221x173x76mm
3x GbE og 4x USB 3.0
2x RS-232/ 422/ 485 og 2x RS-232
VGA + DVI
1x3.5" HDD eller 2.5" HDD/ SSD
8xDI/DO
Intel Atom® x5-E3940 on board
204-pin DDR3L-1866 SO-DIMM for up to 8 GB of memory
Supports 2 GbE LAN
3 COM
6 USB
Supports one 2.5” SATA drive bay and mSATA
Trusted Platform Module (TPM) 2.0
2 PCI Express Mini Card slots and 1 SIM slot
-40°C to +60°C operating temperature range
Hailo-8™ AI acceleration modules compatible
Additional accessories: Must be ordered alongside: Wall mounting kit, VESA mounting kit, DIN rail kit
OS support: Win10 IoT, Linux
9 to 36 VDC
Pentium® Processor N4200
1x DDR3L SO-DIMM max. up to 8GB
Triple Independent Display (1x CDS, 1x VGA, 1x DisplayPort)
1x 2.5” SATA Drive Bay, 1x mSATA Socket
Rich I/O (2x LAN, 4x USB, 4x COM, 8x Isolated DIO)
2x Full Size Mini-PCIe Expansion Socket
Supports 2x PoE+ Function (with optional module)
Supports Ignition Sensing Function (IGN) (with optional module)
Supports CDS Technology for Convertible Panel PC
Built-in Two 2W Internal Speakers
9~48VDC via 3-pin Terminal Block
Cost effective with fanless and cableless design
Intel® Celeron® processor N3160 (1.6 GHz / 4-core)
2 x RS-232/422/485 ports
4 x USB ports
2 x isolated 10/100/1000 Mbps Ethernet ports
1 x PoE PD compatible with IEEE 802.3at standard LAN 1
1 x DIO port
2 x PCI Express Mini Card slots (3G / GPRS & Wi-Fi Fi)
1 x mSATA & amp; SATA SSD (or HDD)
12 to 24 VDC
Weight: 1.50 KG
Dimensions: 48 x 110 x 155 mm
DIN rail and wall mounting
OS support: Windows® 7 Embedded, Windows® 8 Embedded, Windows® 8, Windows® 10, Linux support package
