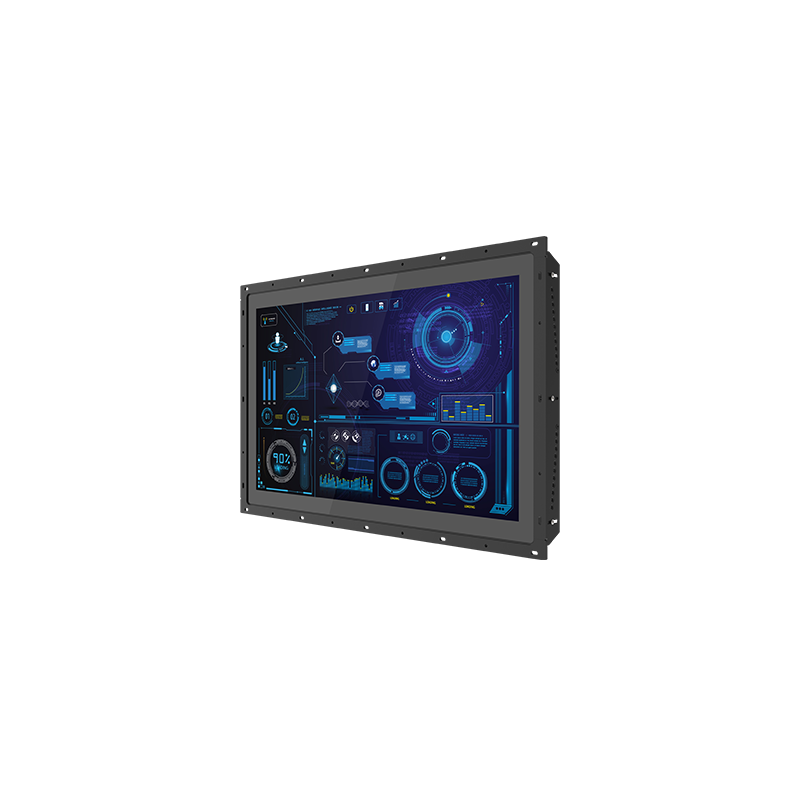

21.5" TFT Open Frame Industrial Monitor IP65 front, Projected Touch, Flat mount, Vesa, Rack Can be made as a panel PC
Can be made as a monitor or panel PC, contact us regarding opportunities.
Projected capacitive touch
HDMI, Displayport, VGA input
Dimension (W x D x H) 550 x 343.7 x 63.3
Weight 7.16 kg
One piece and slim frame design

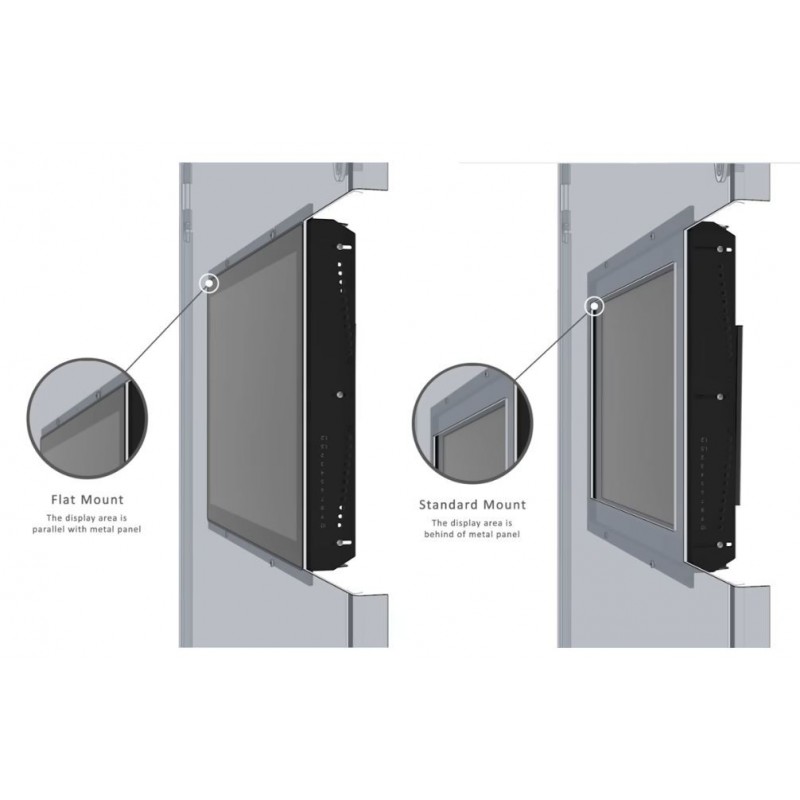

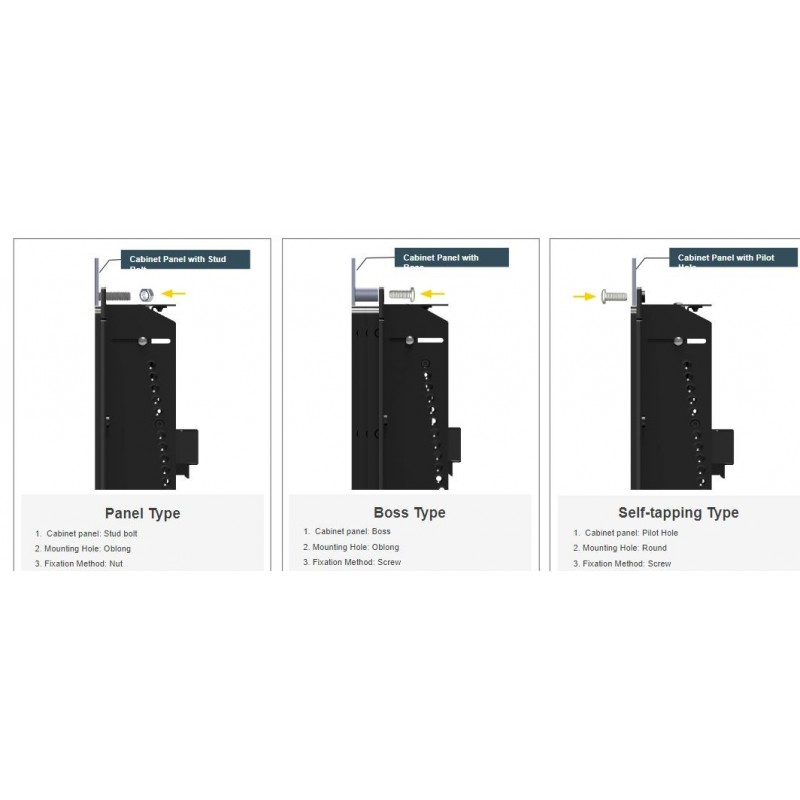

Mounting flat / Standard / VESA / Rack Mount

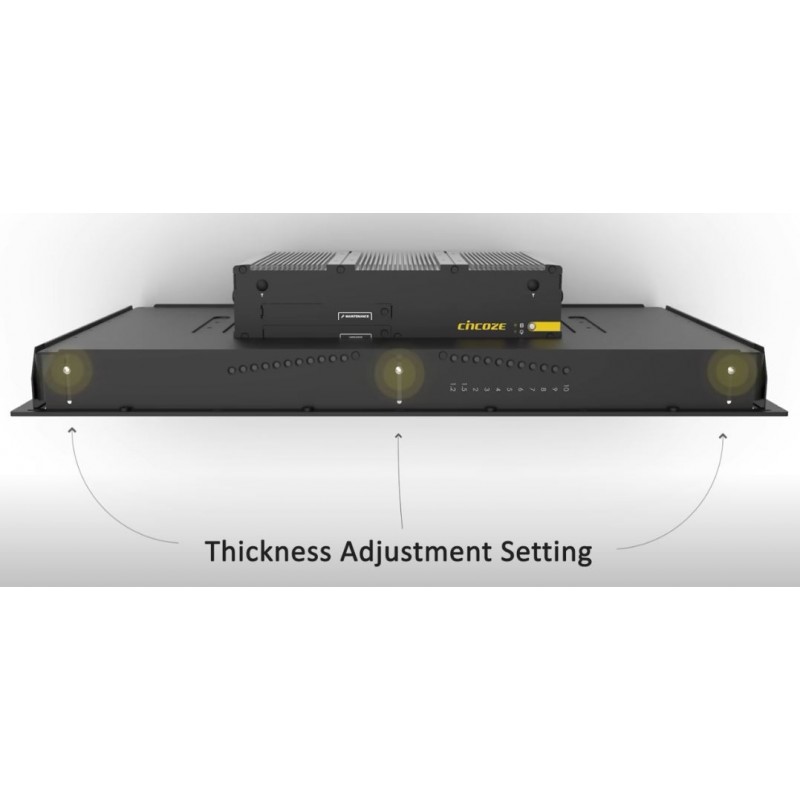

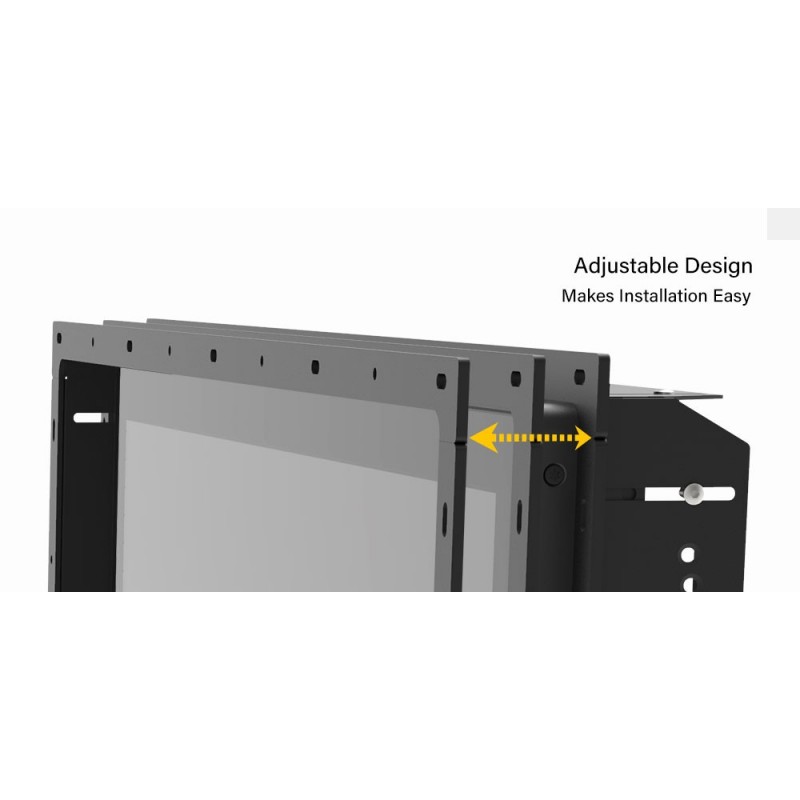

Pre-installed mounting bracket with adjustable design (supports 11 different adjustment steps)
Front panel IP65 compliant * According to IEC60529
Operating temperature 0°C to 70°C
Power input 9~48VDC
EMC CE, UKCA, FCC, ICES-003 Class A
UL, cUL 62368-1 (pending)
1,880.26 €
Excl. VAT
Quantity
Physically in stock
close
Specifications
| Approval | CE, FCC EMC |
|---|---|
| Dimensioner | 500x343.7x63.3 (W x D x H) mm |
| Driftstemperatur | 0–70°C |
| Forsyning | Power Input Voltage 9~48VDC |
| Indgang | VGA, HDMI, Displayport |
| IP-Tæthed | IP65 front bezel |
| LCD | 21.5"TFT 1920x1080 |
| Montering | Flast/Standard/VESA/RACK MOUNT |
| Mål og vægt | 7.16Kg |
| Pixels | pixel pitch 0.24825 (H) x 0.24825 (V) mm |
| Touch | P-CAP, (contact us for resistive touch solution) |
| Nits | 300 cd/m2 |

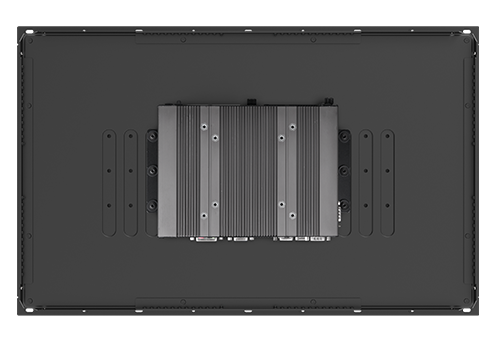

New openframe solution. Can be used as an openframe TFT screen solution or a Panel PC solution from Atom for the latest i7 CPU solution.
The open fram display itself can be mounted with a monitor module with HDMI, Displayport and VGA with OSD, with support for USB or RS232 touch. Supply voltage is 9 to 48Vdc

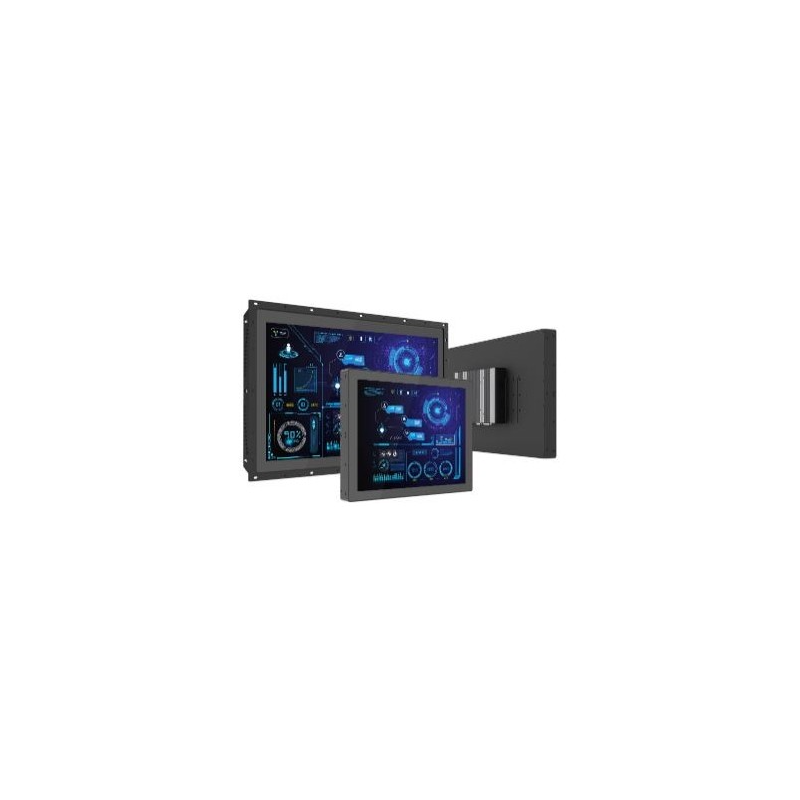

Supplied in 15" or 21.5" screen with touch, IP65 sealed front, which ensures a waterproof and dustproof front.
