SUB-D DB37 male-female cable, gray, 1.8m
Forlængerkabel med DB37 han til DB37 hun stik
AWG28
Guldbelagte stik

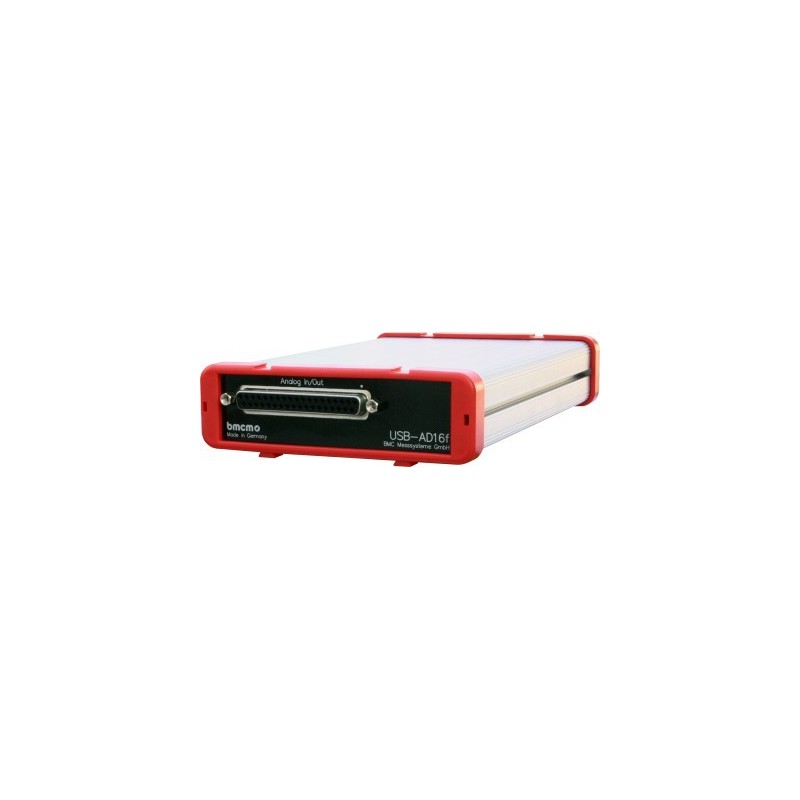

Multi I / O module for measurement and with USB port
16 Analog inputs, +/- 10V, +/- 5V, +/- 2V, +/- 1V
16 bit resolution
frequency Up to 250kHz Total Samplings-Rate
2 Analog Exit +/- 10 Volt
4 Digital Entrance TTL / CMOS
4 Digital Outputs TTL / CMOS
1 Counter Input, 16 Bit
Voltage Variety from USB The port
Buy DAQ Software: NEXTVIEW
Dim: 167 x 113 x 30 mm
Measurement and control. Extremely powerful. Exactly measurement of input and get output signals with USB-AD16S16. High performance USB data arranged in aluminum house of high technical. Is especially suitable for dynamic applications.
250 kHz Total sampling speed so that even the smallest peaks of high frequency signals are registered. The measurement range is selected via software for each channel separately.
Galvanic isolation of the analog channels, then the DAQ system and the PC are perfectly protected.
Digital modes are recorded or set to 4 digital inputs and outputs each. Digital inputs are sampled time synchronously with the analog inputs. The extra counter inlet is galvanically isolated.
Plug Play.
widely supported: The data collection system can be used under Windows® XP / 7/8/10 as as well as under Mac OS X, free BSD and Linux.
the complete Software for installation and programming is included for free.
DAQ software can be purchased - NEXTVIEW®. Try for free. The software for data collection and analysis. A fully functional 14-day sample is included in delivery to directly test the functionality of USB-ad16f.
Forlængerkabel med DB37 han til DB37 hun stik
AWG28
Guldbelagte stik
Terminal card with screw terminals
DB37 male / female cable of 1.8m included
For DIN rail mounting
103 x 85 x 50 mm (W x L)
8 x analog inputs - Sample Rate 25 times per second
8 x input - Single ended: ± 1.28V, ± 2.56V, ± 5,12V, ± 10,24V
input 1 - 4 Can be 4-20mA
Web server for configuration and remote monitoring
Permissions: Administrator, Manager, User
Tasks
50 schedule planned
50 Conditional
20 overroubed
Email Alarms by Defined Terms
Supports Encrypted Email Servers, such as Gmail
RTC with NTP server synchronization
No software Required
Basic Script Support for Advanced Flexibility
Logging - Graph Presentation
static or DHCP IP Address Configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm
5 kanals analog input
2 kanals analog output
2 kanals digital input
2 kanals digital output
Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Dry contact input
Input to Gnd = High (ON)
Input open = Low (OFF)
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42
