16 x voltage measurement, +/-10volt,14bit, 1 x +/- 5V Analog out, 12bit, 8 x DI / DO, Counter. connected USB

Measurement and control via USB port
16 x analog inputs 14bit, +/- 10V
Total Sample speed: 20KS / s
1 x Analog Exit 12bit, +/- 5V
8 X digital inputs TTL / CMOS
8 x digital outputs TTL / CMOS
1 x 16bit counter entrance
DAQ Software: Purchase NextView
Goal: 167 x 113 x 30 mm
Power supplied from the USB port

USB-AD16S14
2,400.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

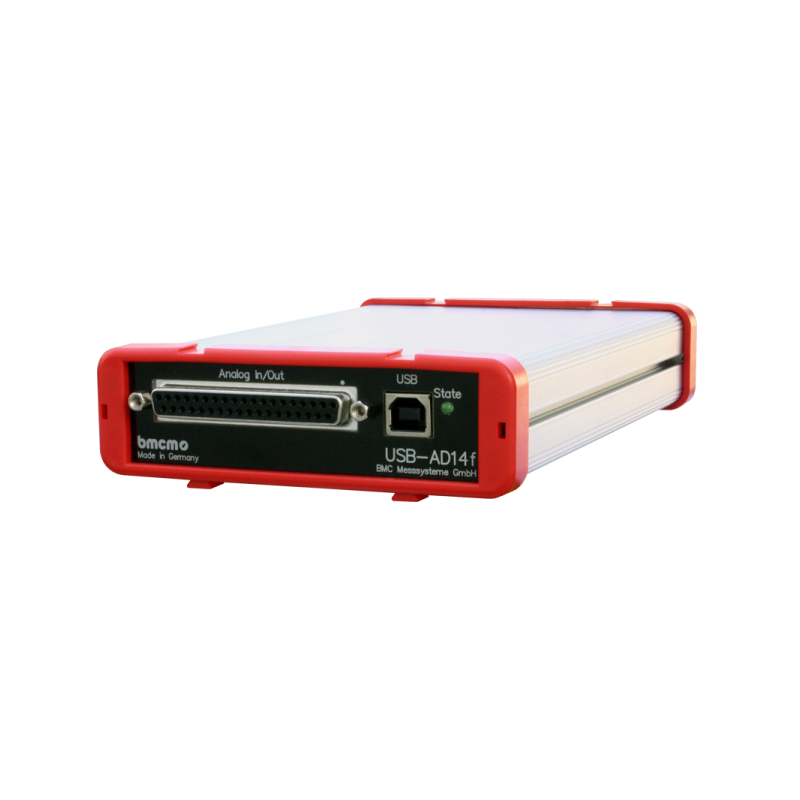

Measurement and control. Extremely powerful. Exactly measurement of input and get output signals with USB-AD16S14. High performance USB data arranged in aluminum house of high technical. Is particularly suitable for dynamic applications.
20 kHz Total sampling speed so that even the smallest peaks of high frequency signals are registered. The measurement range is selected via software for each channel separately.
Galvanic isolation of the analog channels, then the DAQ system and the PC are perfectly protected.
Digital modes are recorded or set to 4 digital inputs and outputs each. Digital inputs are sampled time synchronously with the analog inputs. The extra counter inlet is galvanically isolated.
Plug Play.
widely supported: The data collection system can be used under Windows® XP / 7/8/10 as as well as under Mac OS X, free BSD and Linux.
the complete Software for installation and programming is included for free.
DAQ software can be purchased - NEXTVIEW®. Try for free. The software for data collection and analysis. A fully functional 14-day sample is included in delivery to directly test the functionality of USB-AD14F.

Digital I/O
8 TTL indgange og 8 TTL udgange
Hastighed
Op til 20.000 dataoverførsler per sekund samlet; deles mellem indgangene. Hastigheden er systemafhængig.
Indgang
16 stk. ”Single ended”
Indgangsimpedans
1 MΩ
Kabel
USB 2.0 og tidligere, 1,1 m langt
Måleområde
±10 V
Nøjagtighed
±5 mV (Abs.)
Opløsning
14 bit (2,5 mV/bit)
Software
Leveres med "Active-X" drivere til Windows XP, Win7 og Win8 samt demo­software, der beskriver brugen af ”Active-X” driveren til Visual Basic, Delphi og C++. Software til ”live” målinger medfølger
Stik

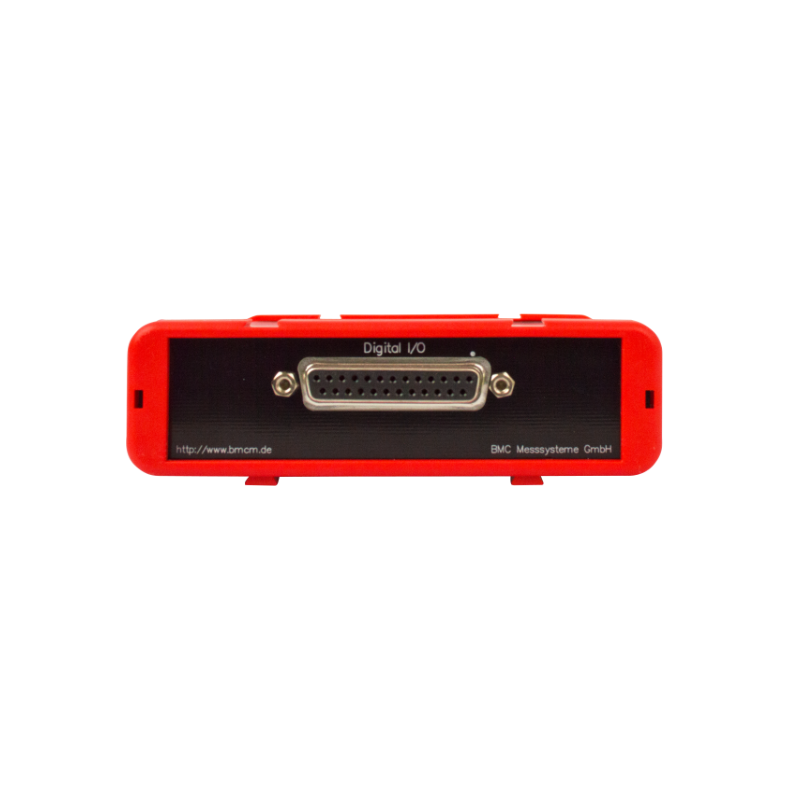

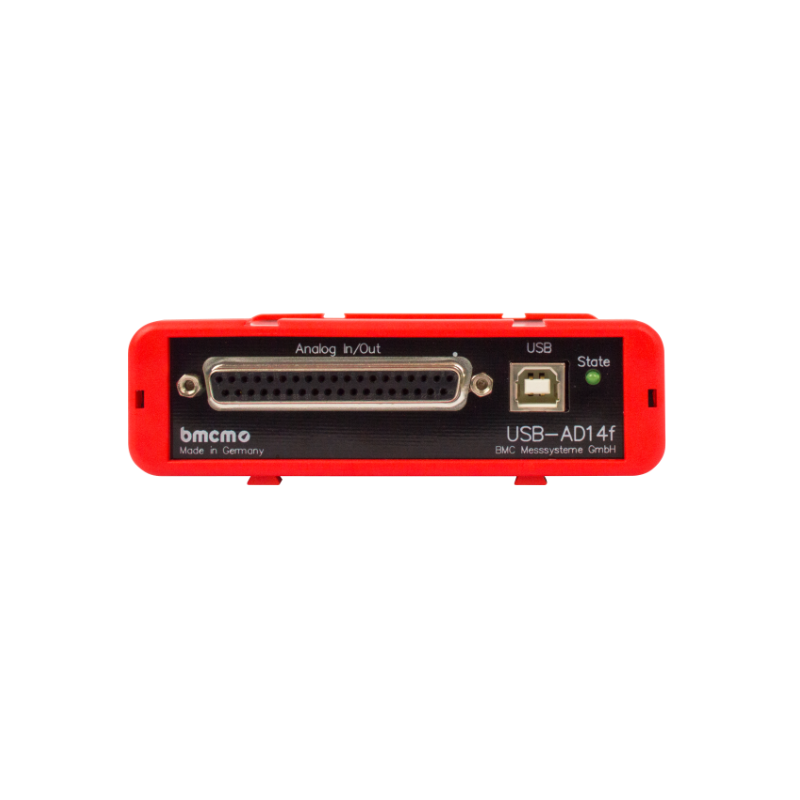

Analoge ind- og udgange via DB37 hunstik, digitale via DB25 hunstik
Strømforbrug
Typisk 100 mA - forsynes via USB porten
Udgange
1 stk.12 bit ”Single ended”
