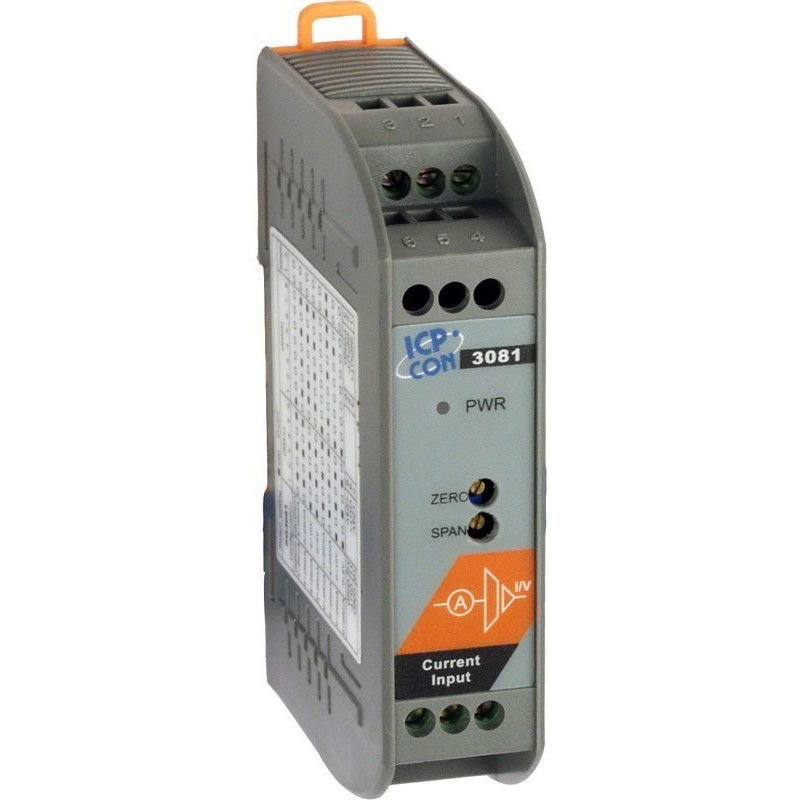

Converter 0-20mA to volt. Isolated DC Current Input/Output Modul

Isoleret DC Current Input/Output Modul

3- vejs (power/input/output) isolation (1000 VDC)
Udvidet drifttemperatur (-25 ~ +75°C)
Til DINskinne montering
Input og output-stik på den modsatte side

CNV-MA-V-I
117.17 GBP
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Specifications

Analog Input
Input Channels    1
Input Type (Unipolar)    0~20mA, 4~20mA
Input impedance    250Ω
Input bandwidth    1KHz
Analog Output
Channels    1
Voltage Output (Unipolar)    0~5V,0~10V
Voltage Output impedance    <50Ω(10mA max)
Current Output(Source)    0 ~ 20mA, 4 ~ 20mA
Current load resistor    0~500Ω(Source)
Other specifications
Three-way isolation    1000Vdc
Accuracy    ±0.1% of full range
Response time    <10ms
Weight    95.5 gram
LED Display
1 LED as Power/ Communication indicator
Power
Input    +10 to +30 Vdc
Power Consumption    1.61W(Voltage Output) ,2.10W(Current Output)
Environment
Operating temperature    -25°C to 75 °C
Storage temperature    -30°C to 75 °C
Humidity    5 to 95%, non-condensing

Driftstemperatur
-25 °C ~ 75 °C
Forsyning
Input +10 ~ +30 VDC Power Consumption 1.61 W(Voltage Output), 2.10 W(Current Output)
Indgang
Input Channels 1 Input Type (Unipolar) 0 ~ 20 mA, 4 ~ 20 mA Input impedance 250 Ω Input bandwidth 1KHz
Isolation
Three-way isolation 1000 VDC
