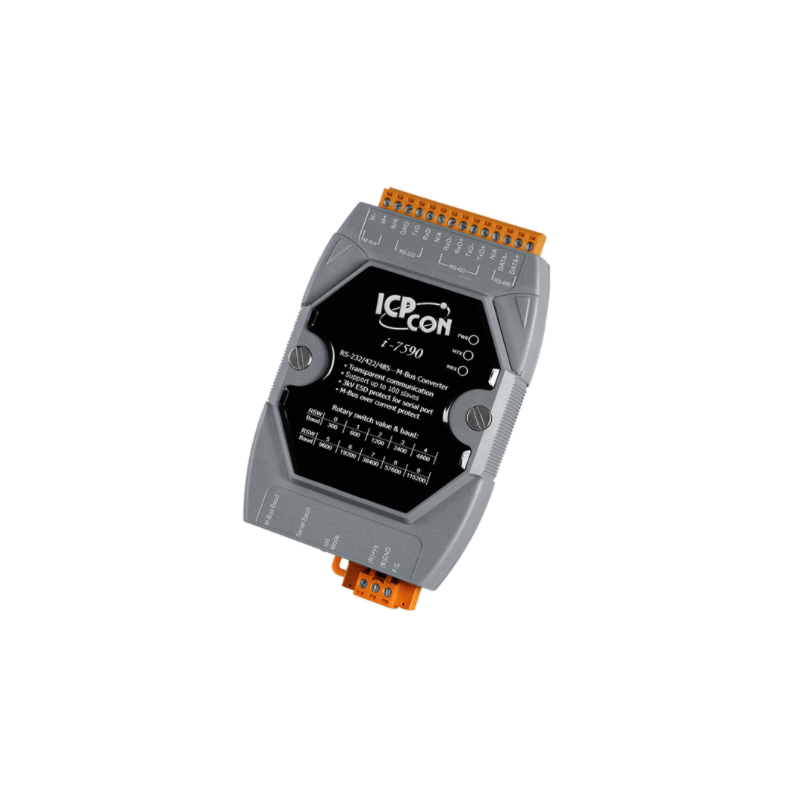

RS485 / RS422 / RS232 converter for Meter-Bus meters, actuators, etc.
Supports up to 100 Meter-Bus meters (slaves)
Selecting the serial port, only one can be selected to be active
2 x Baud rate (M-bus and COM port can be selected at different speeds)
Baud rate: 300 to 115,200 bps
Transparant data - no protocol conversion
M-bus connection is 2-wire , max. 350meter.

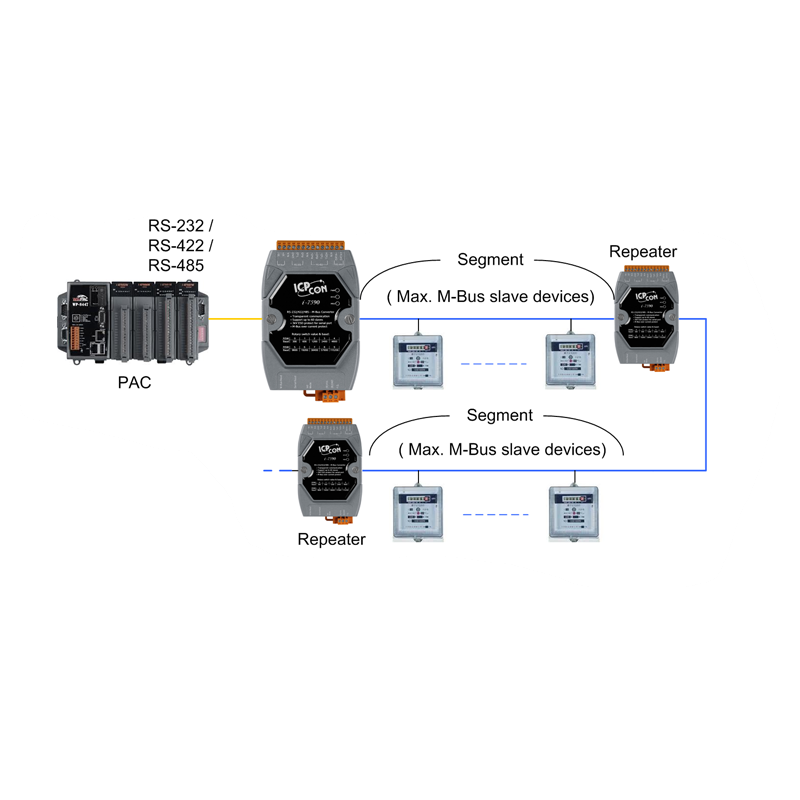

larger distance up to 5km requires a number of M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm | Removable terminal blocks
Operating temperature: -25 - + 75 ° C
DIN bracket
Robust plastic housing

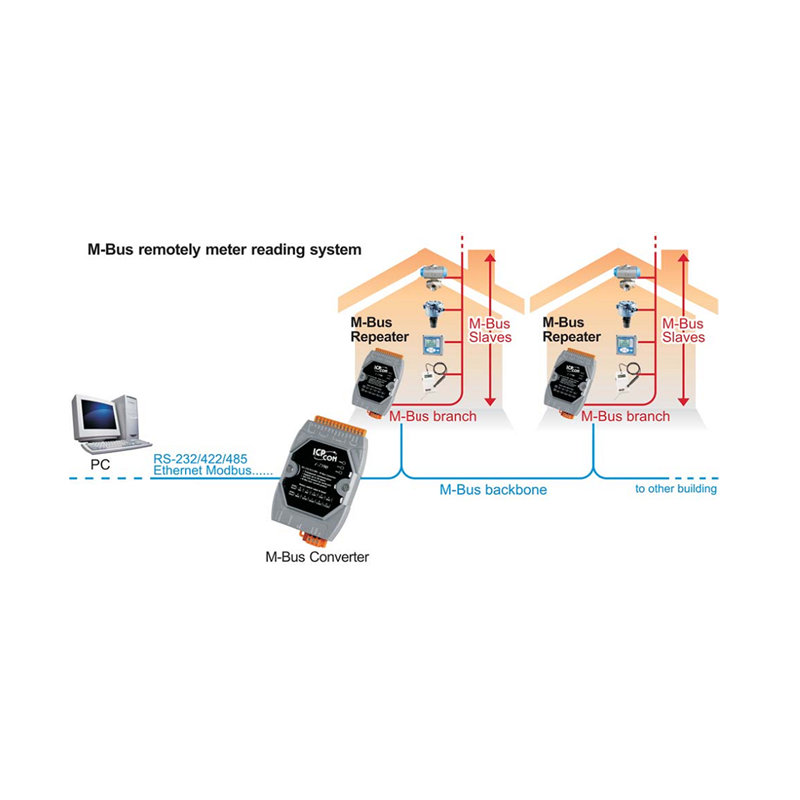

M-Bus ( "Meter-Bus") is a European standard for remote reading of gas meters, heat meters and other electricity meters. This bus meets the special requirements for remote or battery-powered systems, including consumption device sensors, various sensors and actuators. When incorporated into a network system, supplying the meters the measured data to a common MASTER, for example, can be a PLC, PC or handheld computer connected periodically to read all building meters. An alternative method to collect data centrally is to transmit meter readings via a modem.

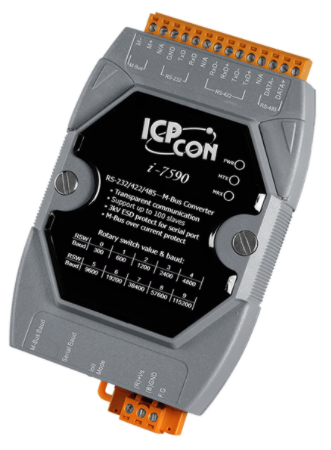

M485-MBUS-I is specially designed to convert 2-wire M-Bus bus, connected to the meters to a serial port (COM -gate). There is a choice of RS-232, RS-422 or RS-
485th Only one of the three can be selected to be COM connection to the master (PC, PLC, etc.). On M485-MBUS-I are two rotary switches to serial port and M-Bus port baud rate.
When communicating using M485-MBUS In transparent data communications (no protocol conversion). Through these two options, it is easy to communicate with ethver standard M-Bus slave (measuring device with M-BUS).
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
Intelligent Controller with Webserver
Logical functions such as: IF-THEN-ELSE
No programming. Just pick, click and finished
Supports: I / O module, counter, timer, email
Modbus / TCP protocol to SCADA software seamless integration
IEEE 802.3af compliant Power over Ethernet ( PoE)
1 x RJ45 - 10 / 100Mbit Ethernet
7 x Temperature sensor inputs (differential)
2/3-wire Pt100, Pt1000, Ni120, CU100, Cu1000
A/I resolution: 16bit
12 samples per second (Total)
Individual sensor configuration
Power supply: PoE or 12 - 48VDC / 4.5Watt
Modbus Master Controller for max. 32 Modbus RTU devices
1-wire bus for a maximum of 16 sensors (temp / moisture etc.)
Tasks:
50 schedule planned, 50 conditional
20 Terrul Terms
Email Alarms by defined conditions
Supports encrypted email servers, such as Gmail
RTC with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Robust cabinet for DIN rail / wall
Supply voltage: 9 - 28VDC
Pt.100 transmitter for your mounting
2 - 3-wire pt.100 sensor (red to 16, 2 x blue to 18 and A2
24v to 15 and 26
4 - 20 mA power Out of 16 and 26
4 - 20 mA The output gives power to PLC / instrument
Including PT100 feel with 80mm, Ø4MM Steel Tips
2 meter Flex cable
Supply voltage: 24VDC
Dim : H 74 x L 105 x B 22 mm
Network-based Digital I/O Module
2 x Power Relay 3 Amp, COM NO, NC
2 x Digital Input Optoisolated 0 - 26VDC
Memory for 50,000 Loggings
Logging of Input, Counter value
Relay state and Volt in
Basic script for advanced flexibility
Send email alarms (up to 8 email addresses)
Static or DHCP IP address
RTC with NTP server synchronization
No software required
XML, Modbus / TCP and Remote Services
On-site updates
Removable terminal connector
Supply voltage: POE or 9 - 28VDC
