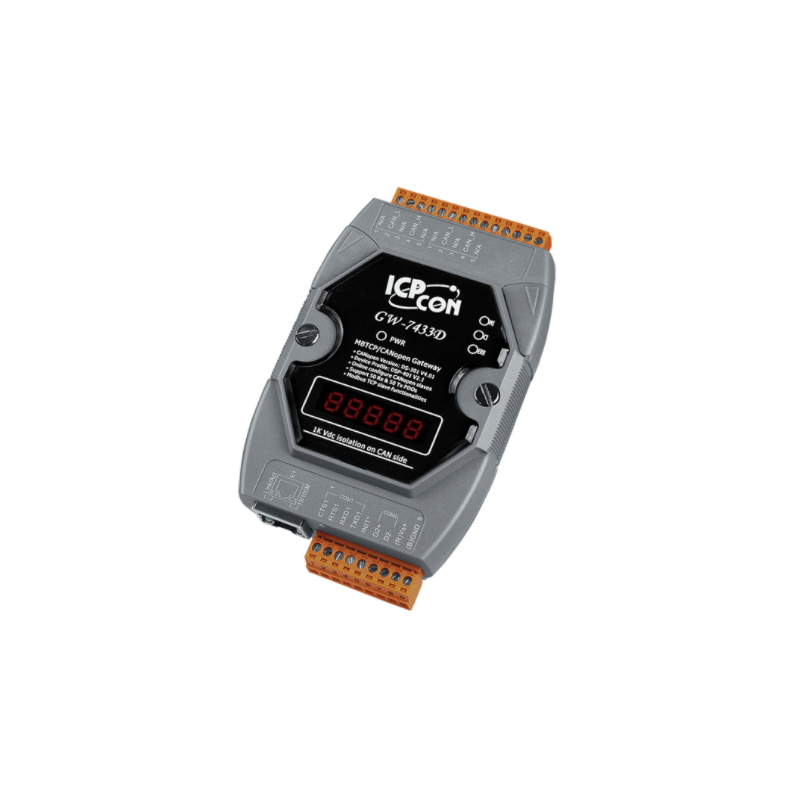

MODBUS TCP Server, RTU slave to CANopen Master, 3 in 1 Gateway, 1 x RJ45, 1 x COM, 1 x CAN, -25 - +75°C, 10 - 30VDC

Ethernet Gateway for CANopen networks and Modbus RTU
1 x RJ45 10 / 100Mbps
Protocol: Modbus TCP Server
1 x RS232 / RS485 port (non-isolated)
Modbus RTU slave
Baud rate: 1200-115200
1 x CAN port
CANopen
CAN Baud rate: 10K - 1M
Built-in 120 ohm termination
Dimensions: 122 x 72 x 33 mm
Supply voltage : 10 - 30VDC, 2,5Watt
Operating temperature: -25 - + 75 ° C
DIN bracket

Call +45 56 66 20 20 for price
Quantity
On the way in
LÆG I KURV
Product number M485-CAN-M-ETH-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Driftstemperatur -25 - +75°C
Forsyning 10 - 30VDC, 2.5Watt
Mål og vægt 122 x 72 x 33 mm
Netværk 1 x RJ45 10/100Mbit
Porte 1 x CAN bus - CiA 301 v4.02 1 x RS232 og 1 x RS485 (en kan vælges)
Skærm 5 cifret 7-segment LED display
Tilslutning Op til 10 CANopen slave-moduler, 120 kommandoer SDO/PDO

M485-CAN-M-ETH-in module that provides a communications transformation between CANopen protocol and Modbus / TCP RTU protocols. It solves a job-bo representation problem in connecting to an existing CANopen network with an Ethernet Master unit, as long as the Master Unit supports Modbus / TCP protocol.

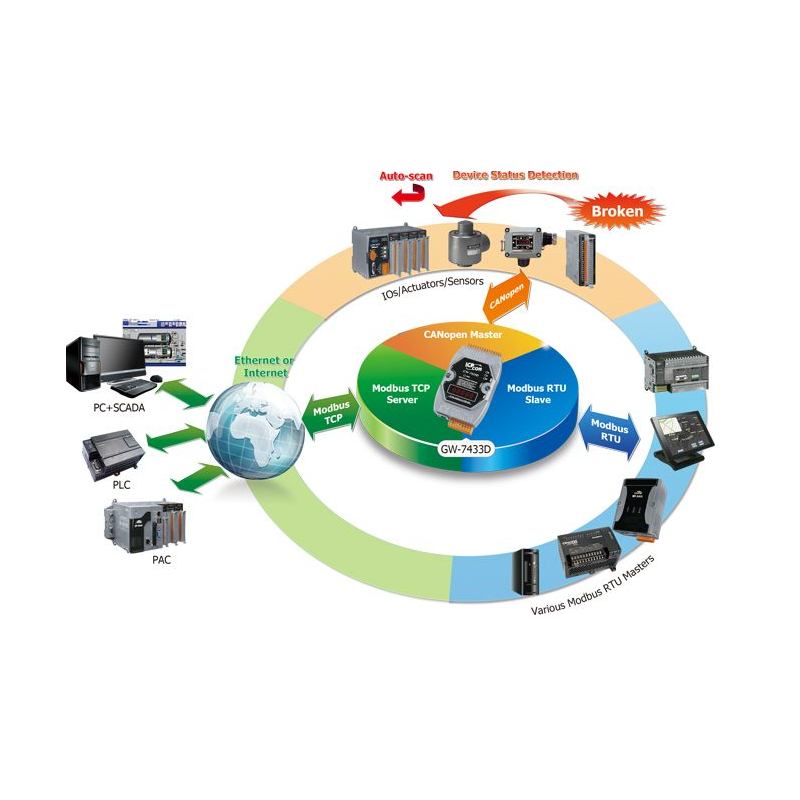

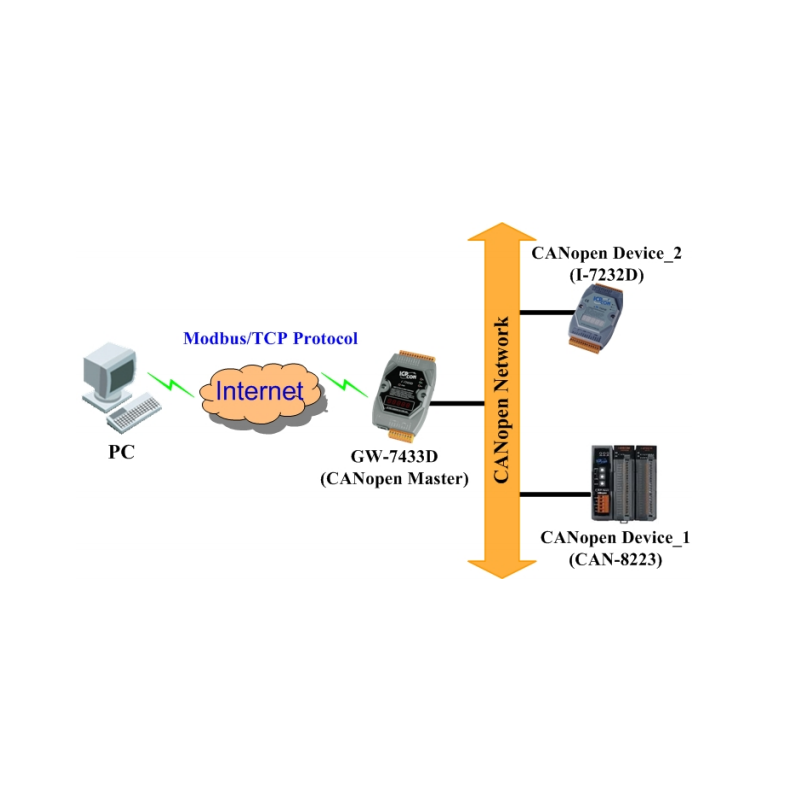

It allows the CANopen network to be linked to the Internet / Ethernet wherein the remote monitoring and control is achieved. For CANopen network is CAN-M485-M-ETH-In a CANopen master unit. It supports PDO and SDO functions for communication with the slave devices. From the view of Modbus / TCP counter bid / RTU network operates M485-CAN-M-ETH-In a Modbus / TCP server or Modbus / RTU slave role. It can receive commands from Modbus / TCP client or Modbus / RTU master and process the commands to reply or send the related CANopen data. We provide utilities for users to configure the parameters of the CANopen slaves M485-CAN-M-ETH-I. When M485-CAN-M-ETH-In starts up, gathers the necessary information from all slaves that are predefined in the M485-CAN-M-ETH-I using the utility. The figure on the page shows the application architecture for the CAN-M485-M-ETH-I.
