1-wire adapter box for K Thermopler element
acquire K-thermocoupler sensor
adapter with built-in DS18B20 Chip
interface is + 5VDC, GND, data
screw terminal for K-Thermoføler

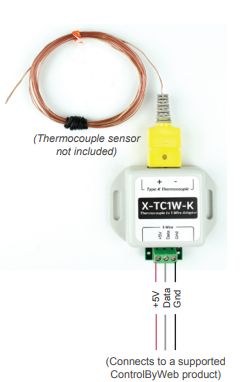

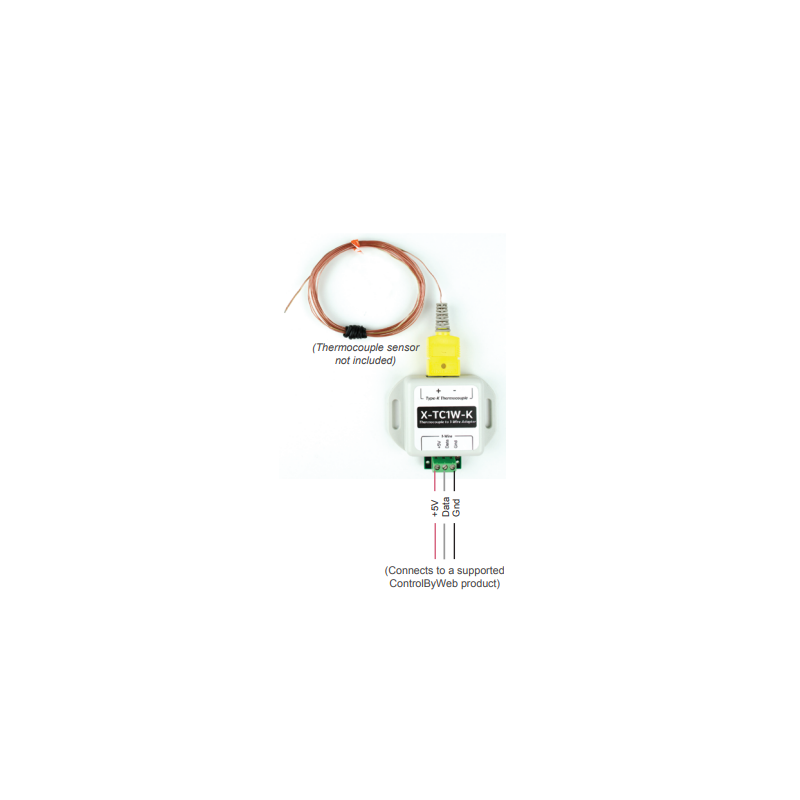

X-TC1W-K is a converter from K-thermocouple to 1-wire for use in a wide range of industrial applications. It works directly with the ControlByWeb modules X-400 series, X-600M and WebRelay Wireless modules with a 1-head bus (X-410, X-420, etc.), X-600m and WebRelay-Wireless modules. No power supply or additional software is required. Simply connect and configure using the built-in configuration and installation websites on the host device.
No additional software or power supply required. Simply connect and configure on one of our compatible products.
Applications
Use thermocouple sensors to monitor the temperature of freezers, ovens, incubators, generators - anywhere required precision and robust temperature sensors.
1 meter DIN skinne model TS-35, med en højde på 7,5mm
Supports Modbus TCP/UDP master and slave
Supports Modbus RTU/ASCII master and slave
Max. TCP connections (masters) per serial port: 32
1 x RJ45 Ethernet
3 x RS485 ports
Max. 254 notes
Max. baud rate: 115.2kbps
12 - 48VDC / 1.7 Watts
Dimensions: 95 x 52 x 27 mm
Temp: -25 - +75°C
Static IP or DHCP
Web server for configuration (HTTP)
Automatic RS-485 direction control
Terminal blocks
Cost-effective Modbus gateway
The indoor light-gauge, temperature and humidity sensor 3 in 1
For energy optimization and building automation systems
Measuring range of illumination: 0 to 20,000 lux
Temperature Range: -20 to + 60 ° C
humidity Measuring range: 0 to 100% RH
Supports DCON and Modbus RTU / TCP protocols
Supports MQTT protocol Ethernet interface
With RS485 / RJ45 Ethernet communications interface
Relay output - 6 Amp @ 250VAC
Power supply: PoE and 10 - 48VDC, ca. 2 Watt
Operating temperature: 0 - + 75 ° C
web configuration and firmware update via Ethernet
Ceiling Mounting
DIN rail
2 meters
Width: 3.5 cm
Height: 1.5 cm
TS35 Standard
Steel
